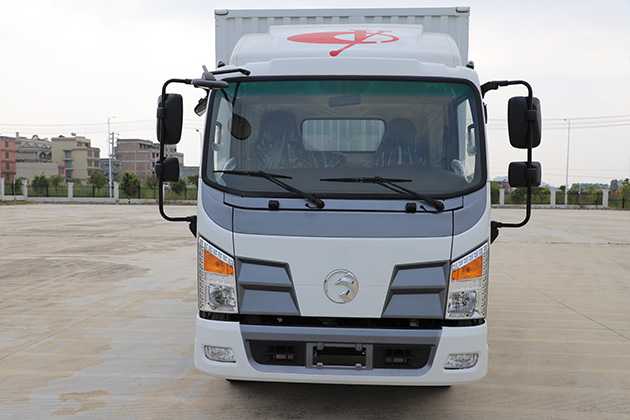

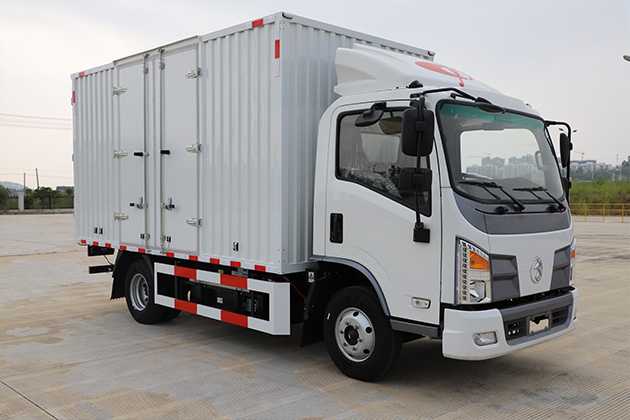

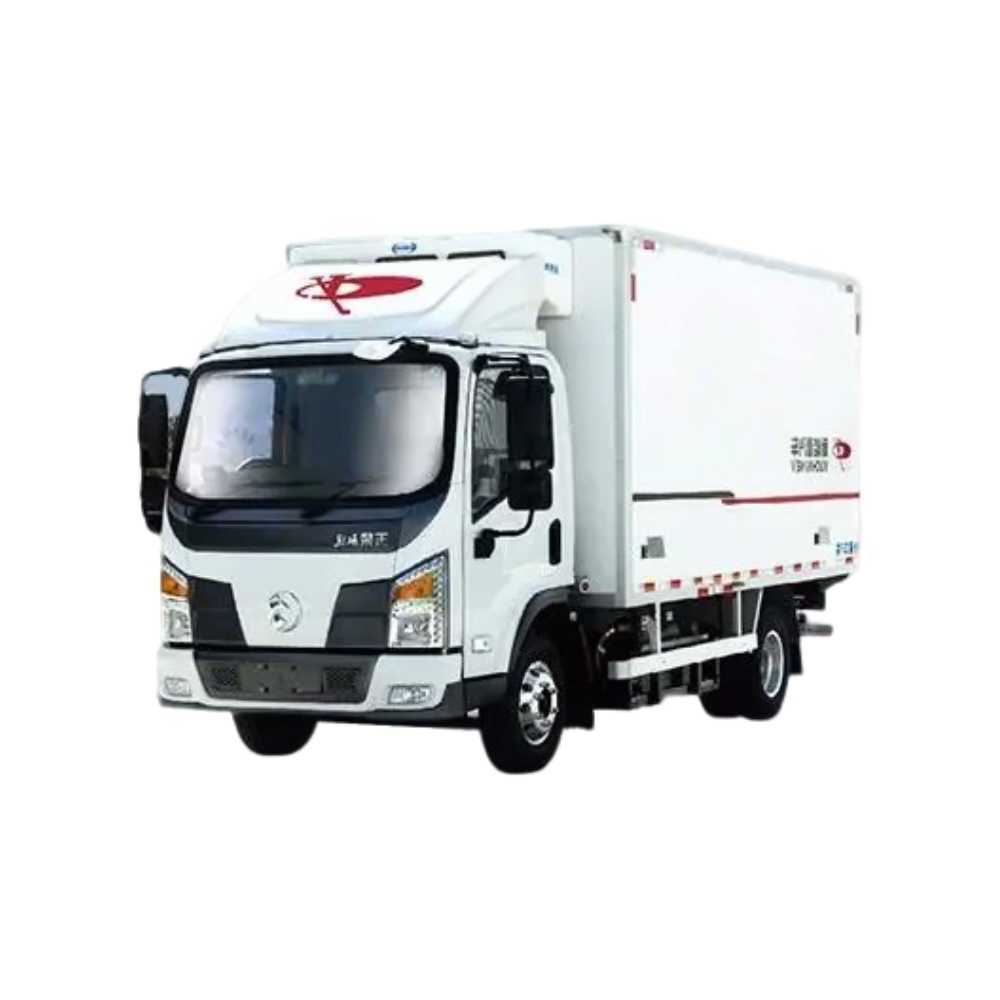

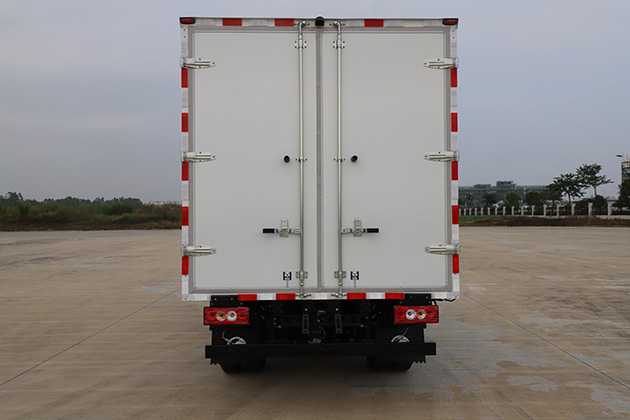

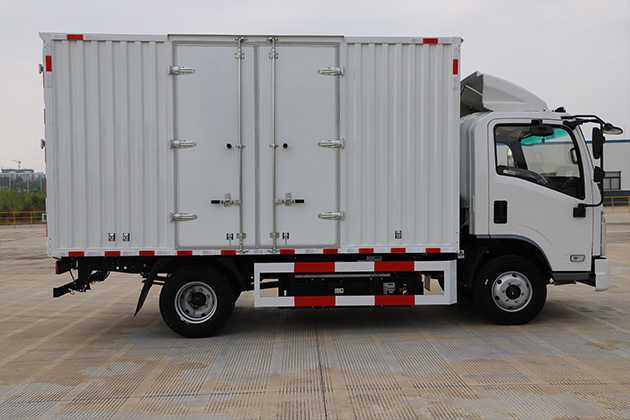

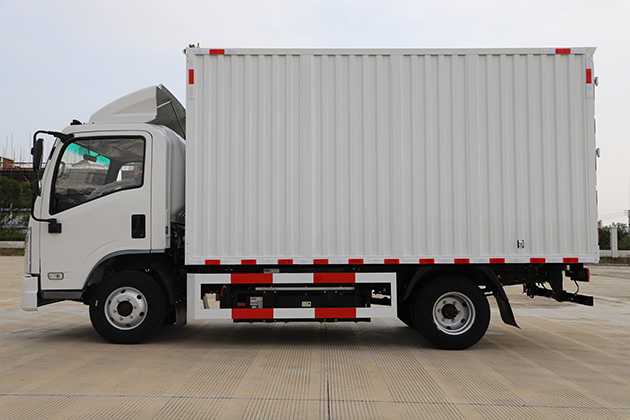

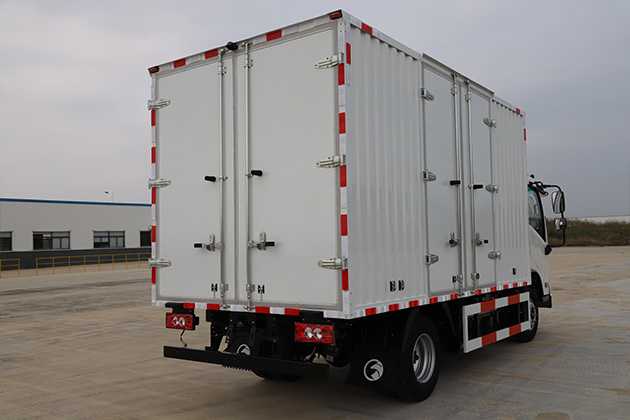

Yuchai NEV EC340R Right-Hand Drive Single Rear Wheel Light Truck
Yuchai NEV EC340R Right-Hand Drive Single Rear Wheel Light Truck
Regular price
$49,269.00 USD
Sale price
$49,269.00 USD
Regular price
Unit price
per
Couldn't load pickup availability
| Item | Specification | Item | Specification |
|---|---|---|---|
| Vehicle Basic Parameters | |||
| Length (mm) | 5995 | Width (mm) | 2200 |
| Height (mm) | 3120 (with dome) | Wheelbase (mm) | 3360 |
| Overhang F/R (mm) | 1165 / 1470 | Curb Vehicle Weight (kg) | 3300 (van cargo, configurable) |
| Max Design GVW (kg) | 6500 | Cab Capacity (persons) | 3 |
| Max Vehicle Speed (km/h) | 90 (up to 110 km/h available) | Max Gradability (%) | ≥20 |
| Minimum Turning Diameter (m) | <14 | Full-load Endurance (km) | 280 (comprehensive operating condition) |
| Minimum Ground Clearance (mm) | >190 (at 6500 kg GVW) | Approach / Departure Angle (°) | 17.8 / 16.6 |

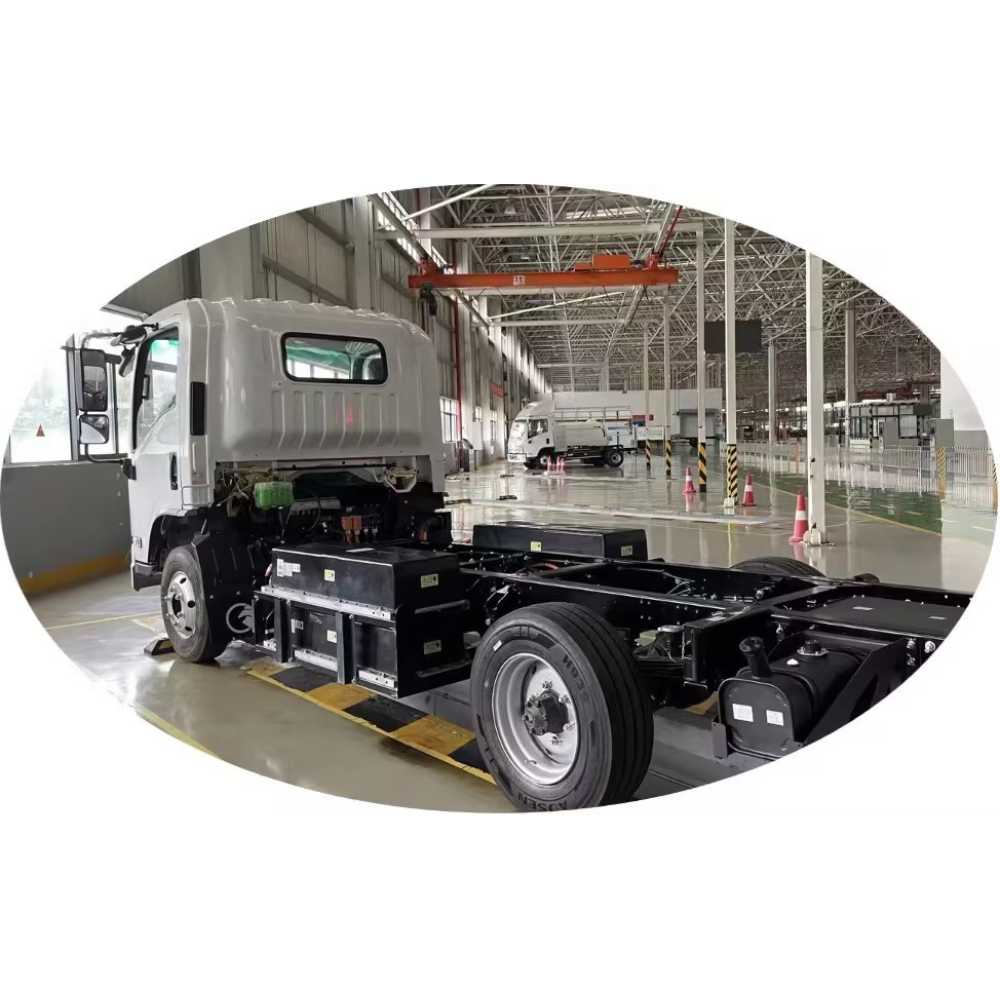

| Class-2 Chassis Basic Parameters | |||
| Length (mm) | 5910 | Width (mm) | 1980 |
| Height (mm) | 2300 | Wheelbase (mm) | 3360 |
| Track F/R (mm) | 1623 / 1536 | Overhang F/R (mm) | 1165 / 1385 |
| Class-2 Chassis CVW (kg) | 2650 | Max Design GVW (kg) | 6500 |
| Cab Capacity (persons) | 3 | Max Vehicle Speed (km/h) | 90 (up to 110 km/h available) |
| Power Battery | |||
| Battery Type | Lithium iron phosphate | Battery Manufacturer | CATL |
| Battery Capacity (kWh) | 106.95 | Battery Packs per Vehicle | 4 |
| Battery Thermal Management System | |||
| PTC heating | ○ | Fuel heating | ○ |
| Liquid cooling | ○ | Options | Choose one of three, or heating + liquid cooling combination |
| Drive Motor | |||
| Motor Type | Permanent-magnet synchronous brushless (BLDCM) | Drive Form | Single-stage reducer |
| Rated / Peak Power (kW) | 60 / 120 | Peak Torque (N·m) | 340 |
| Energy feedback | ● | ||
| Chassis Control | |||
| Powertrain Type | Motor + single-stage reducer | Front Suspension Type | Parallel leaf spring |
| Rear Suspension Type | Parallel leaf spring | Brake Type | Front & rear hydraulic drum (optional air brake) |
| Tire Quantity | 6 (4 with single rear wheel option) | Tire Specification | 7.00R16LT 10PR (optional 245/70 R17.5 18PR dual rear wheels) |
| Steel wheel | ● | Aluminum wheel | ○ |
| Hydraulic braking | Standard | Air brake | Optional |
| Steering column lock | ● | Electronic hydraulic power steering | ● |
| Parking brake | Central mechanical braking | ||
| Safety Equipment | |||
| ABS | ● | Low-speed pedestrian alarm system | ● |
| Reversing voice warning device | ● | Driver seat-belt reminder (SBR) | ● |
| Reversing radar | ● | Remote monitoring system | ● |
| Fire extinguisher | ● | Safety handle | ● |
| Technology & Convenience | |||
| Remote-control key | ● | DC fast-charging port | ● |
| Light Configuration | |||
| Reading light | ● | Cargo compartment lighting interface | ● |
| Front fog lamp | ● | Halogen headlights | ● |
| Headlight height adjustable | ● | Clearance lamp | ● |
| Other Configuration | |||

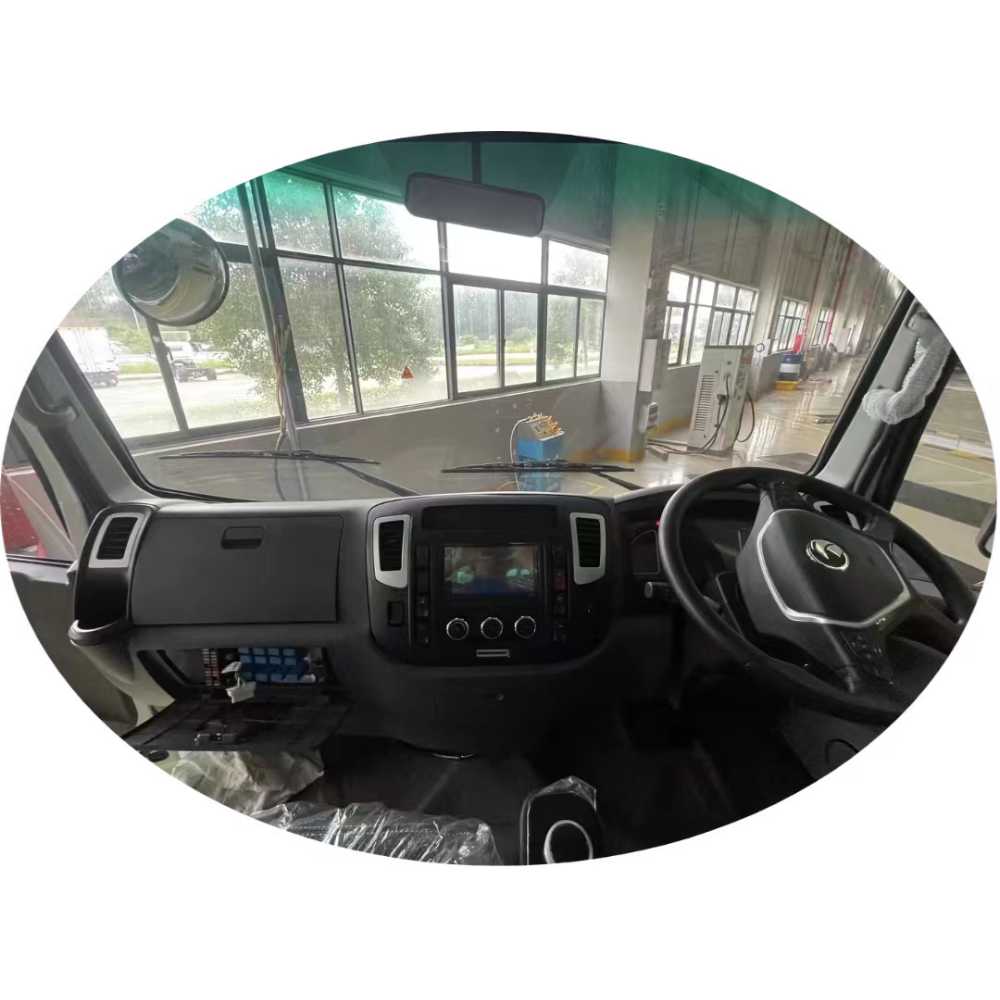

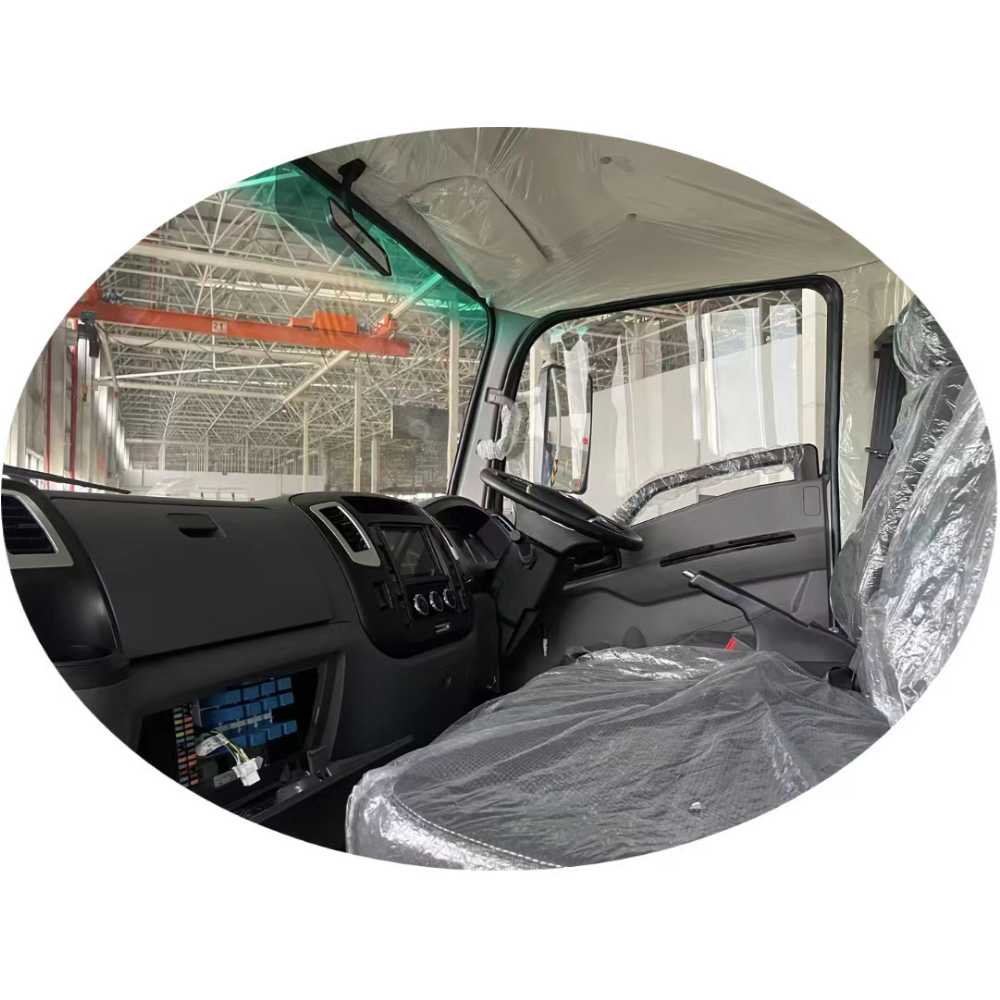

| Cab | RHD 1880 cab | Warm air | ● |
| Refrigeration A/C | ● | A/C control panel | Manual |
| Cigarette lighter | ● | DC charge time | ≤2 h |
| Speakers | 2 | Voltage platform | 12 V (24 V configurable) |
| Dual-tone electric horn | ● | Headrest | ● |
| Seat fabric | Fabric seat | Driver seat | Slide & angle adjustable |
| Passenger seat | Angle adjustable | Cab tilting | Mechanical forward tilting |
| Cargo compartment | ○ | Multi-functional steering wheel | ● |
| Non-multi-functional steering wheel | ○ | Multimedia player | ● |
| Reversing camera | ● | Radio-cassette player | ○ |
| Power window | ● | Dome assembly | ○ |
| Central door lock | ● | ||
