Basic Information

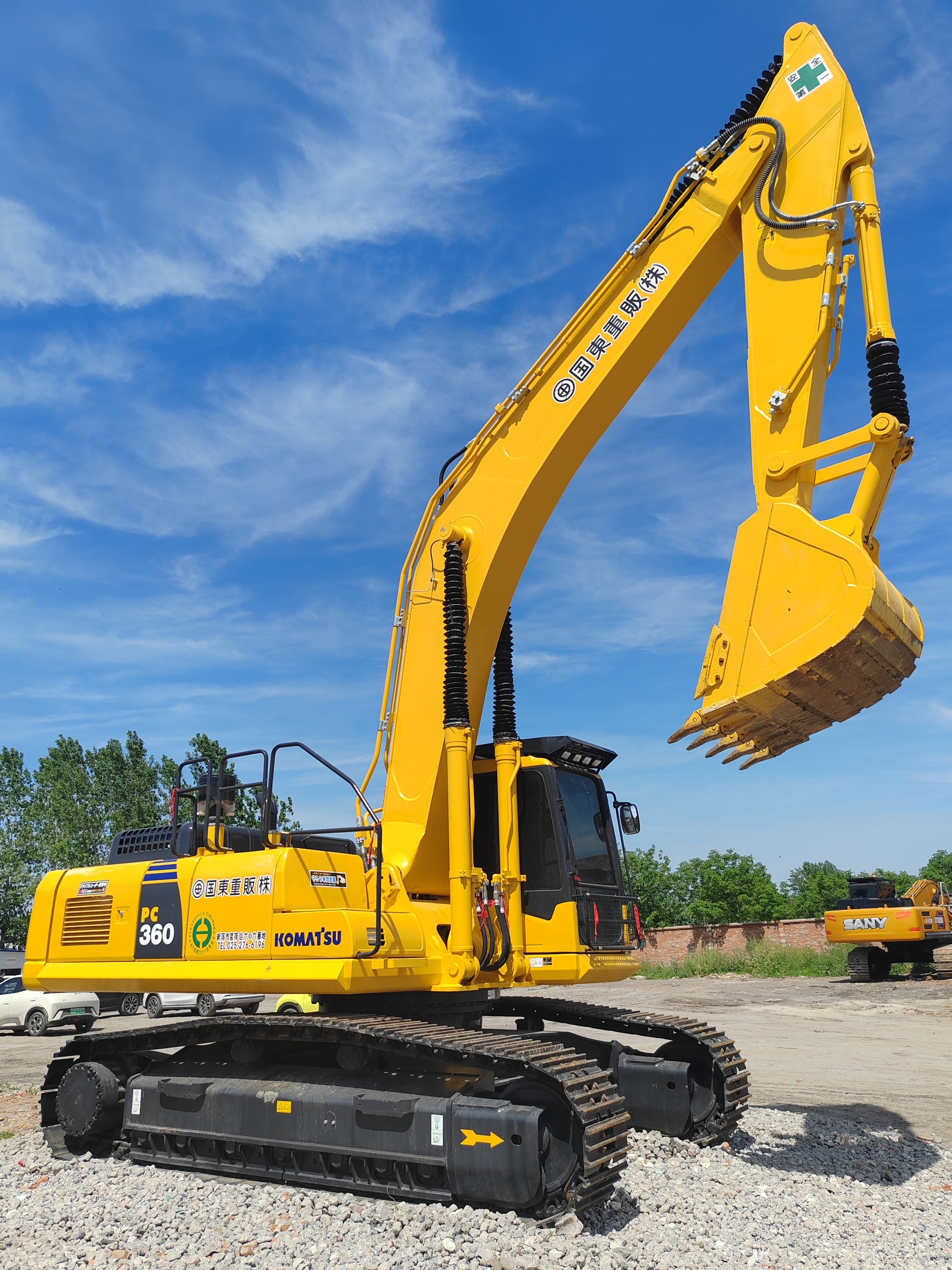

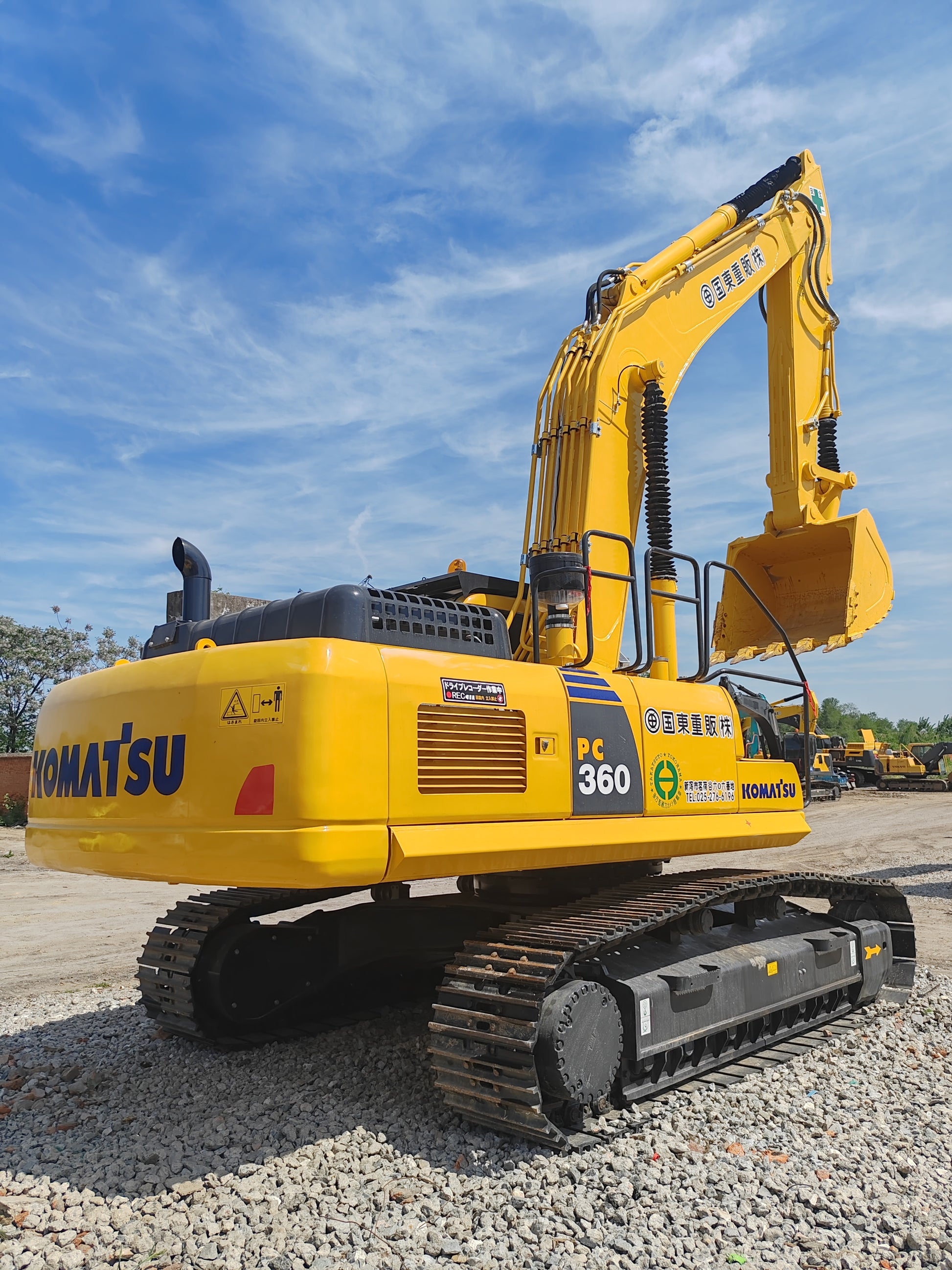

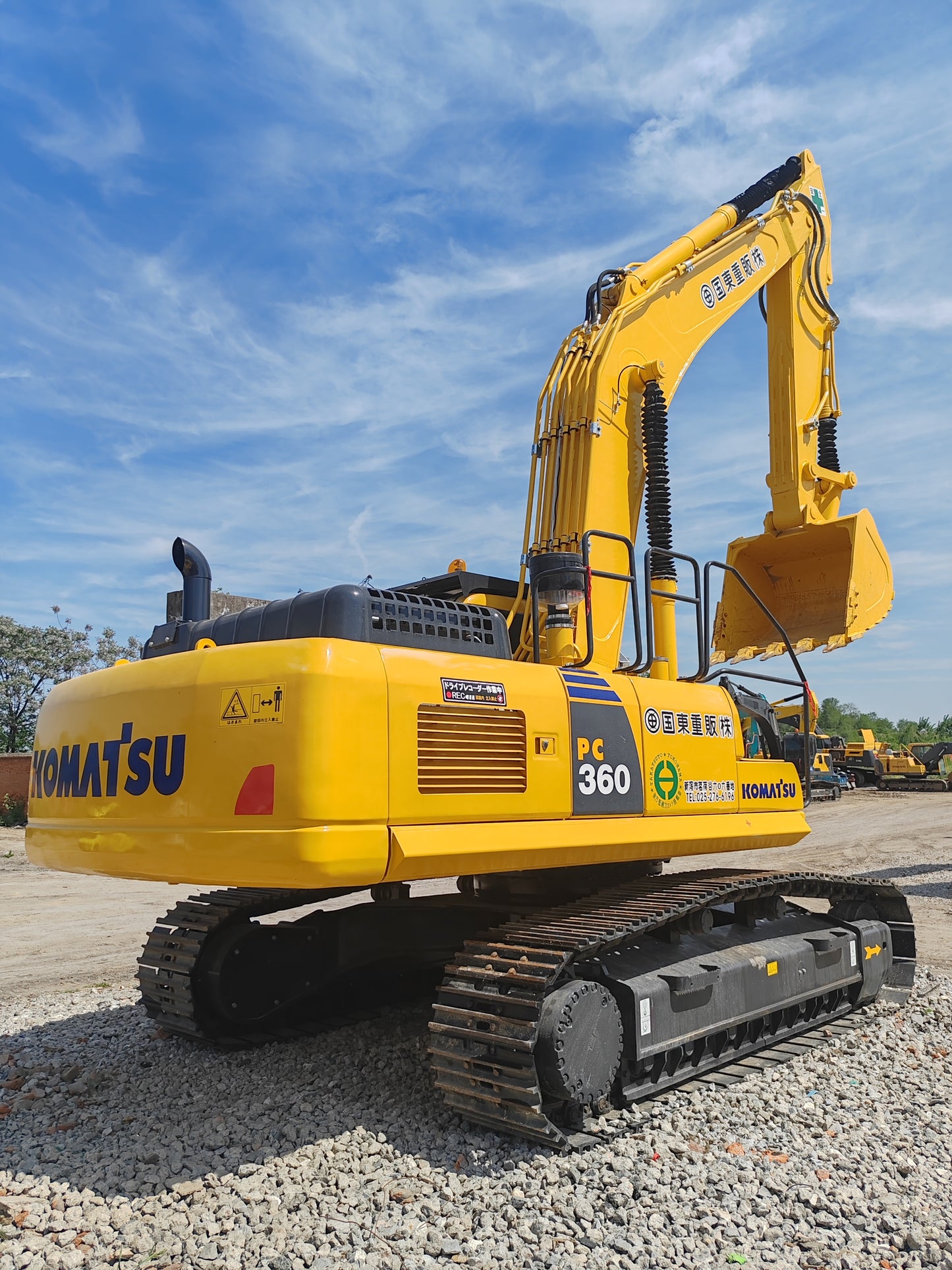

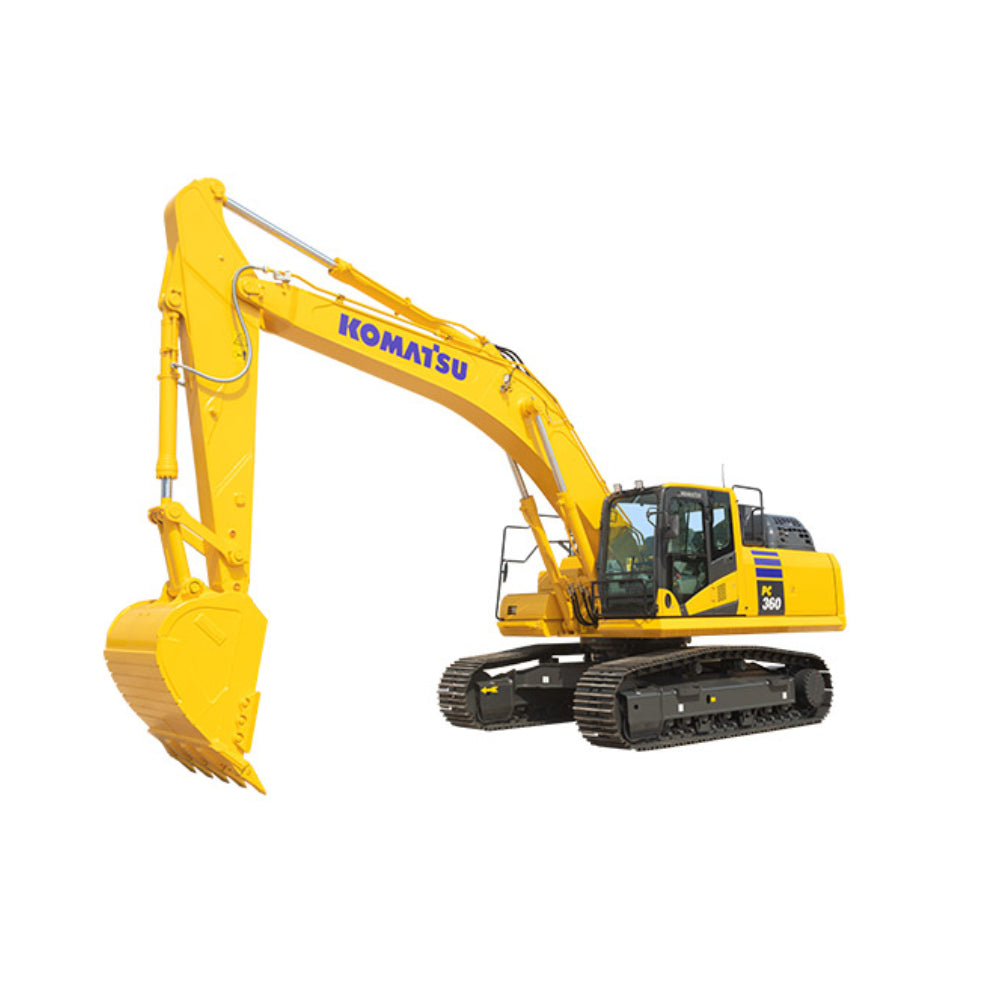

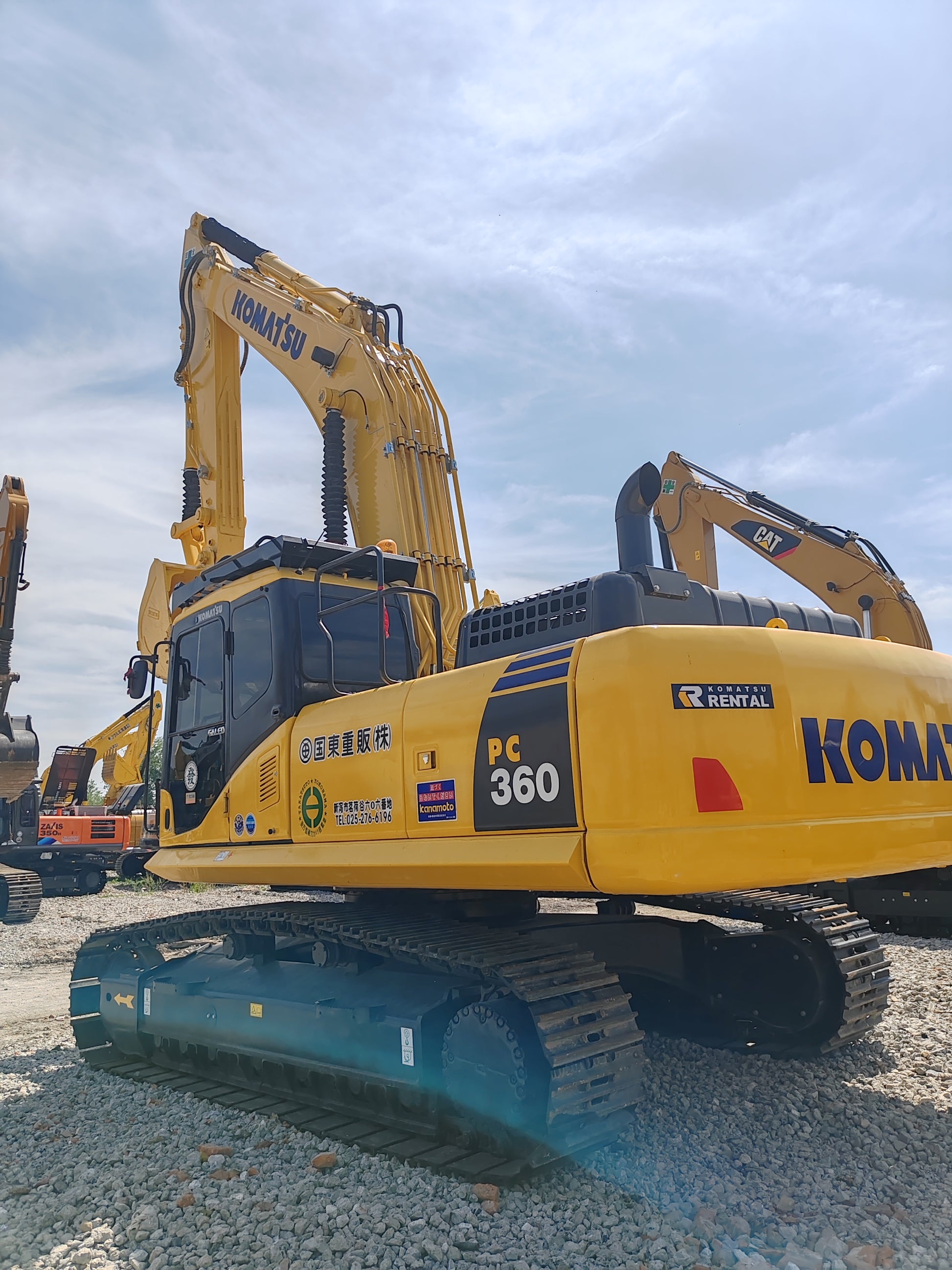

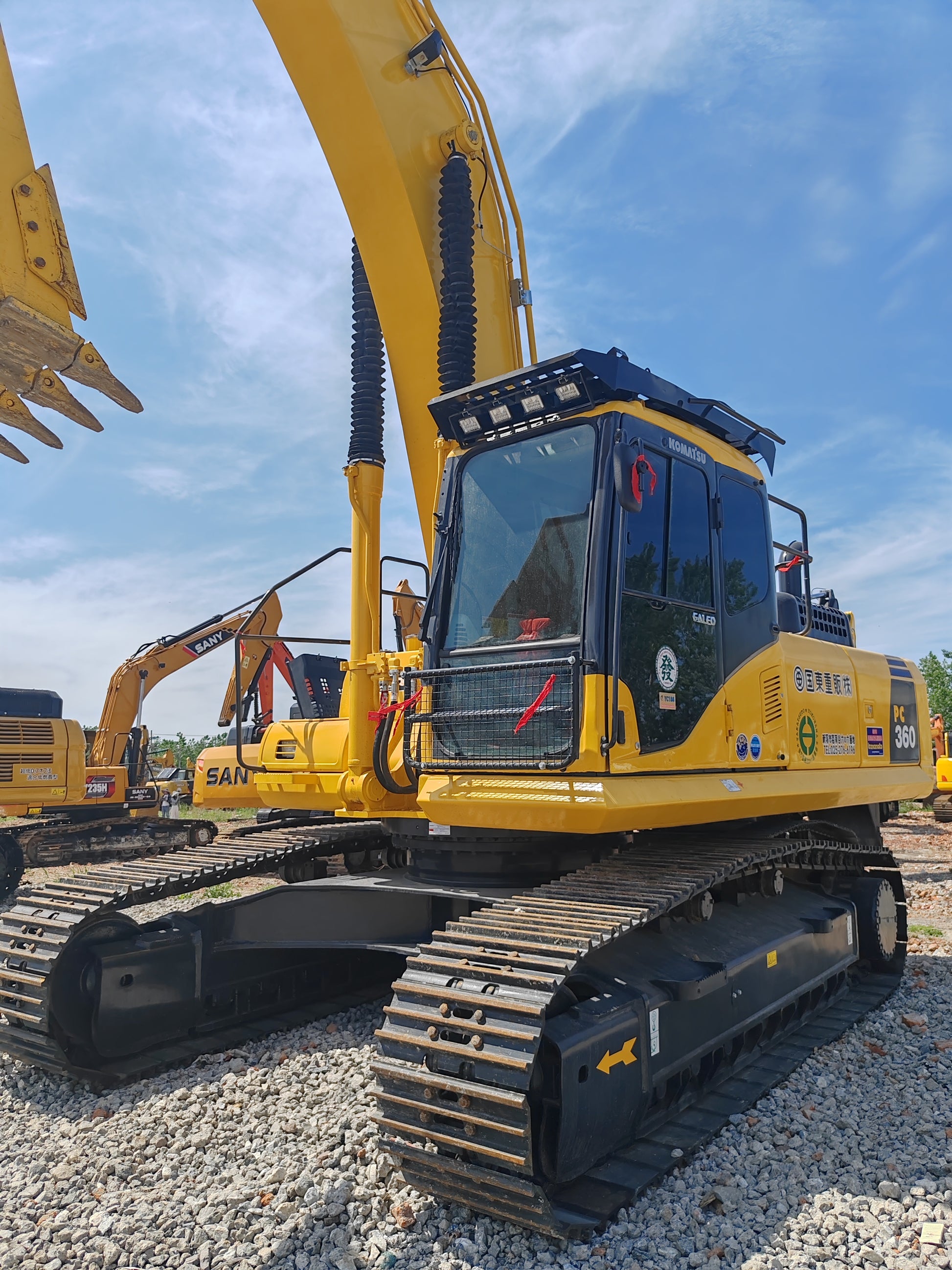

Model: Komatsu PC360

Category: Hydraulic Excavator

Manufacturer: Komatsu Ltd.

Operating Weight: 36,200 kg – 38,500 kg (varies by configuration)

Engine: Komatsu SAA6D114E-6

Emission Standard: EU Stage V / U.S. EPA Tier 4 Final

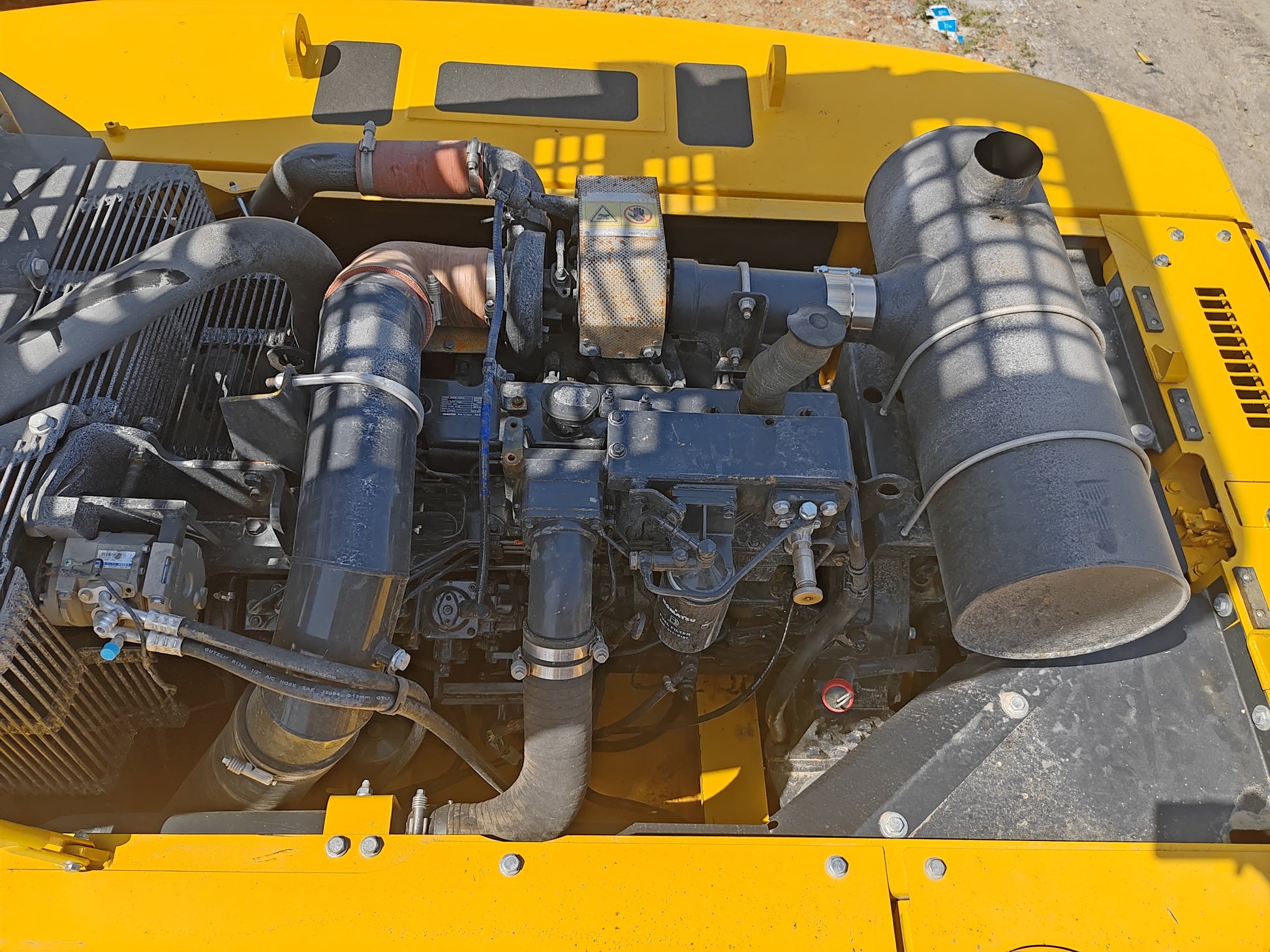

Engine & Performance
Engine Type: Turbocharged Diesel

Displacement: 7.125 L

Net Power: 202 kW (271 hp) @ 1,900 rpm

Max Torque: 1,250 Nm @ 1,500 rpm

Fuel Tank Capacity: 520 L

Fuel Consumption: Approx. 18-22 L/h (under typical load)

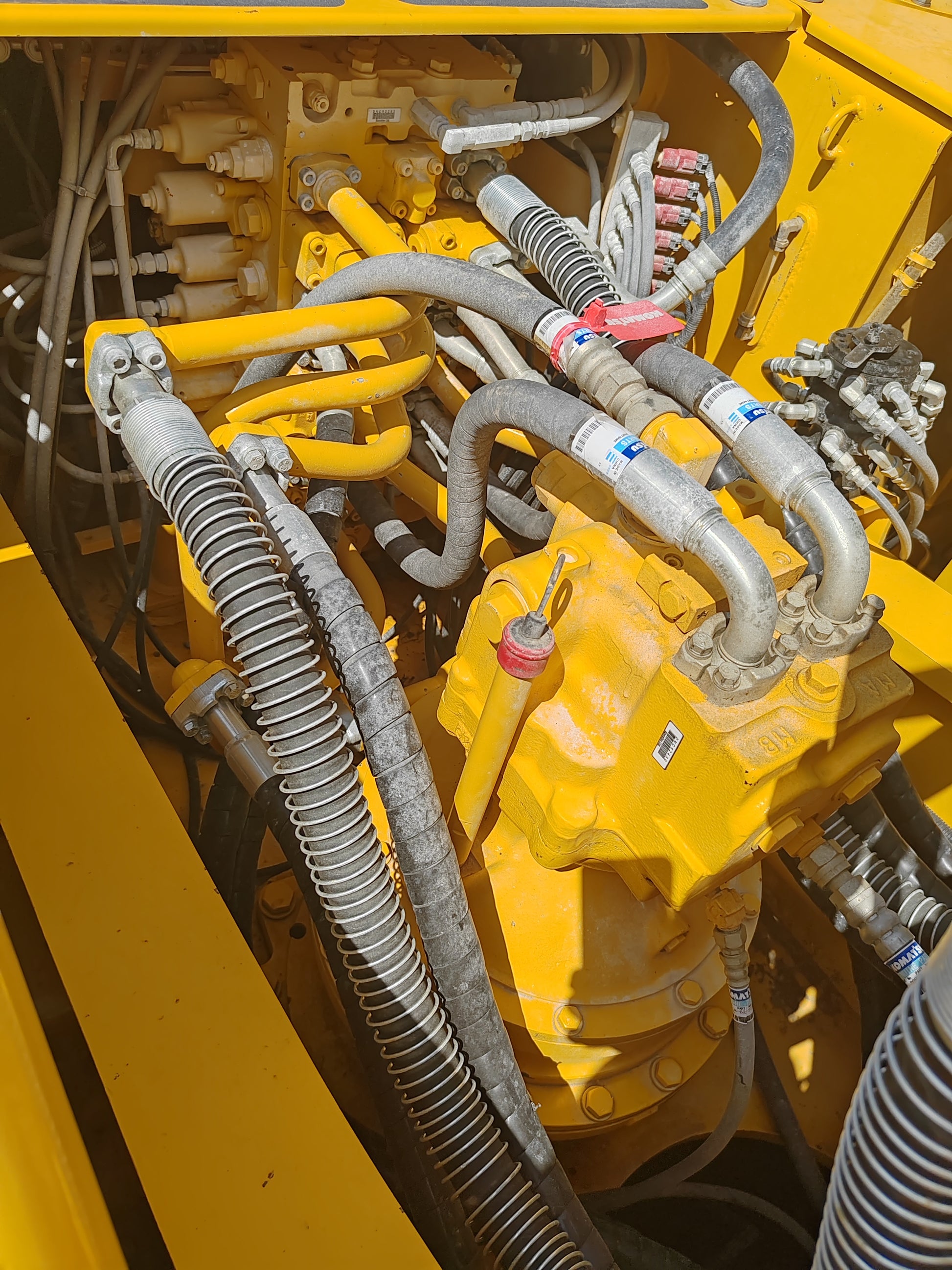

Hydraulic System

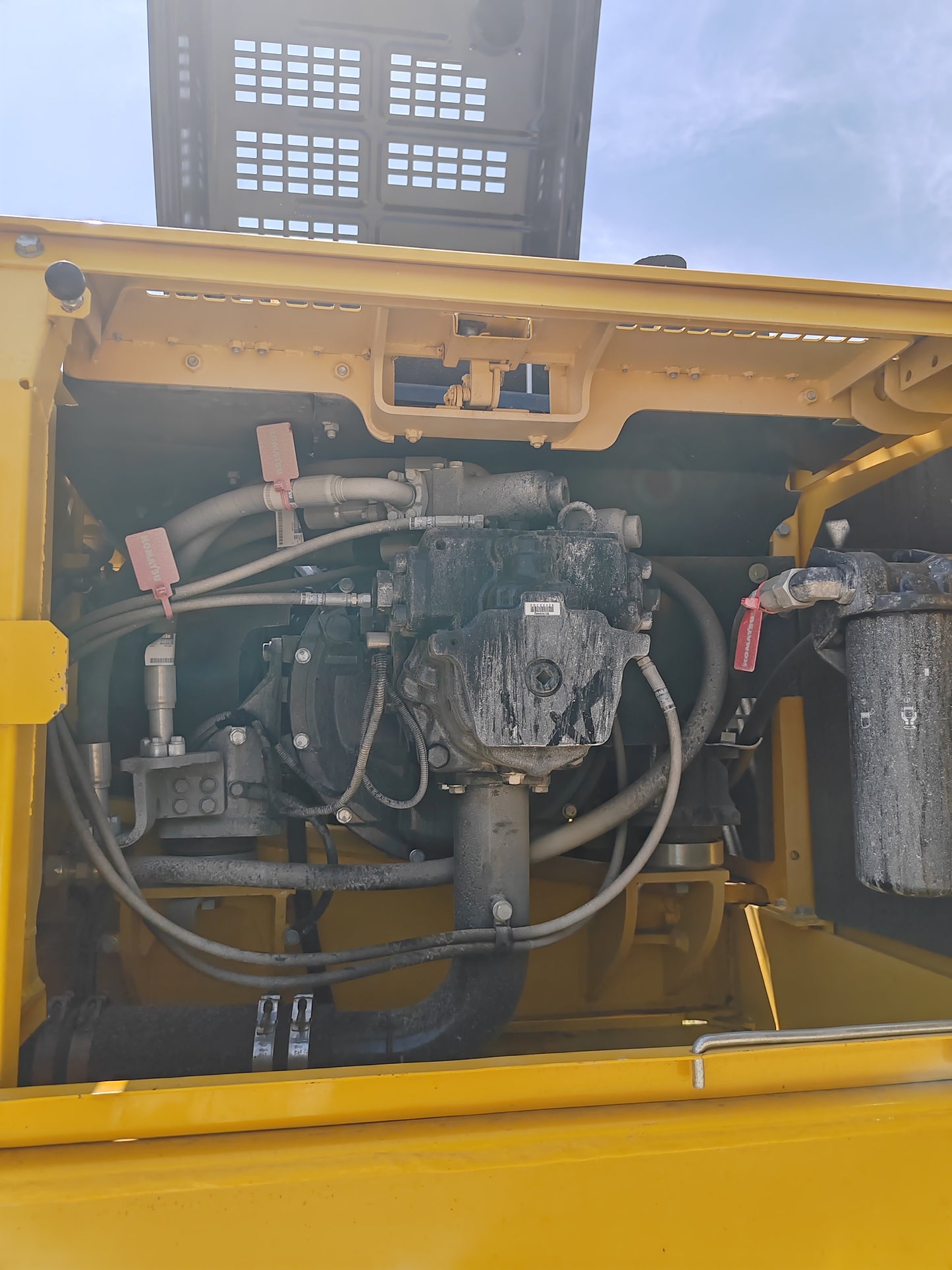

Main Pump Type: Variable Displacement Axial Piston Pump (x2)

Max Flow Rate: 2 × 260 L/min

System Pressure: 34.3 MPa (Main) / 37.3 MPa (Pilot)

Swing Speed: 10.5 rpm

Swing Torque: 170 kN·m

Undercarriage & Dimensions
Track Shoe Width:

Standard: 600 mm

Wide Option: 800 mm

Ground Pressure: 53 kPa (600 mm shoes)

Track Length: 4,590 mm

Overall Length: 11,400 mm

Overall Width: 3,190 mm (600 mm shoes)

Overall Height: 3,150 mm (Cab)

Digging Performance
Max Digging Depth: 7,640 mm

Max Reach at Ground Level: 10,690 mm

Bucket Capacity: 1.4 – 2.1 m³ (varies by type)

Breakout Force:

Bucket: 245 kN

Arm: 178 kN

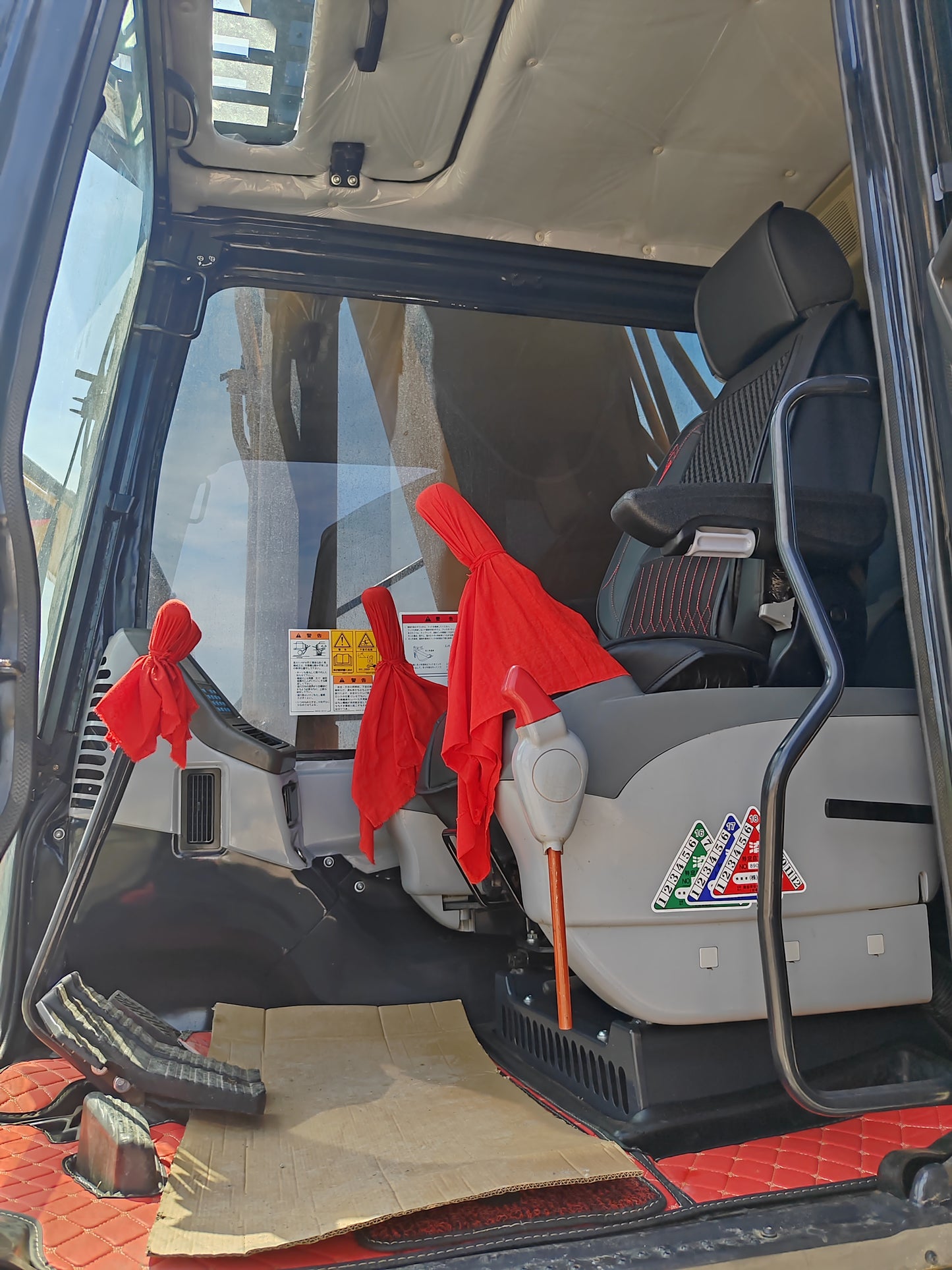

Operator Environment & Features
Cab: ROPS/FOPS Certified

Air Conditioning: Standard

Monitor: 7-inch LCD Display (KOMTRAX telematics)

Noise Level: 72 dB (Operator cabin)
