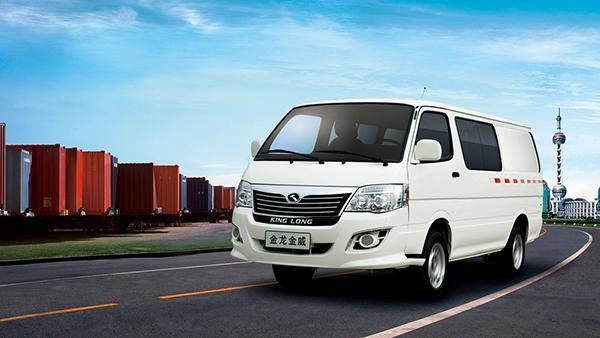

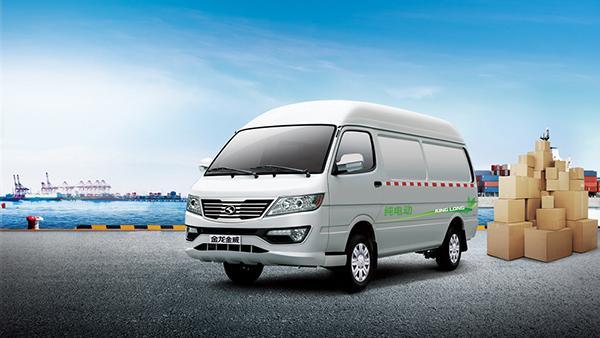

Kingwin XMQ6520EV Electric Cargo Van
Basic Information
Model: XMQ6520EV
Category: 5.3-meter Pure Electric Cargo Van
Manufacturer: Kingwin (King Long)
Market Position: Urban logistics and cargo delivery solution
Driving Position: RHD (Right-Hand Drive)
Dimensions & Weight
Length × Width × Height: 5340 × 1700 × 2285 mm
Wheelbase: 2890 mm
Curb Weight: 2035 kg
Gross Vehicle Weight: 3260 kg
Max Payload: 1225 kg
Ground Clearance: 180 mm
Powertrain & Performance
Motor Type: Permanent Magnet Synchronous Motor (PMSM)
Power Output:
Rated Power: 50 kW
Peak Power: 80 kW @ 8000 rpm
Peak Torque: 270 N·m
Max Speed: 90 km/h
Max Gradeability: 25%
Control System: Single ECU electronic control
Battery & Charging
Battery Manufacturer: CATL
Battery Capacity: 50.232 kWh
Driving Range: 230 km (CLTC)
Charging Standard: GB/T
Charging Time:
Fast Charge: <1.5 hours (20%-100% at normal temperature)
Slow Charge: <7.5 hours (20%-100% at normal temperature)
Chassis & Handling
Suspension: Commercial vehicle specification
Turning Radius: 6 meters
Approach/Departure Angle: 19°/14°
Maneuverability: Optimized for urban delivery routes

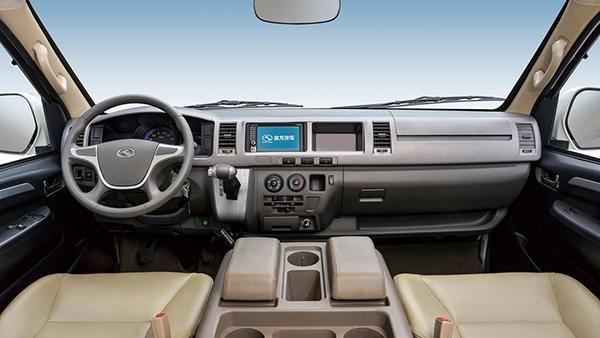

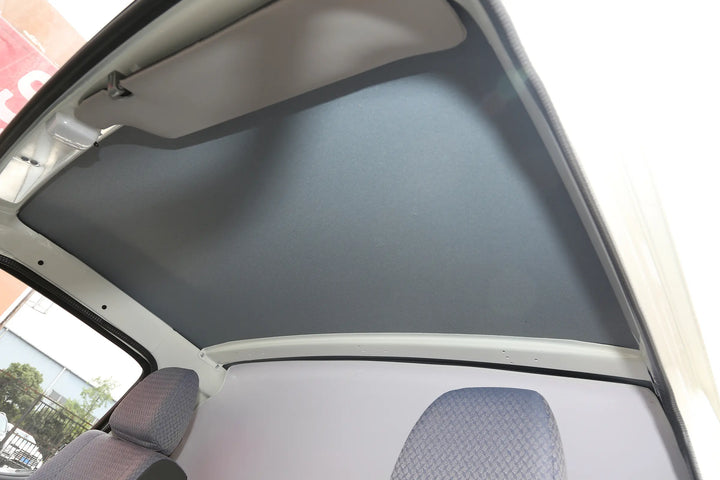

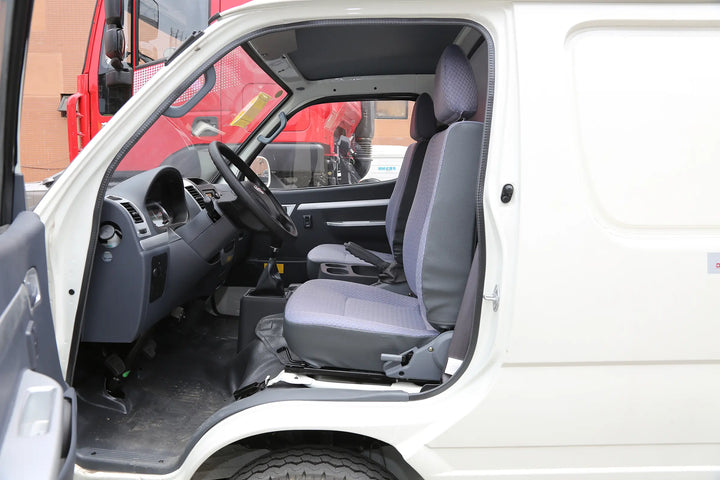

Interior & Cargo
Seating Capacity: 14 seats (2+3+3+3+3 configuration)

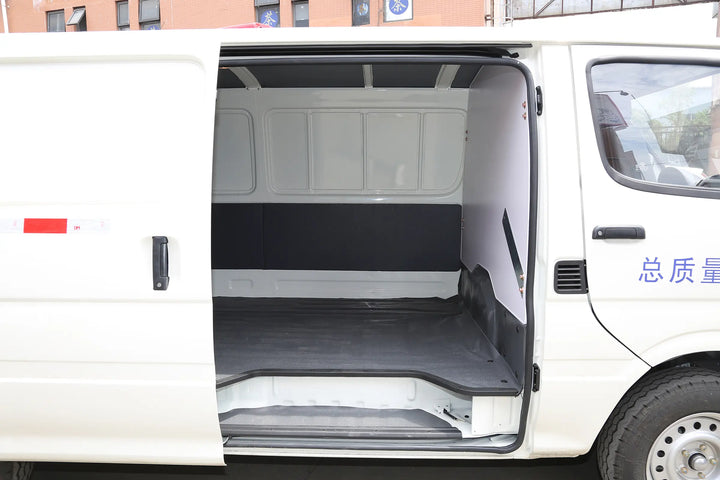

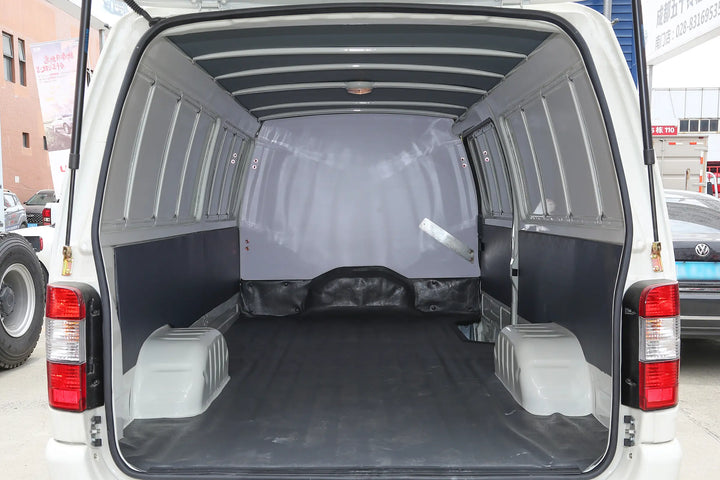

Cargo Space: Configurable for passenger or cargo transport
Interior Features: Basic commercial vehicle amenities
Safety & Reliability
Structural Safety: Reinforced cargo van construction
Battery Safety: CATL battery with management system
Operational Safety: Designed for urban commercial use
Target Applications
Urban logistics and parcel delivery
Small business cargo transport
Service and maintenance operations
Multi-purpose commercial use
Key Features
Compact Dimensions: Ideal for narrow urban streets
Adequate Range: 230 km sufficient for daily urban routes
Fast Charging: Quick 1.5-hour fast charging capability
Proven Components: Reliable CATL battery technology
Right-Hand Drive: Suitable for specific market requirements
Operational Advantages
Low operating costs compared to diesel vans
Zero-emission urban delivery solution
Good maneuverability in congested areas
Reliable performance for commercial applications
Certification & Compliance
Meets Chinese new energy vehicle standards
Commercial vehicle certification
GB/T charging compatibility
