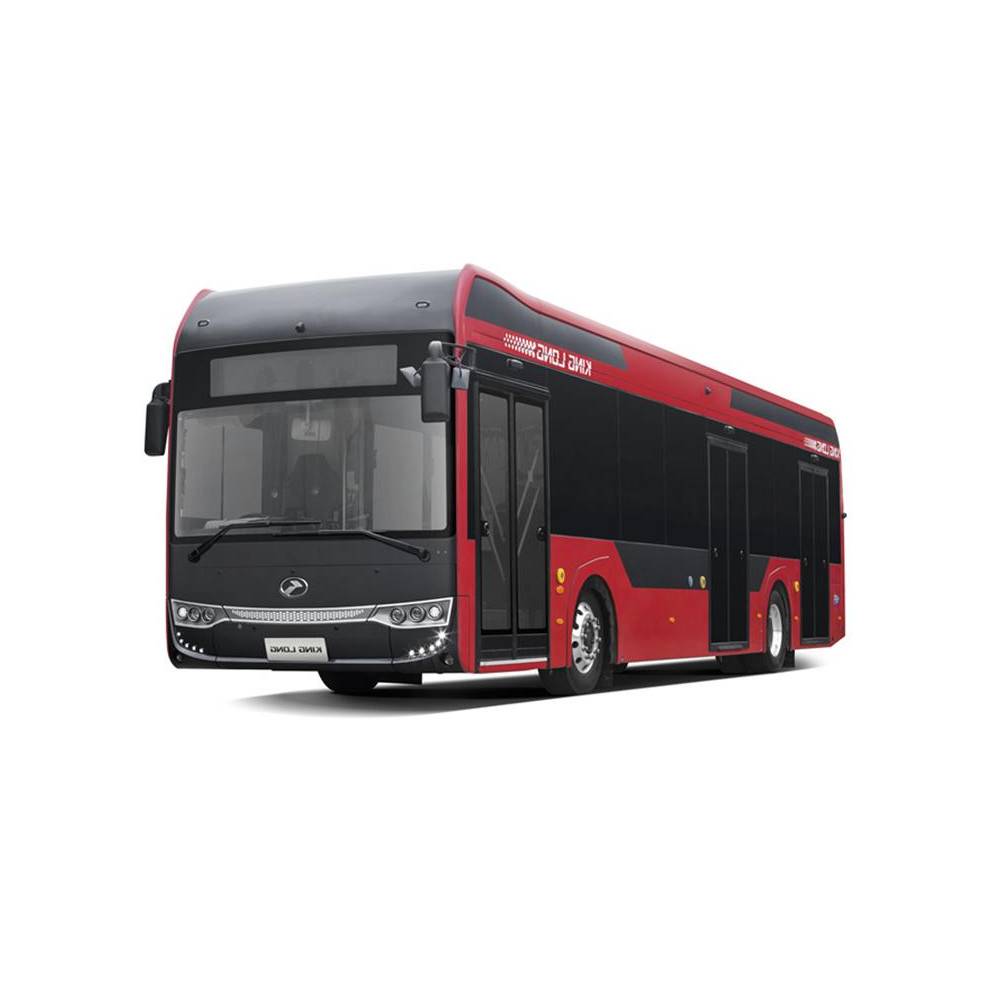

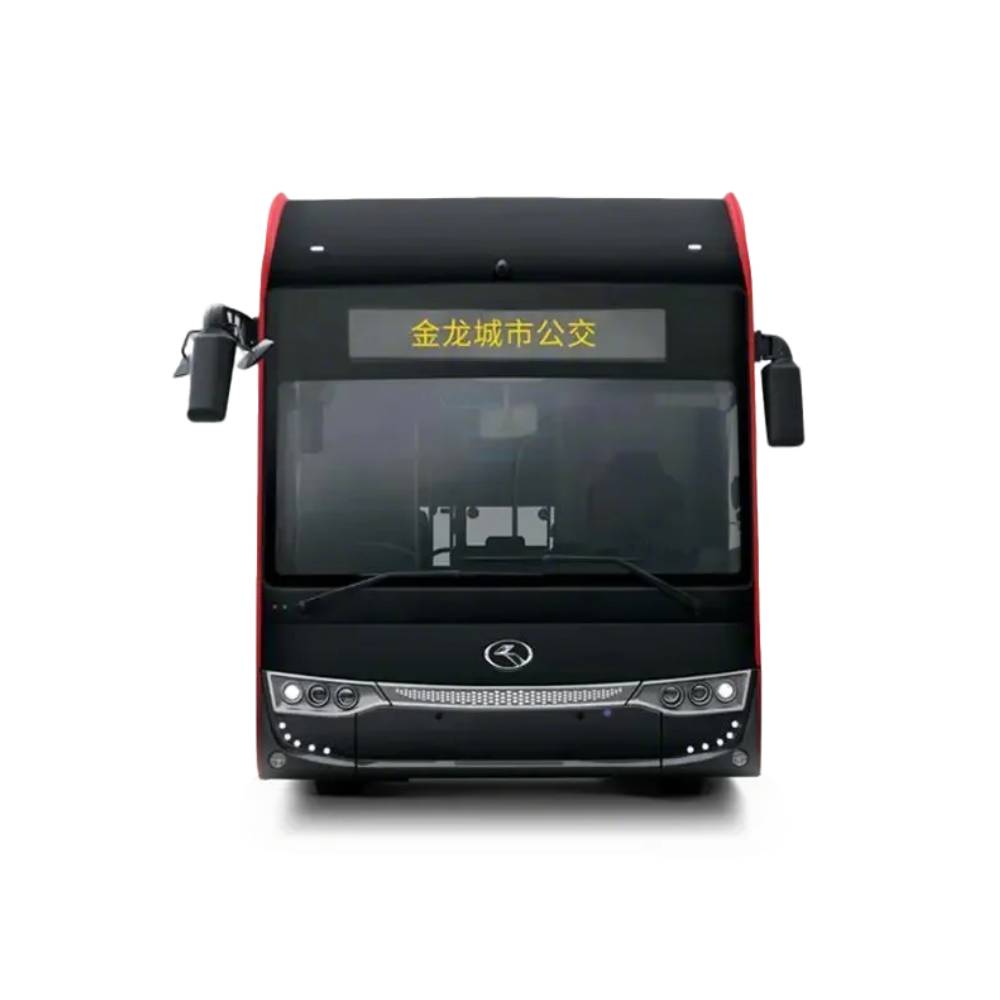

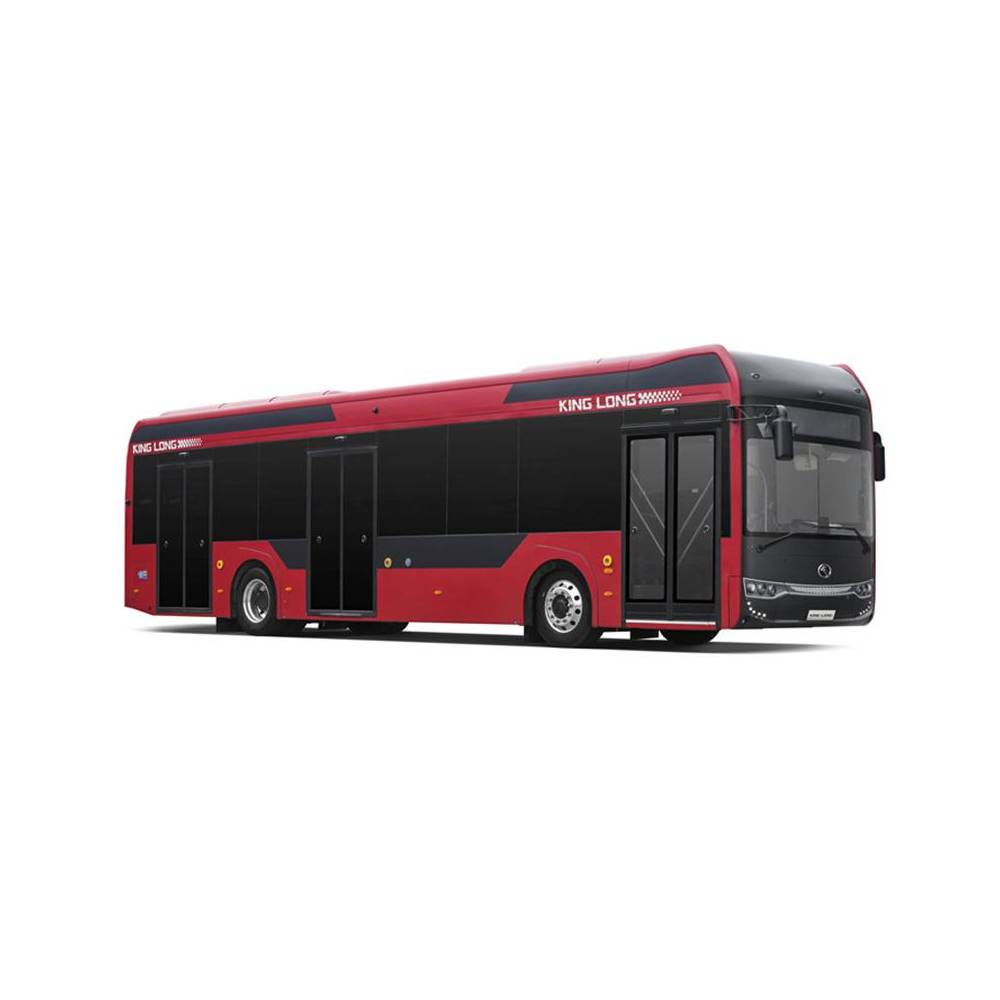

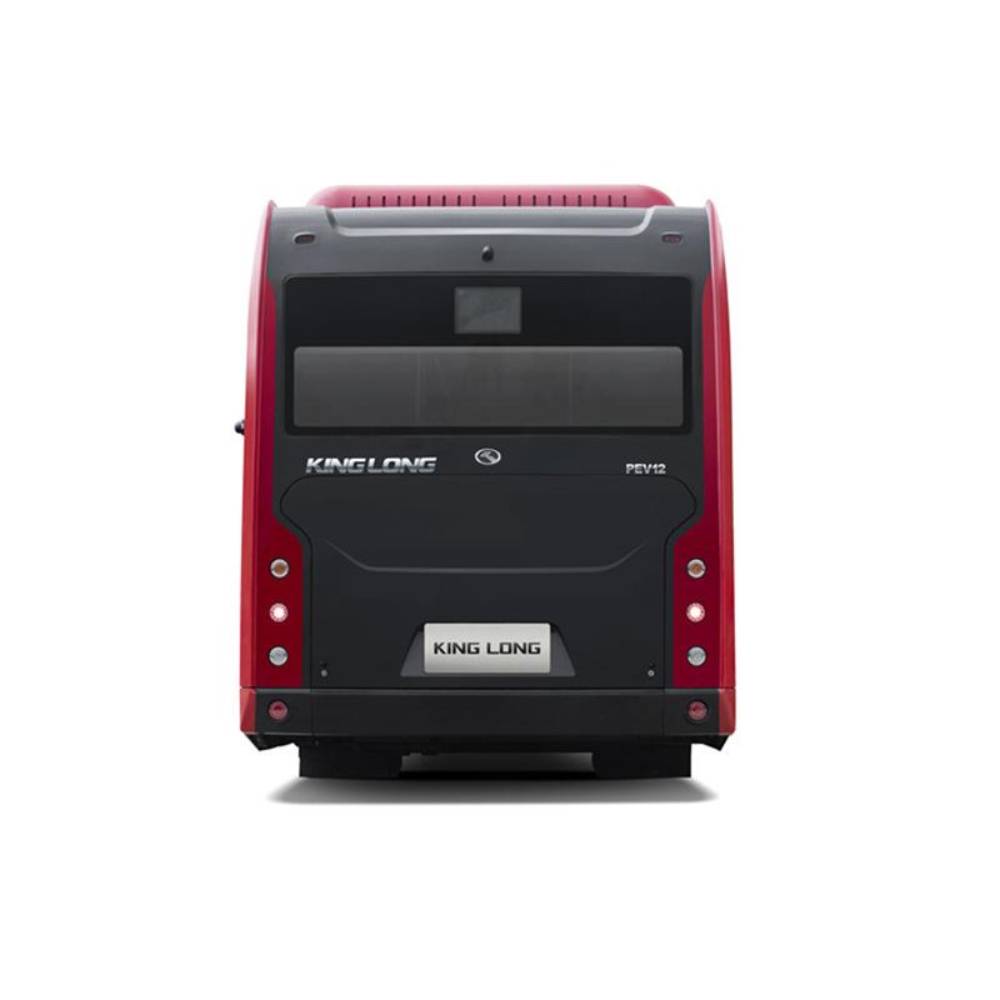

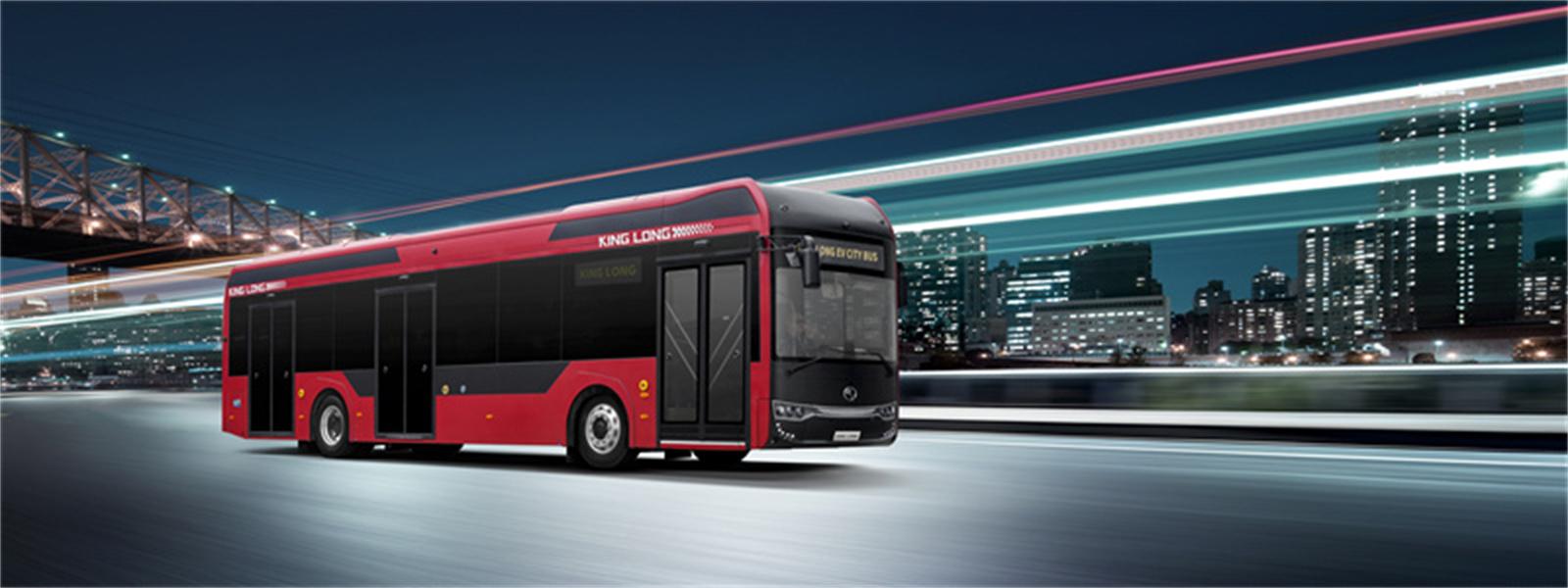

King Long 12m Pure Electric City Bus Estar PEV12
King Long 12m Pure Electric City Bus Estar PEV12
Regular price
$168,550.00 USD
Sale price
$168,550.00 USD
Regular price
Unit price
per
Couldn't load pickup availability
PEV12 Technical Specifications
| Item | Parameter |
|---|---|
| Model | PEV12 |
| Category | 12-meter Low-Floor Electric City Bus |
| Manufacturer | King Long |
| Drive Configuration | LHD/RHD available |
| Length × Width × Height (mm) | 11980 × 2550 × 3300 |
| Wheelbase (mm) | 5750 |
| Approach/Departure Angle (°) | 6.5 / 6.5 |
| Gross Vehicle Weight (kg) | 19,500 |
| Tire Specification | 305/70R22.5 |
| Floor Type | Low-floor design |
| Motor Power | Rated: 195 kW / Peak: 350 kW |
| Max Torque (N·m) | 3,500 |
| Transmission | Electric direct drive |
| Top Speed (km/h) | ~80 (city bus configuration) |
| Battery Brand | CATL |
| Battery Capacity (kWh) | 422.9 |
| Range (km) | 270–320 (depending on conditions) |
| Charging | Standard DC fast charging compatible |
| Suspension | Air suspension system |
| Braking System | Front/Rear: Disc brakes |
| Electronics | EBS (Electronic Braking System) |
| Steering | Dual-source power steering |
| Axles | Front: ZF, 8.2T / Drive: ZF, 13T |
| Maximum Capacity | 85 passengers |

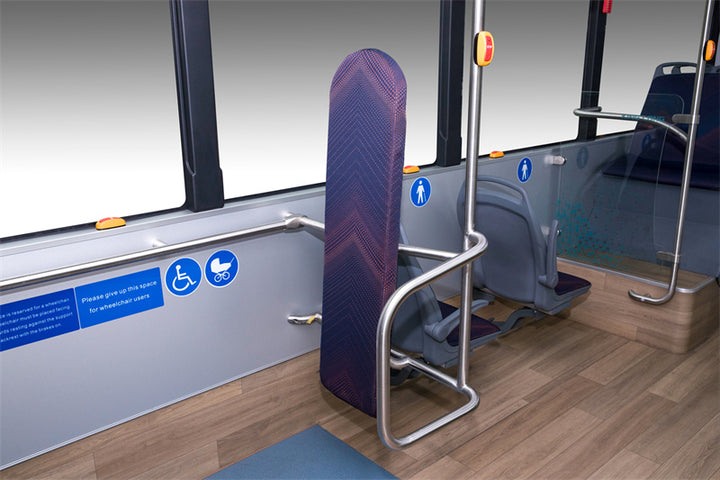

| Seating Configuration | 34 seats + 1 wheelchair space + 1 driver seat |
| Doors | Front, middle, and rear |

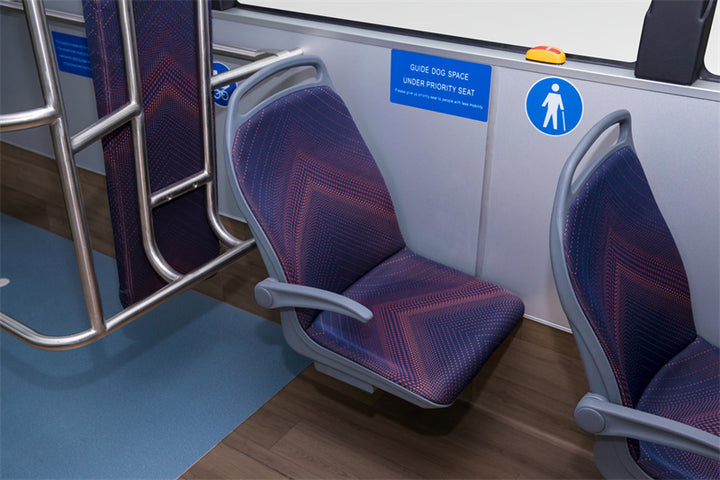

| Accessibility | Full low-floor with wheelchair accommodation |
| Driver Seat | Airbag-damping driver seat |

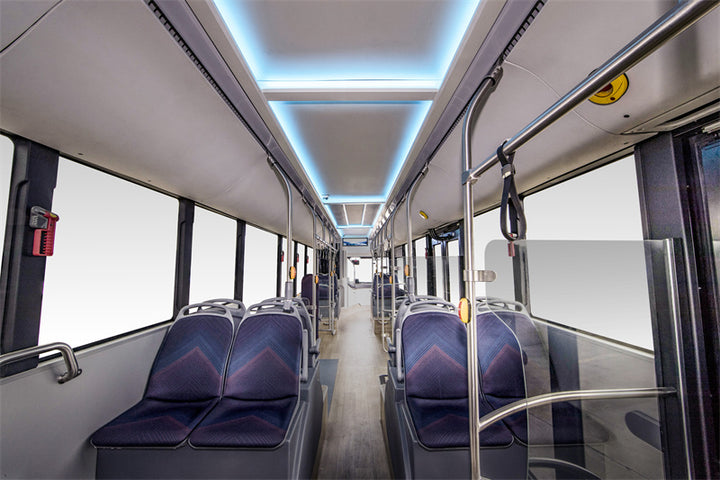

| Passenger Seats | Standard city bus seats |
| Air Conditioning | Valeo heating & cooling system |
| Cooling/Heating Capacity | Cooling: 30 kW / Heating: 19 kW |

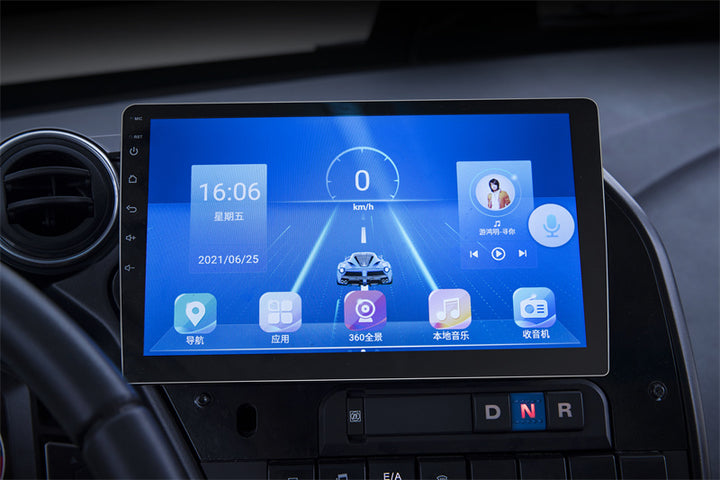

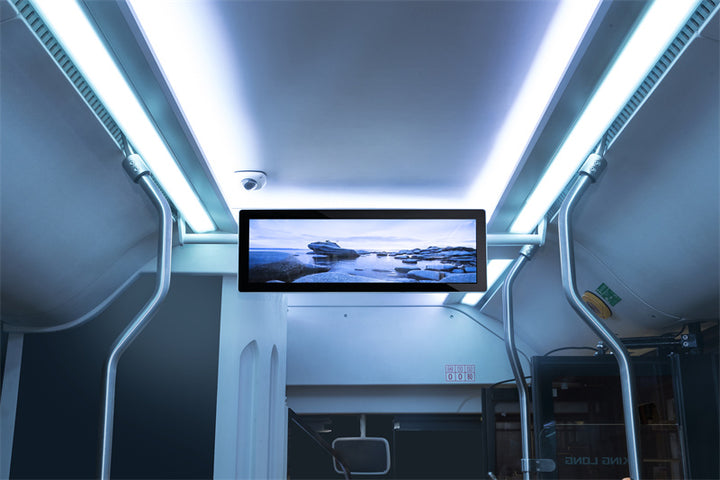

| Entertainment | Basic audio system (standard) |
| Braking Safety | EBS with ABS/ASR integration |
| Additional Safety | AEBS and ESC compatible |
| Visibility | Large windshield & side windows |
| Monitoring | Mobile digital video recorder (optional) |
| Turning Radius | Optimized for urban maneuverability |
| Gradeability | Suitable for city terrain |
| Warranty | Standard electric bus warranty terms apply |
