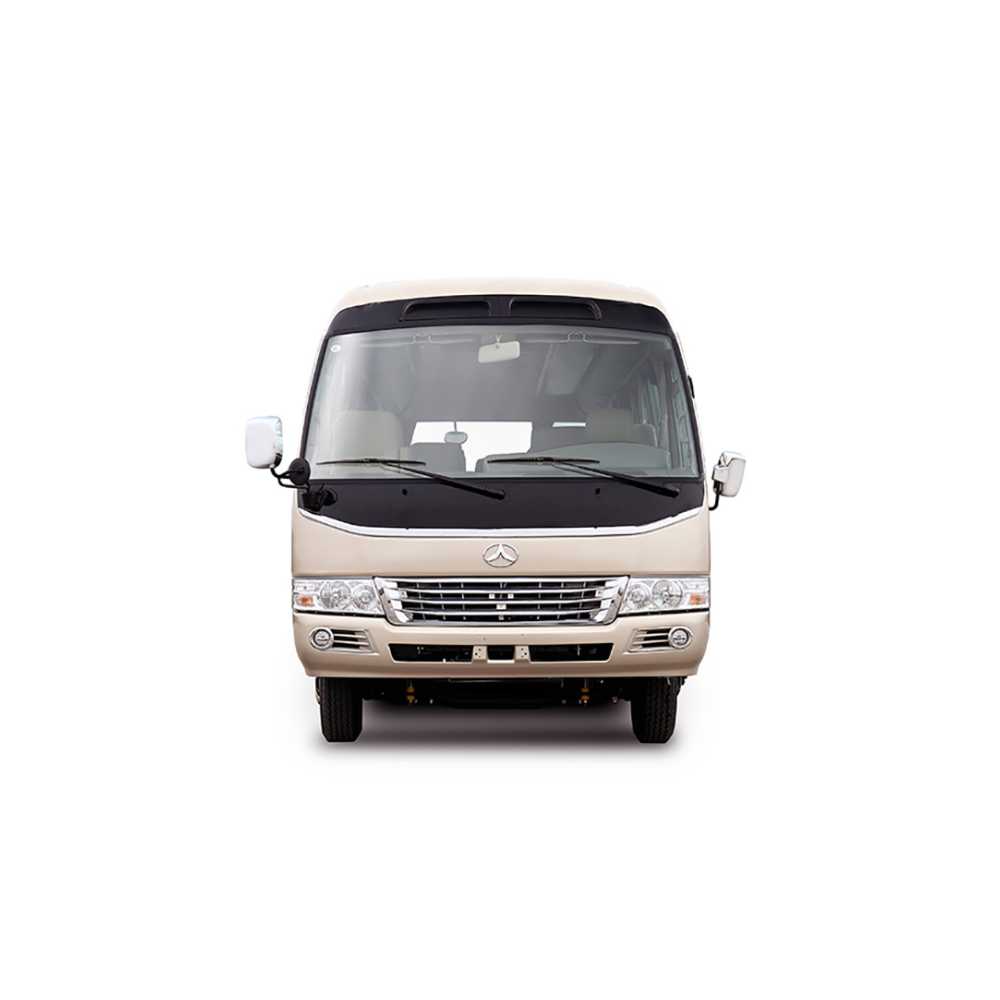

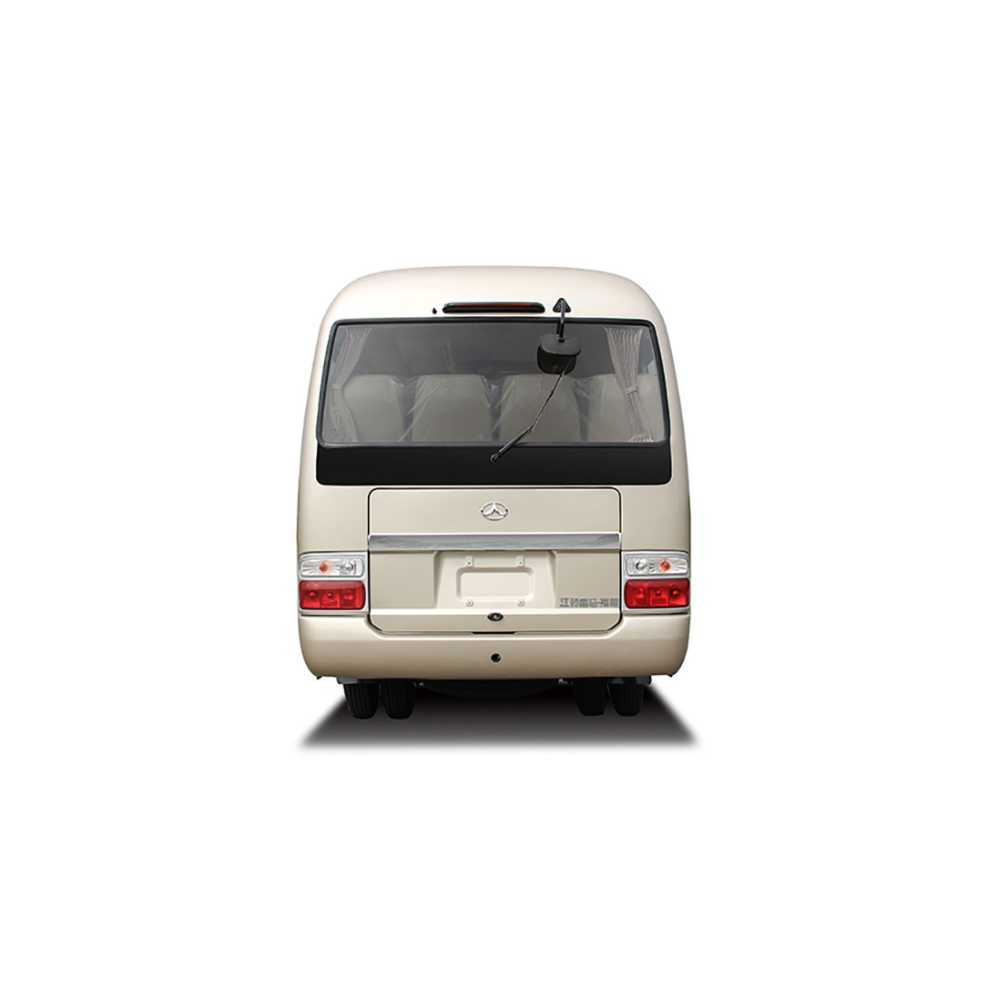

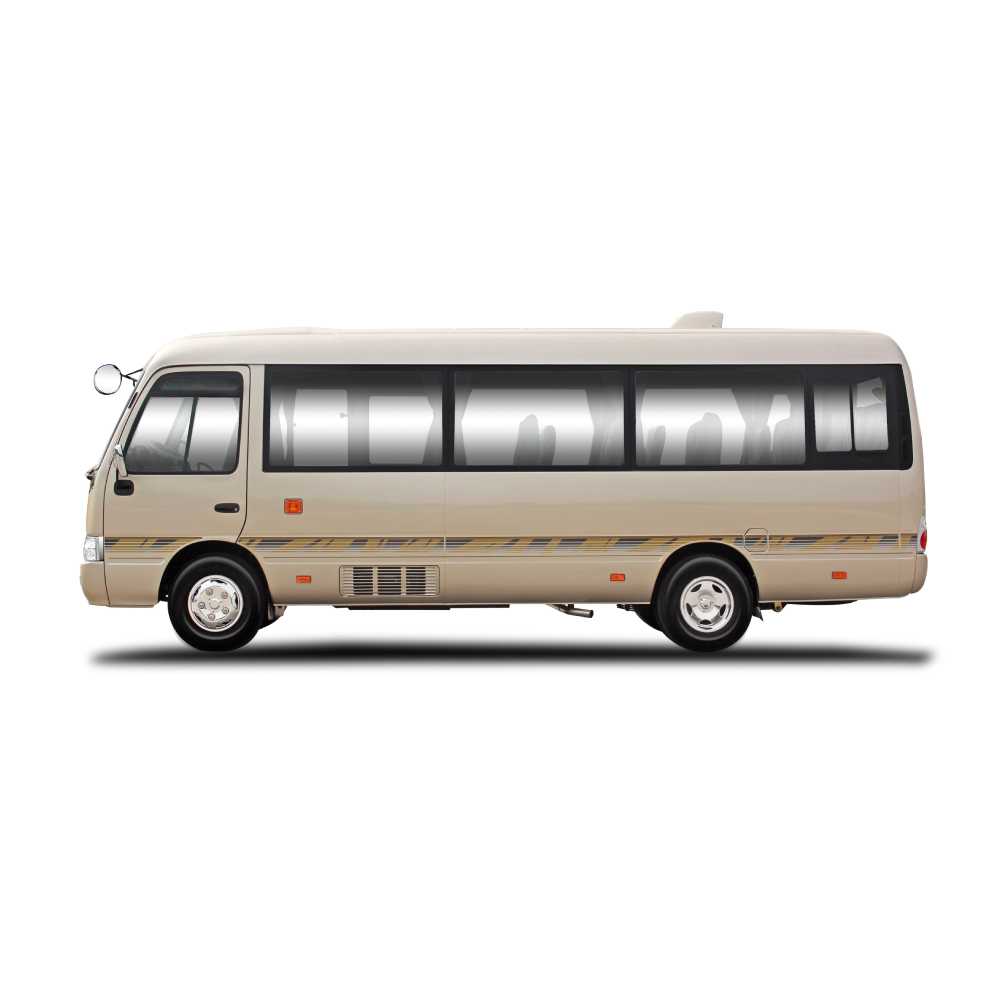

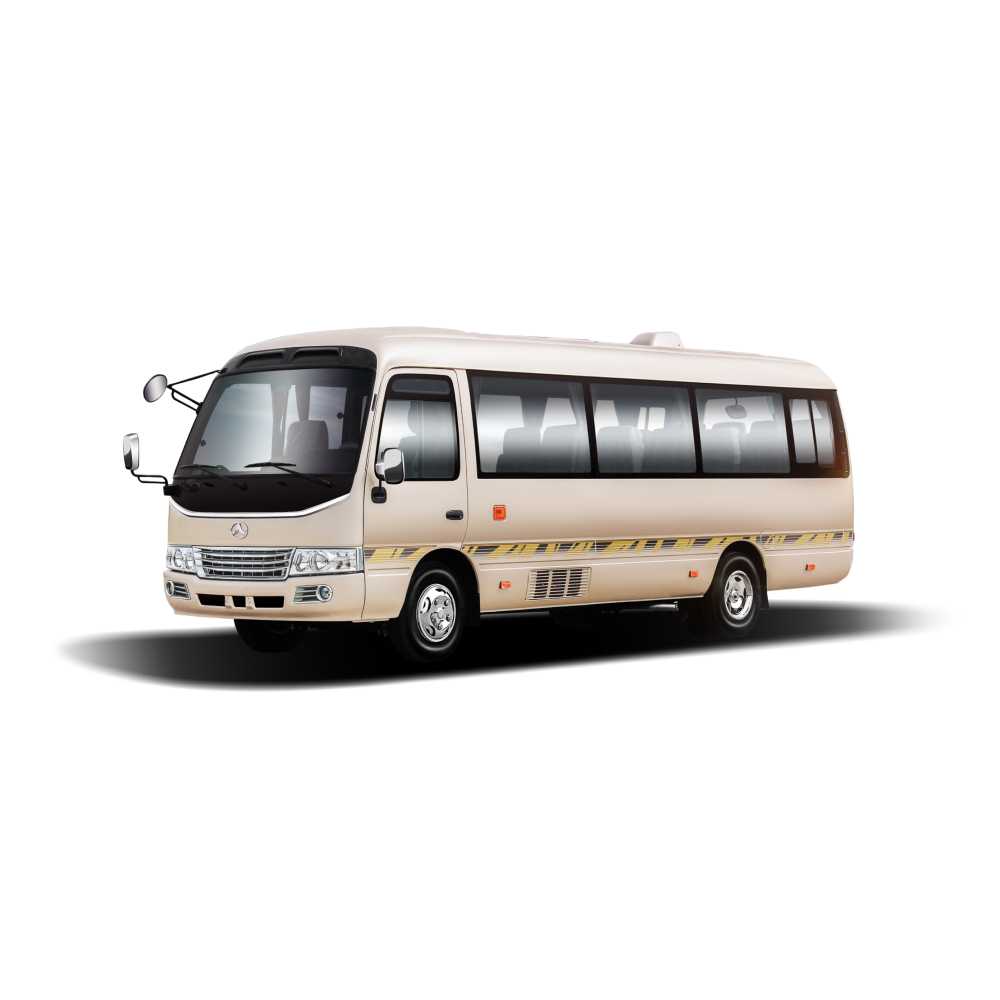

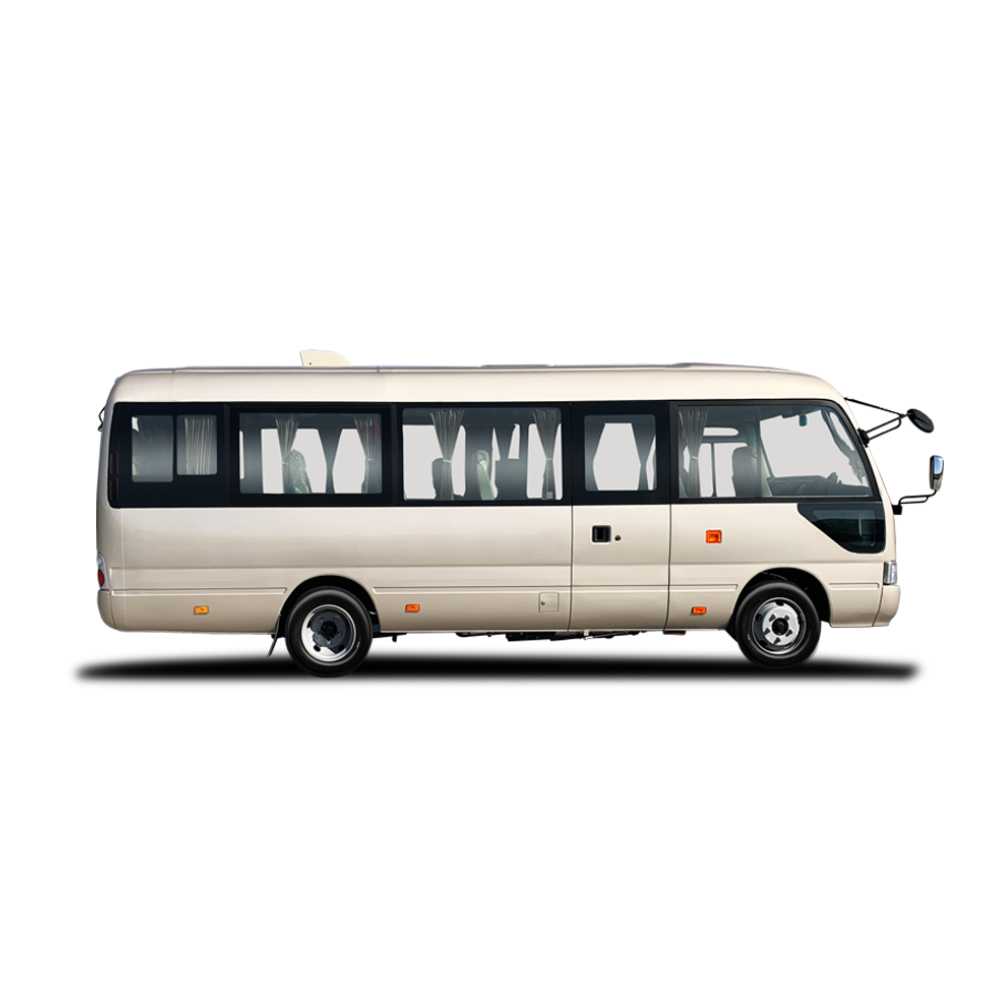

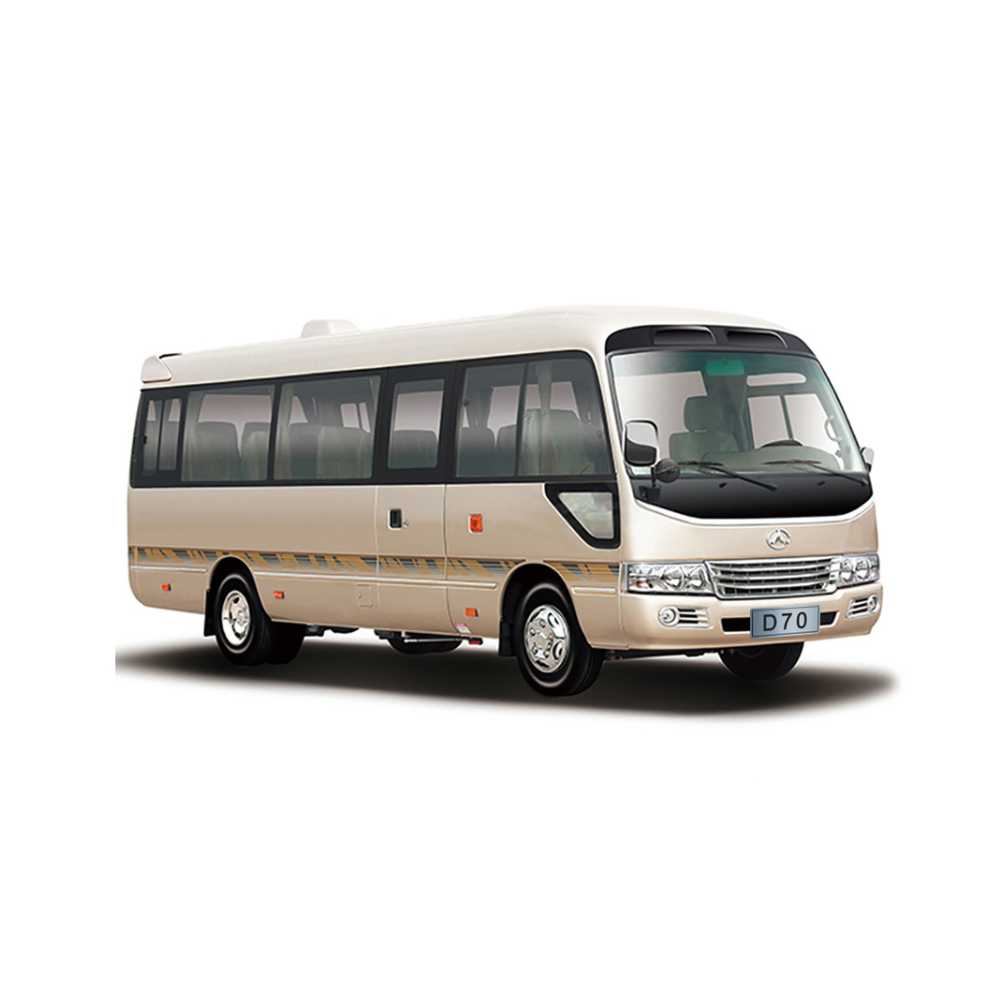

JMMC D70 7-metre 29-passenger Mid-size Bus

Name: JMMC D70 7-metre 29-passenger Mid-size Bus
Brand: JMMC
Price: 35000.0 USD
Availability: InStock

$35,000.00 USD

Basic Information

Model: JMMC D70

Category: Medium Passenger Bus

Manufacturer: JMC (Jiangling Motors Co., Ltd.)

Emission Standard: Euro IV

Seating Capacity: 23+6

Product Number: JMV6702CF4

Drive Configuration: LHD (Left Hand Drive)

Dimensions & Weights

Overall Dimensions (L×W×H):

Standard: 7005 × 2050 × 2630 mm

With Sunroof: 7005 × 2050 × 2710 mm

With Roof Exhaust Fan: 7005 × 2050 × 2820 mm

Kerb Weight: 4480 kg

Gross Vehicle Weight: 6500 kg

Luggage Compartment: 0.41 m³ (0.49 m³ with raised step)

Wheelbase: 3935 mm

Min. Ground Clearance: 190 mm

Powertrain

Engine Model: JMC JX4D30B4H

Engine Type: Inline 4-cylinder, turbocharged intercooled diesel

Displacement: 2.892 L

Max Power: 120 kW @ 2800 rpm

Max Torque: 450 N·m @ 1400-2400 rpm

Bore × Stroke: 95 mm × 102 mm

Transmission: 6-speed manual

Final Drive Ratio: 4.875

Performance

Max Speed: 100 km/h (ECU limited)

Fuel Consumption: 13 L/100 km

Fuel Tank Capacity: 90 L

Max Climbing Degree: 30%

Min Turning Diameter: 15.8 m

Approach/Departure Angle: 18°/13°

Chassis & Suspension

Brake System:

Double-circuit hydraulic vacuum

Front disc/rear drum

ABS equipped

Suspension:

Front: 3-leaf spring

Rear: 4-leaf spring

Hydraulic two-way shock absorbers

Steering: Hydraulic power steering

Tires: 7.00R16LT tubeless radial (6+1)

Tread: 1710 mm (front)/1570 mm (rear)

Body & Features

Frame: Separate frame construction

Doors: Central electric folding passenger door

Windows:

Sliding side windows

Driver's door sliding window

Paint: Plain paint (standard, up to 2 colors)

Optional Colors: Golden, white, customized

Interior Features

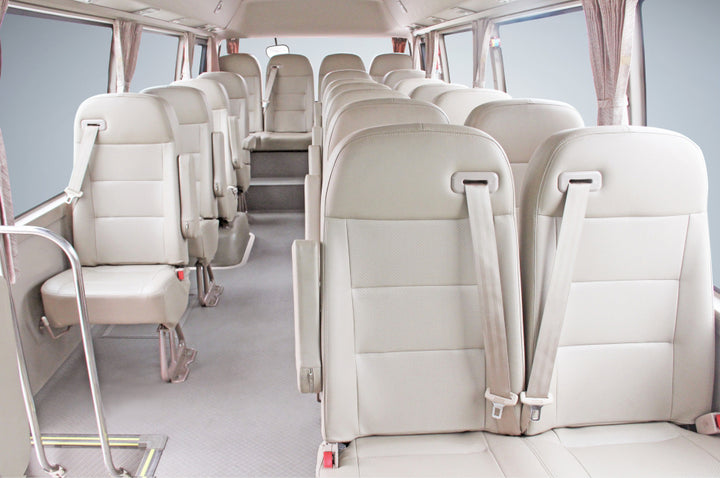

Seats: Imitation leather with armrests

Climate Control: 12,000 kcal built-in AC

Audio System: Radio + MP3 + high-quality speakers

Flooring: Anti-slip plastic

Other Features:

Adjustable steering wheel

Electronic clock

Inner rear-view mirror

Front & rear independent wipers

Electrical System

Generator: 14V/150A

Starter: 12V/2.8kW

Safety Features

Standard:

ABS

Fire extinguisher

Rear trunk

Optional:

Driving recorder

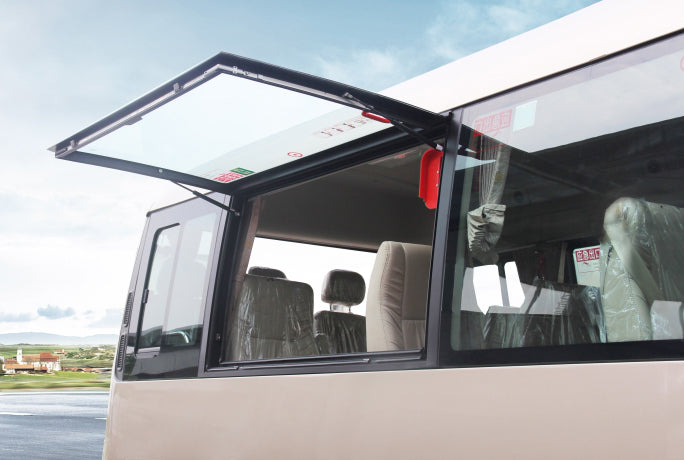

Safety roof window

Optional Equipment

Metallic paint

Stainless-steel wheel covers

Electric swing door

Rear double door

Inner luggage rack

Roof exhaust fan

Radiator/heater unit

USB charging ports

Warranty & Protection

Antirust Treatment: Full cathodic electrophoresis

Note: Specifications may vary depending on configuration and regional requirements. Optional features available at additional cost.

JMMC D70 7-metre 29-passenger Mid-size Bus

$35,000.00 USD

JMMC D70 Specifications

JMMC D70 Specifications
PN	JMMC D70	Dimension (mm)	7005 × 2050 × 2630 / 2710 / 2820
Emission	Euro IV	Seats	23 + 6
Product Number	JMV6702CF4	Fuel	Diesel
LHD / RHD	LHD	Kerb weight	4480 kg
Gross vehicle weight	6500 kg	Max. speed	100 km/h (ECU limiter)
Color	Golden, white, customized	Luggage compartment	0.41 m³ / 0.49 m³
Engine description	Inline 4-cyl turbo	Engine model	JMC JX4D30B4H
Displacement	2.892 L	Maximum output	120 kW / 2800 rpm
Maximum torque	450 N·m @ 1400–2400 rpm	Bore × stroke	95 × 102 mm
Transmission	6 MT	Clutch	Single, dry, hydraulic
Steering system	Hydraulic power	Brake system	Front disc / rear drum
Suspension	Front 3, rear 4 leaf springs	Tire	7.00R16LT tubeless
Tire QTY	6 + 1	Paint	Plain (≤2 colors)
Final drive ratio	4.875	Wheelbase	3935 mm
Tread	1710 / 1570 mm	Ground clearance	190 mm
Max. climbing	30%	Turning diameter	15.8 m
Approach / departure	18° / 13°	Shock absorber	Hydraulic 2-way
Frame	Separate	Door arrangement	Central electric folding
Air-conditioner	12 000 kcal built-in	Audio & video	Radio + MP3
Seats material	Imitation leather	Interiors	Adjustable steering, sliding windows, anti-slip floor
Body	Fire extinguisher, ABS	Generator	14 V / 150 A
Starter	12 V / 2.8 kW	Optional	Metallic paint, wheel covers, electric door, rear door, luggage rack, roof window, exhaust fan
Fuel capacity	90 L	Fuel efficiency	13 L / 100 km
