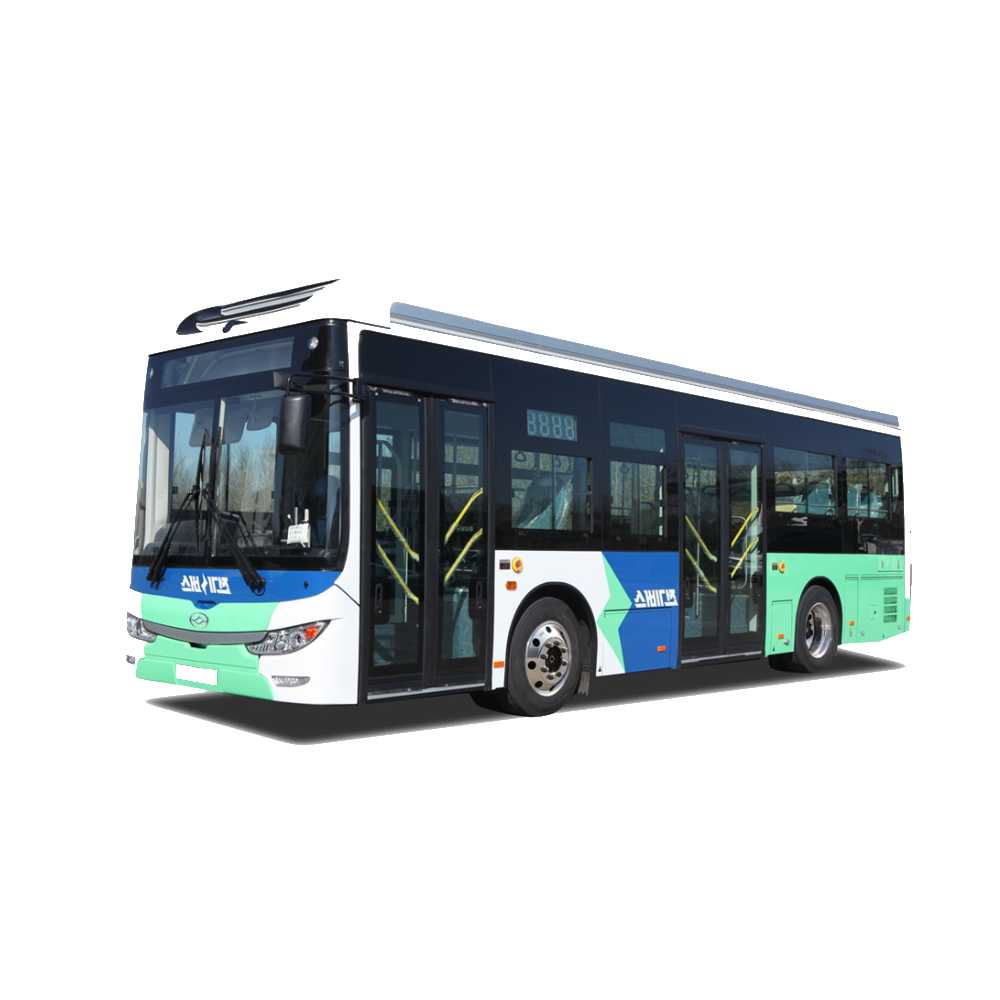

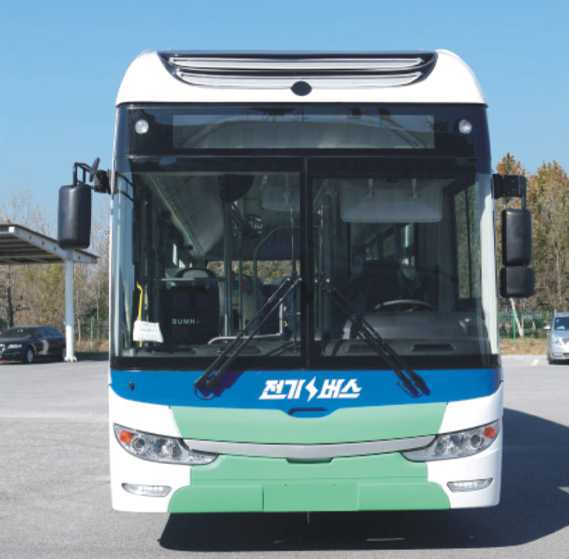

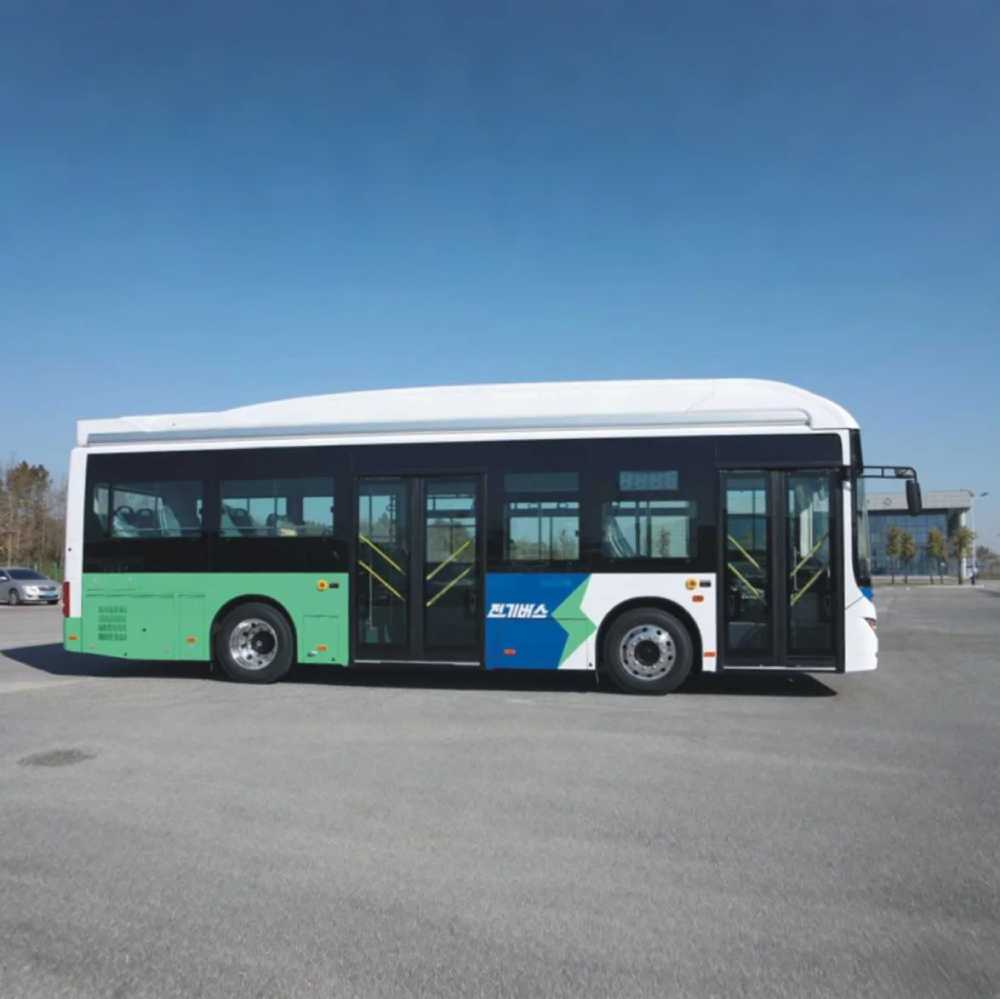

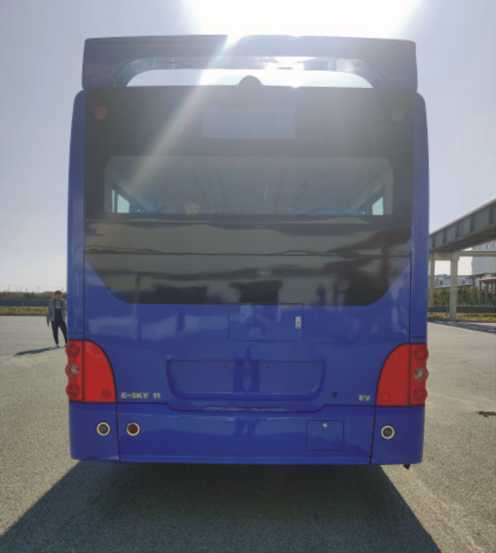

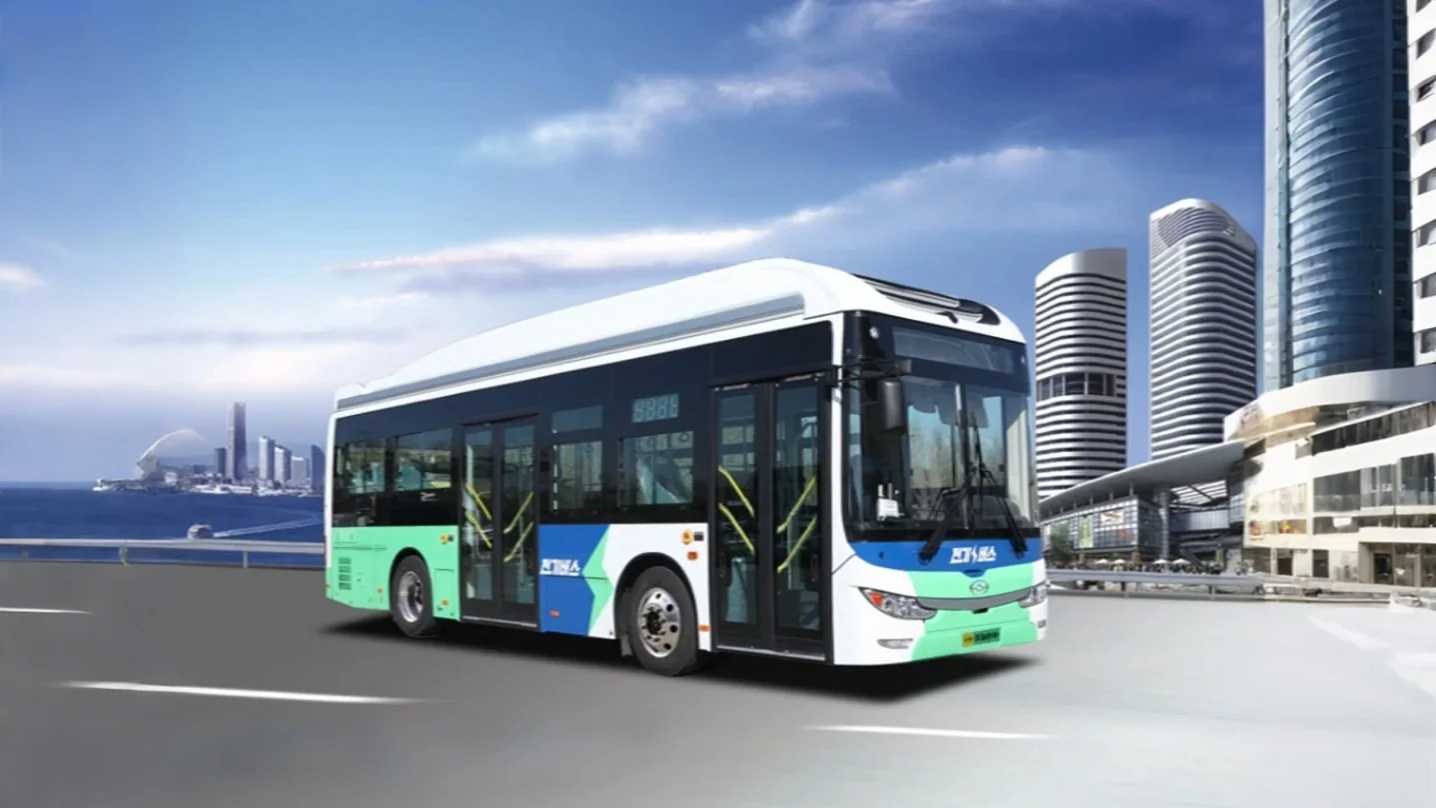

Huanghai Auto 9.6m Pure Electric Low-Entry City Bus DD6960EVE

Name: Huanghai Auto 9.6m Pure Electric Low-Entry City Bus DD6960EVE
Brand: Huanghai Auto
Price: 158717.0 USD
Availability: InStock

Huanghai Auto 9.6m Pure Electric Low-Entry City Bus DD6960EVE

$158,717.00 USD

Basic Information

Model: Huanghai DD6960EVE (黄海DD6960EVE)

Category: 9.6-meter Pure Electric Low-Entry City Bus

Manufacturer: Huanghai Auto (曙光汽车)

Key Feature: Zero-emission public transport solution

Dimensions & Weight

Length × Width × Height (mm): 9570 × 2490 × 3440

Wheelbase (mm): 4500

Suspension: Full Air Suspension

Tire Specification: 275/70R22.5

Floor Type: Low-Entry (LE) design

Curb Weight (kg): 11,060

GVWR (kg): 13,855

Body Structure: Full monocoque construction

Corrosion Protection: Cathodic electrocoating

Powertrain & Performance

Motor: Dana MD130B Permanent Magnet Synchronous Motor

Peak Power (kW): 245

Max Torque (N·m): 3,329

Top Speed: Not specified (standard bus configuration ~80 km/h)

Battery System

Battery Brand: CATL (Contemporary Amperex Technology Co. Limited)

Battery Capacity (kWh): 281.9

Range (km): 320 (under standard testing conditions)

Battery Position: Rear underfloor + roof-mounted (dual-position)

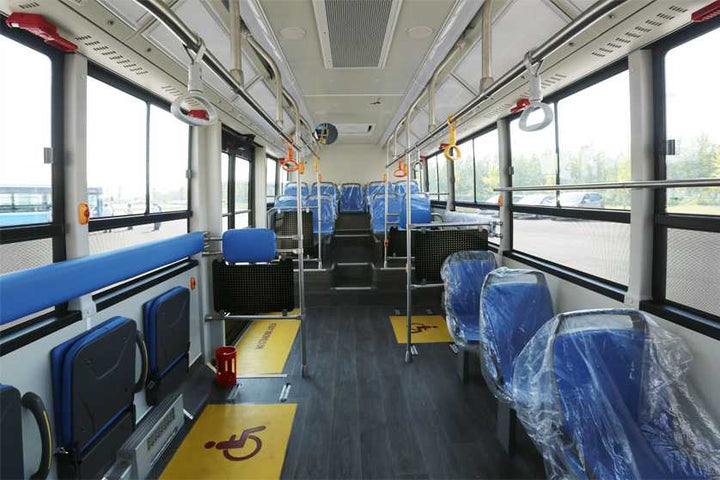

Passenger Capacity

Rated Capacity: 43 passengers

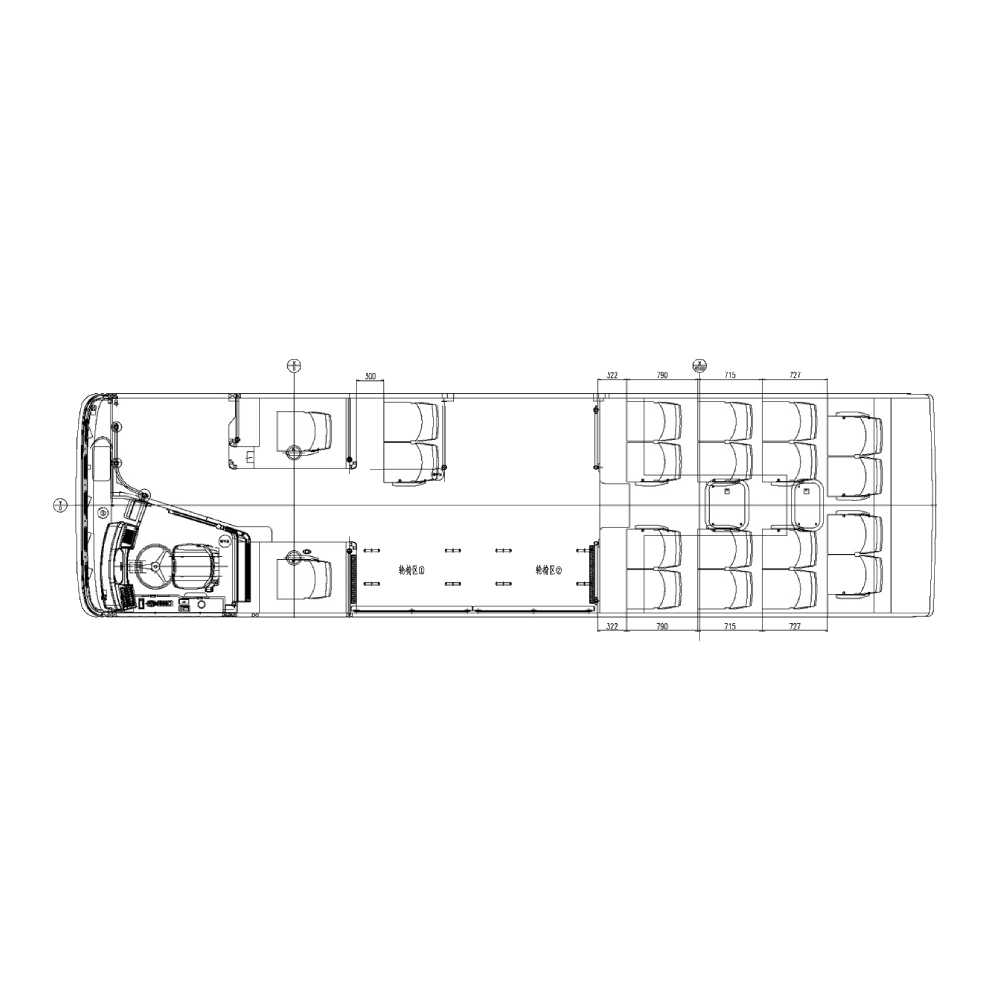

Seating Configuration: 20+1 seats (driver + 20 passengers)

Standing Room: Designed for urban transit operation

Key Features

Accessibility: Full low-entry design with no steps at doors

Energy Efficiency: Optimized battery thermal management system

Safety Systems:

Electronic braking system

ABS + ASR

Fire suppression system (optional)

Comfort Features:

Automatic climate control

LED interior lighting

Passenger counting system (optional)

Operational Parameters

Charging Interface: CCS2 or GB/T standard (region dependent)

Gradeability: ≥15% (standard for city buses)

Minimum Turning Radius: Not specified

Certification & Compliance

Meets China GB7258-2017 safety standards

Complies with urban bus emission-free regulations

Primary Application: High-capacity urban transit routes

Huanghai Auto 9.6m Pure Electric Low-Entry City Bus DD6960EVE

$158,717.00 USD

DD6960EVE Specifications

Model	DD6960EVE	Length × Width × Height (mm)	9570 × 2490 × 3440
Wheelbase (mm)	4500	Suspension	Air Suspension
Tire Size	275/70R22.5	Floor Type	Low Entry
Curb Weight (kg)	11060	Gross Vehicle Weight (kg)	13855
Body Structure Type	Monocoque	Anti-corrosion	Cathodic Electrophoresis
Battery Location	Rear Bottom + Roof	Rated Passenger Capacity	43
Number of Seats	20+1	Motor	Dana MD130B
Peak Power (kW)	245	Max Motor System Output Torque (N·m)	3329
Battery	CATL	Battery Capacity (kWh)	281.9
Range (km)	320
