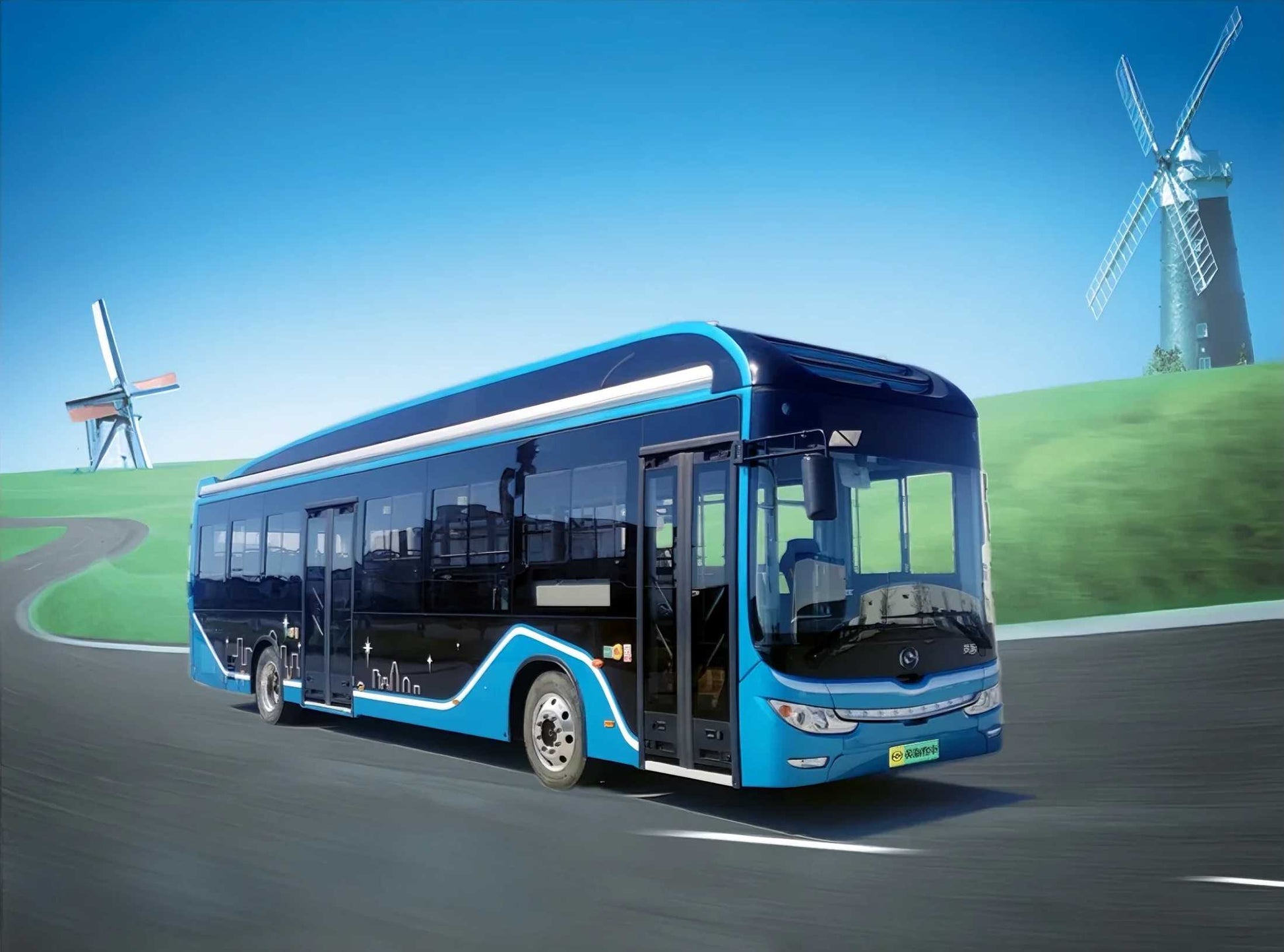

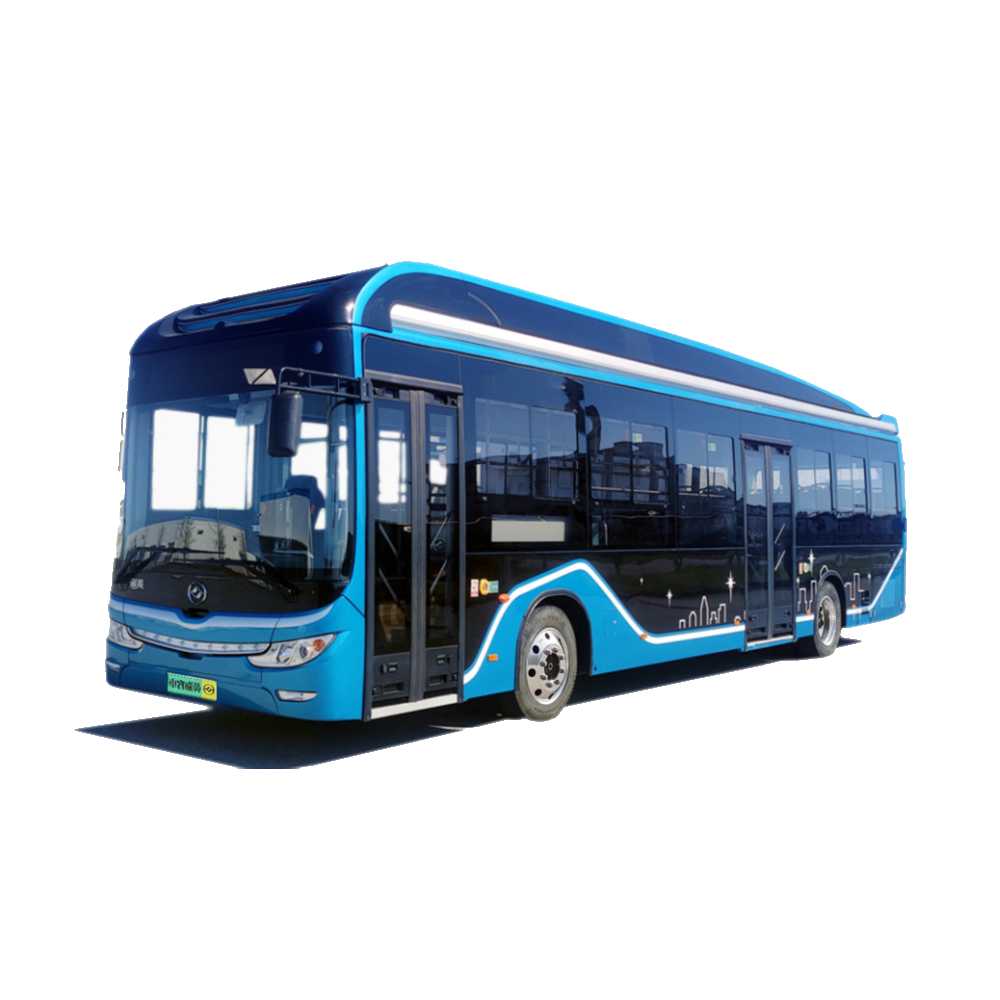

Huanghai Auto 12-meter Pure Electric Bus DD6129EV23

Name: Huanghai Auto 12-meter Pure Electric Bus DD6129EV23
Brand: Huanghai Auto
Price: 242252.0 USD
Availability: InStock

Huanghai Auto 12-meter Pure Electric Bus DD6129EV23

$242,252.00 USD

Basic Information

Model: Huanghai DD6129EV23 (黄海DD6129EV23)

Category: 12-meter Pure Electric Low-Entry/Step City Bus

Manufacturer: Huanghai Auto (丹东黄海)

Market Position: High-capacity urban transit solution

Dimensions & Weight

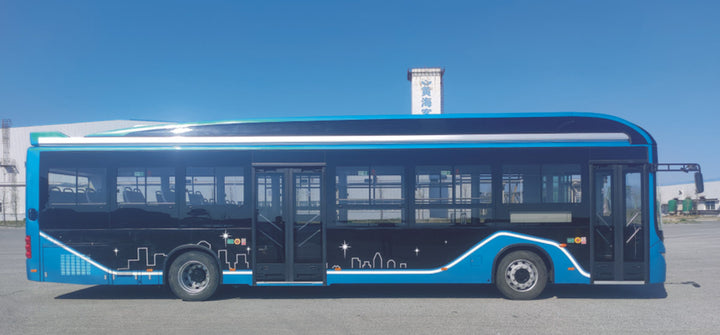

Length × Width × Height (mm): 12000 × 2550 × 3350/3470

Wheelbase (mm): 6100

Suspension: Full Air Suspension

Tire Specification: 275/70R22.5

Floor Configuration: Low-Entry or 2-Step (configurable)

Curb Weight (kg): 11,300/11,700 (variant-dependent)

GVWR (kg): 18,000

Body Structure: Full monocoque construction

Corrosion Protection: Cathodic electrocoating

Powertrain & Performance

Motor:

Model: TZ380XS28HH Permanent Magnet Synchronous Motor

Manufacturer: Huanghai-Dandong

Peak Power (kW): 240

Max Torque (N·m): 2,800

Top Speed: 69 km/h (electronically limited)

Gradeability: ≥15%

Battery System

Battery Brand: CATL (宁德时代)

Battery Capacity (kWh): 157.5

Range (km): 150 (under urban cycle conditions)

Battery Position: Rear underfloor + roof-mounted

Energy Consumption: ≈1.05 kWh/km

Passenger Capacity

Rated Capacity: 101/95 passengers (max/standard)

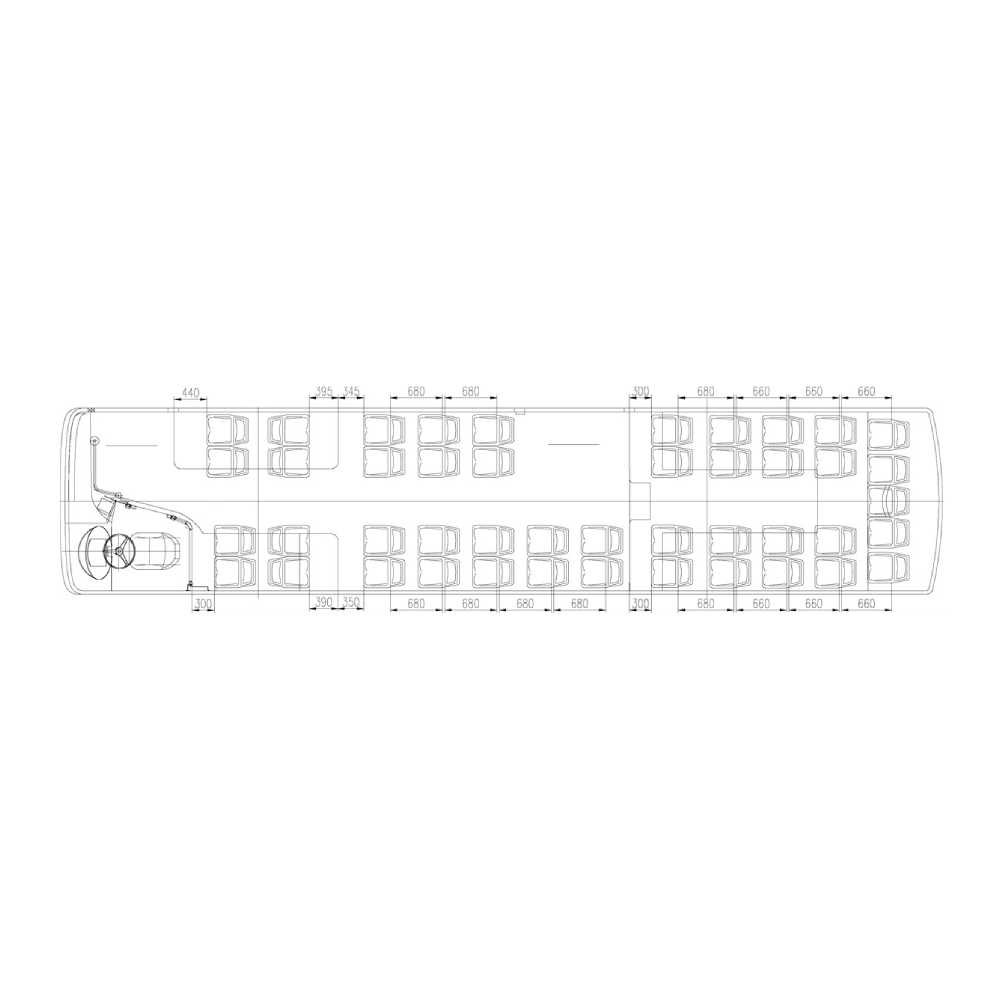

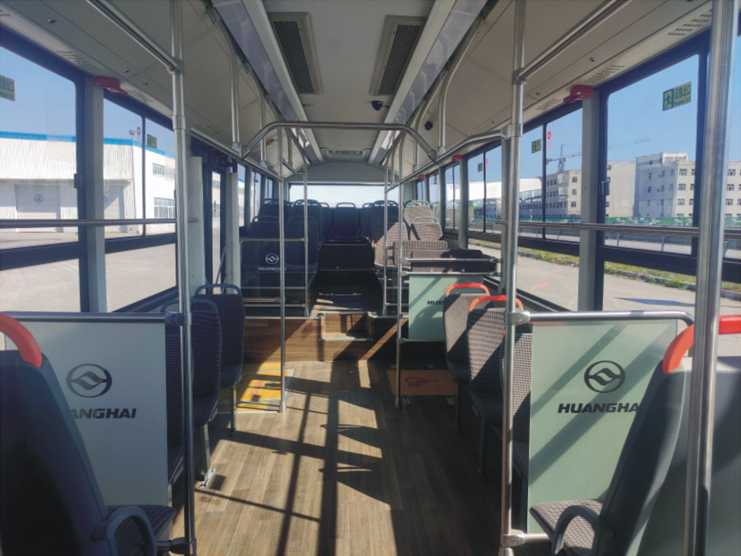

Seating Configuration: 22-46 seats (flexible layouts)

Standing Area: Optimized for high-density routes

Key Features

Dual Floor Options:

Low-entry front section (for improved accessibility)

2-step rear section (for structural flexibility)

Advanced Drivetrain:

Liquid-cooled motor system

Regenerative braking recovery efficiency ≥25%

Operational Flexibility:

Suitable for BRT applications

Dual-door/three-door configurations available

Safety Systems:

Electronic Stability Program (ESP)

Driver fatigue monitoring

Automatic fire suppression

Certifications & Compliance

Meets China GB/T 31498-2021 electric bus safety standards

Complies with urban public transport EN 15207 requirements

Eligible for Chinese NEV subsidies (Category: Large Pure Electric Bus)

Huanghai Auto 12-meter Pure Electric Bus DD6129EV23

$242,252.00 USD

Vehicle Model	DD6129EV23	Dimensions (L×W×H, mm)	12000 × 2550 × 3350, 3470
Wheelbase (mm)	6100	Suspension	Air Suspension
Tire Specification	275/70R22.5	Floor Type	Low Entry / Two-step
Curb Weight (kg)	11300 / 11700	GVW (kg)	18000
Body Structure	Monocoque	Anti-corrosion	Cathodic Electrophoresis
Battery Location	Rear Bottom + Roof	Rated Passenger Capacity	101 / 95
Seats	22 – 46	Motor	Dandong Huanghai TZ380XS28HH
Peak Power (kW)	240	Max. Torque (N·m)	2800
Battery	CATL	Battery Capacity (kWh)	157.5
Range (km)	150
