Huanghai Auto 11-meter Pure Electric Low-Entry Bus DD6119EVE1

Name: Huanghai Auto 11-meter Pure Electric Low-Entry Bus DD6119EVE1
Brand: Huanghai Auto
Price: 208941.0 USD
Availability: InStock

Huanghai Auto 11-meter Pure Electric Low-Entry Bus DD6119EVE1

$208,941.00 USD

Basic Information

Model: Huanghai DD6119EVE1 (黄海DD6119EVE1)

Category: 11-meter Pure Electric Low-Entry City Bus

Manufacturer: Huanghai Auto (曙光汽车)

Key Innovation: Dual-motor system with 2-speed transmission

Dimensions & Weight

Length × Width × Height (mm): 10970 × 2490 × 3440

Wheelbase (mm): 5500

Suspension: Full Air Suspension

Tire Specification: 275/70R22.5

Floor Type: Low-Entry design

Curb Weight (kg): 12,290

GVWR (kg): 15,865

Body Structure: Full monocoque construction

Corrosion Protection: Cathodic electrocoating

Powertrain & Performance

Motor System:

Configuration: TED3960 Dual Motors + 2-speed transmission (Green Control Tech)

Peak Power (kW): 320 (combined)

Max Torque (N·m): 5,720 (combined)

Top Speed: ≈80 km/h (electronically limited)

Gradeability: ≥20%

Battery System

Battery Brand: CATL (Contemporary Amperex Technology)

Battery Capacity (kWh): 350

Range (km): 370 (CLTC)

Battery Position: Rear underfloor + roof-mounted

Energy Consumption: ≈0.95 kWh/km (typical urban operation)

Passenger Capacity

Rated Capacity: 55 passengers

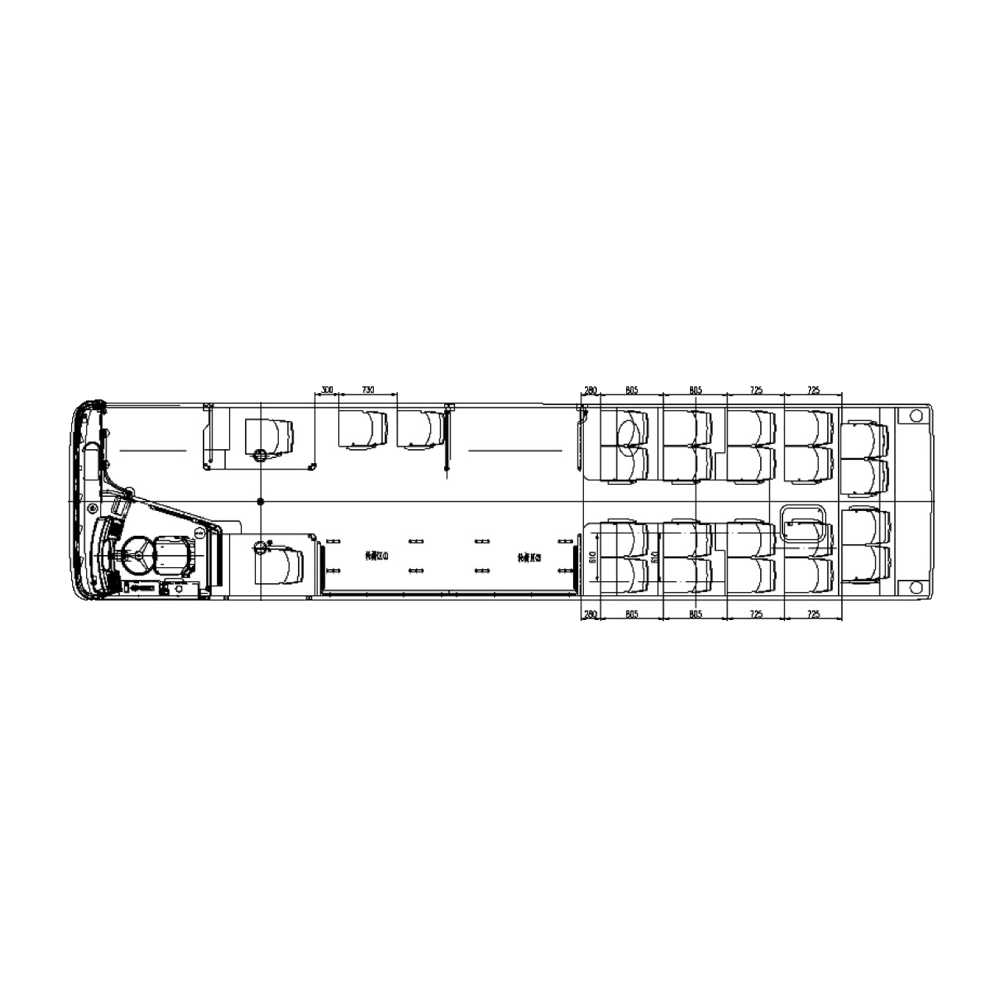

Seating Configuration: 26+1 (driver + 26 passengers)

Standing Room: Optimized for rapid transit

Advanced Features

Dual-Motor Advantage:

Improved acceleration (0-40km/h in <10s)

Enhanced hill-climbing capability

Optimal efficiency at various speeds

Smart Systems:

Predictive energy management

Cloud-connected diagnostics

OTA update capability

Accessibility:

Wheelchair ramp (optional)

Priority seating areas

Safety:

AEBS (Advanced Emergency Braking)

Lane Departure Warning

360° camera system

Operational Parameters

Standard: GB/T 27930

Fast charge: 0-80% in 1.5 hours

Turning Radius: ≤11.5m

Service Life: Designed for 12-year operation

Certifications

Meets China GB/T 18384-2020 EV safety standards

Complies with Bus Rapid Transit (BRT) requirements

Certified for new energy vehicle subsidies

Huanghai Auto 11-meter Pure Electric Low-Entry Bus DD6119EVE1

$208,941.00 USD

Model	DD6109EV51	Dimensions (L×W×H, mm)	10500×2550×3350, 3470
Wheelbase (mm)	5750	Suspension	Air Suspension
Tires	275/70R22.5	Floor Type	Low Entry
Curb Weight (kg)	10600 / 11200 / 11800	Gross Weight (kg)	18000
Body Structure	Full Monocoque	Anti-corrosion	Cathodic Electrocoating
Battery Position	Rear Bottom + Roof	Passenger Capacity	90 / 80 persons
Seating Capacity	19–40 seats	Motor	TZ380XS25HH
Peak Power (kW)	240	Max Torque (N·m)	2500
Battery	CATL	Battery Capacity (kWh)	310.66 (BC5)
Range (km)	330
