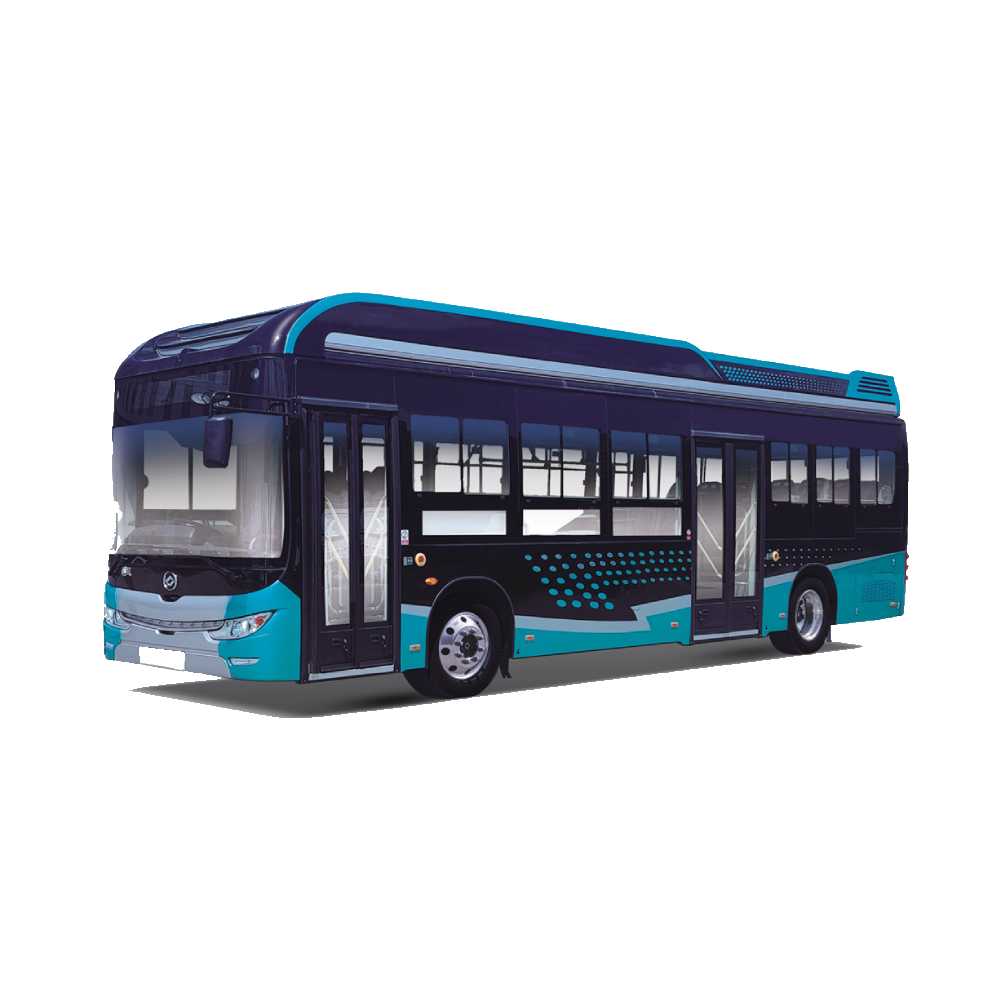

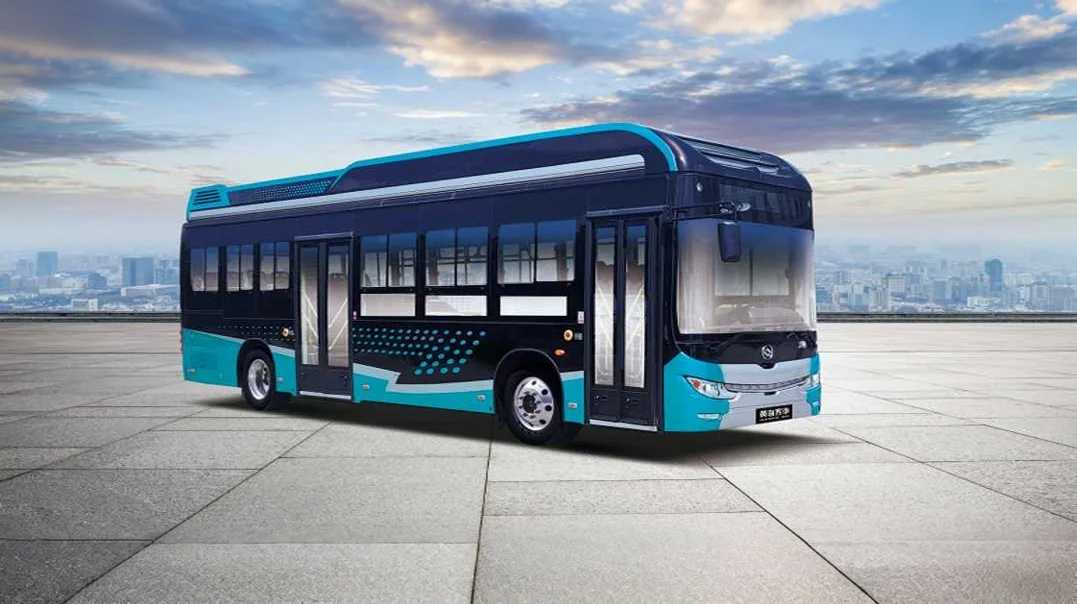

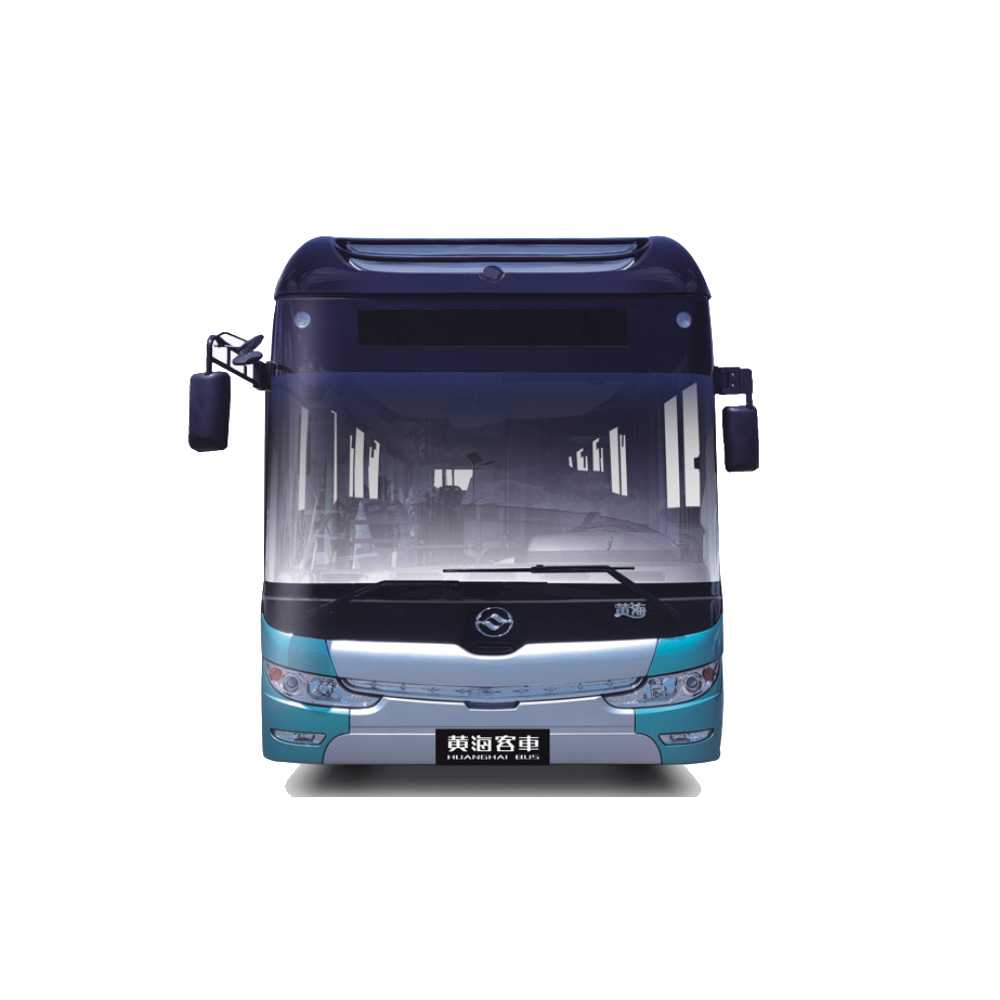

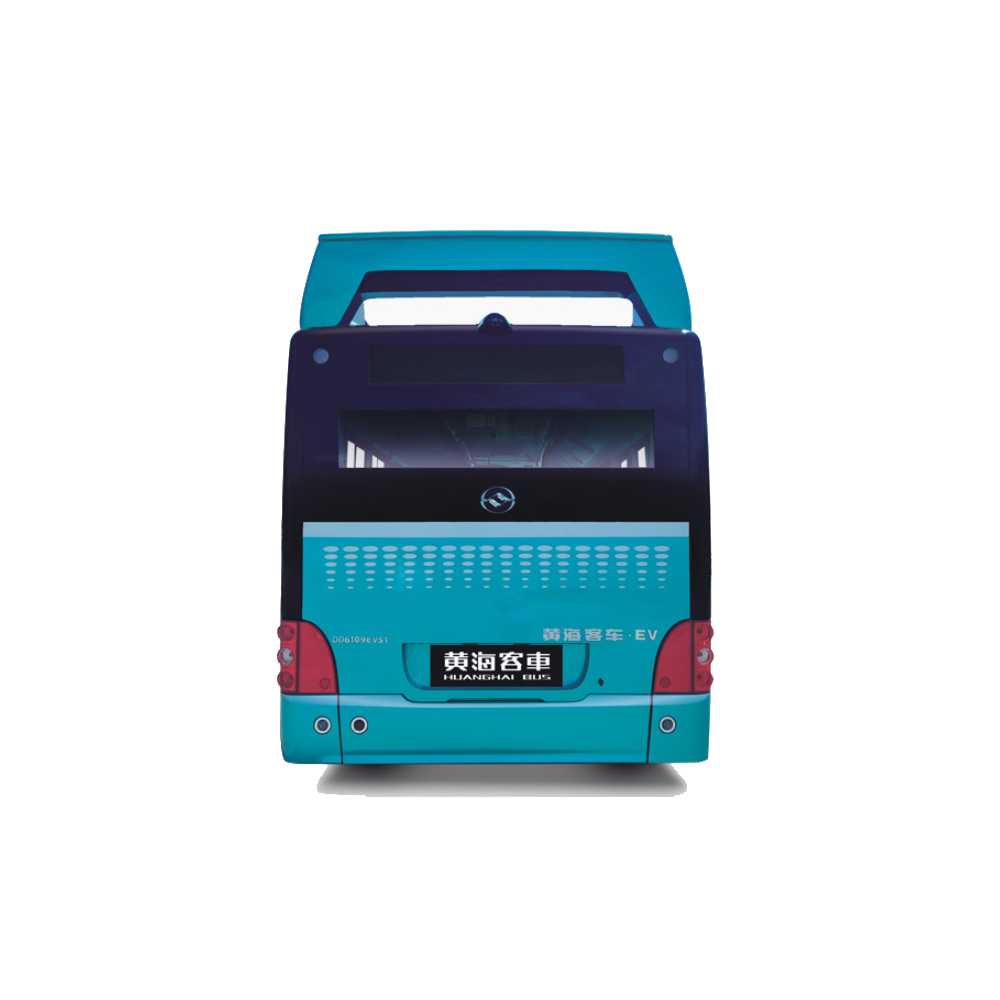

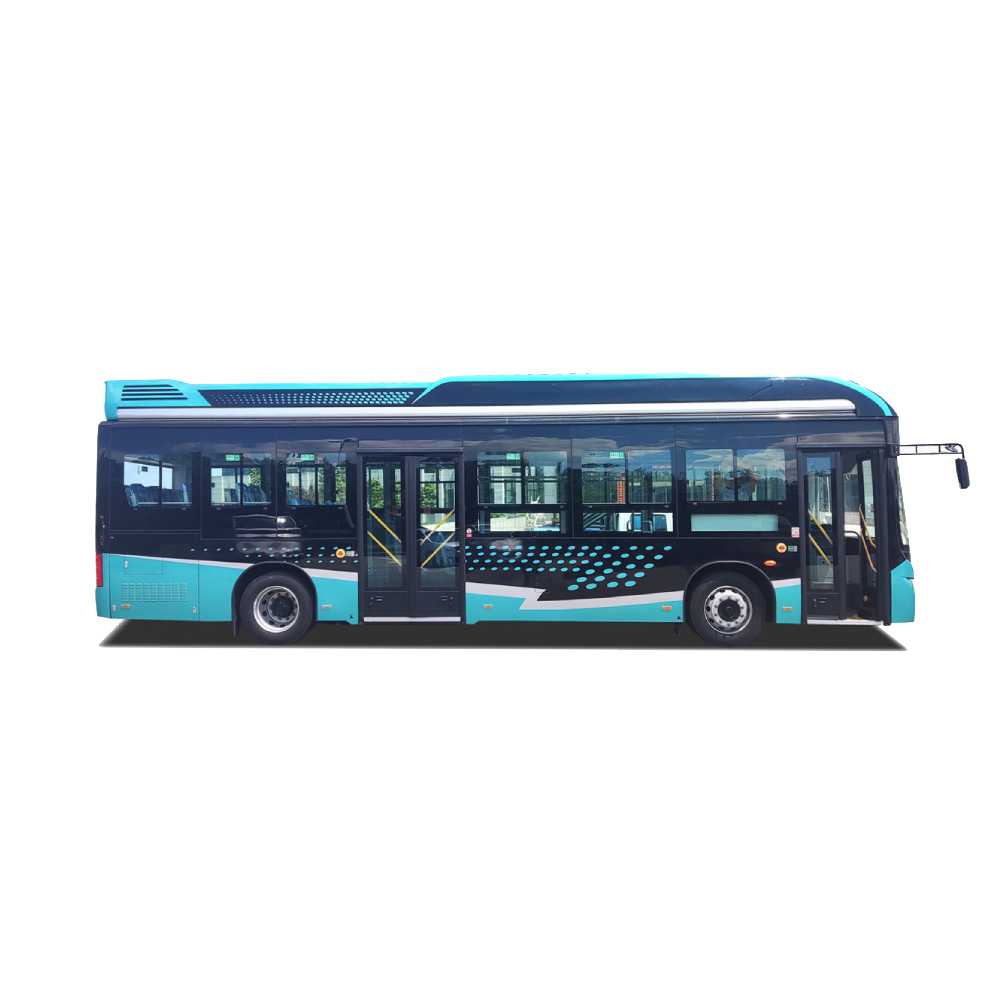

Huanghai Auto 10.5m Pure Electric Low-Entry Bus DD6109EV51

Name: Huanghai Auto 10.5m Pure Electric Low-Entry Bus DD6109EV51
Brand: Huanghai Auto
Price: 180525.0 USD
Availability: InStock

Huanghai Auto 10.5m Pure Electric Low-Entry Bus DD6109EV51

$180,525.00 USD

Basic Information

Model: Huanghai DD6109EV51 (黄海DD6109EV51)

Category: 10.5-meter Pure Electric Low-Entry City Bus

Manufacturer: Huanghai Auto (曙光汽车)

Key Feature: High-capacity zero-emission transit solution

Dimensions & Weight

Length × Width × Height (mm): 10500 × 2550 × 3350/3470

Wheelbase (mm): 5750

Suspension: Full Air Suspension

Tire Specification: 275/70R22.5

Floor Type: Low-Entry (LE) design

Curb Weight (kg): 10,600/11,200/11,800 (variant-dependent)

GVWR (kg): 18,000

Body Structure: Full monocoque construction

Corrosion Protection: Cathodic electrocoating

Powertrain & Performance

Motor: TZ380XS25HH Permanent Magnet Synchronous Motor

Peak Power (kW): 240

Max Torque (N·m): 2,500

Top Speed: ≈80 km/h (standard bus configuration)

Battery System

Battery Brand: CATL (Contemporary Amperex Technology Co. Limited)

Battery Model: BC5

Battery Capacity (kWh): 310.66

Range (km): 330 (under standard testing conditions)

Battery Position: Rear underfloor + roof-mounted (dual-position)

Passenger Capacity

Rated Capacity: 90/80 passengers (standing/sitting configuration)

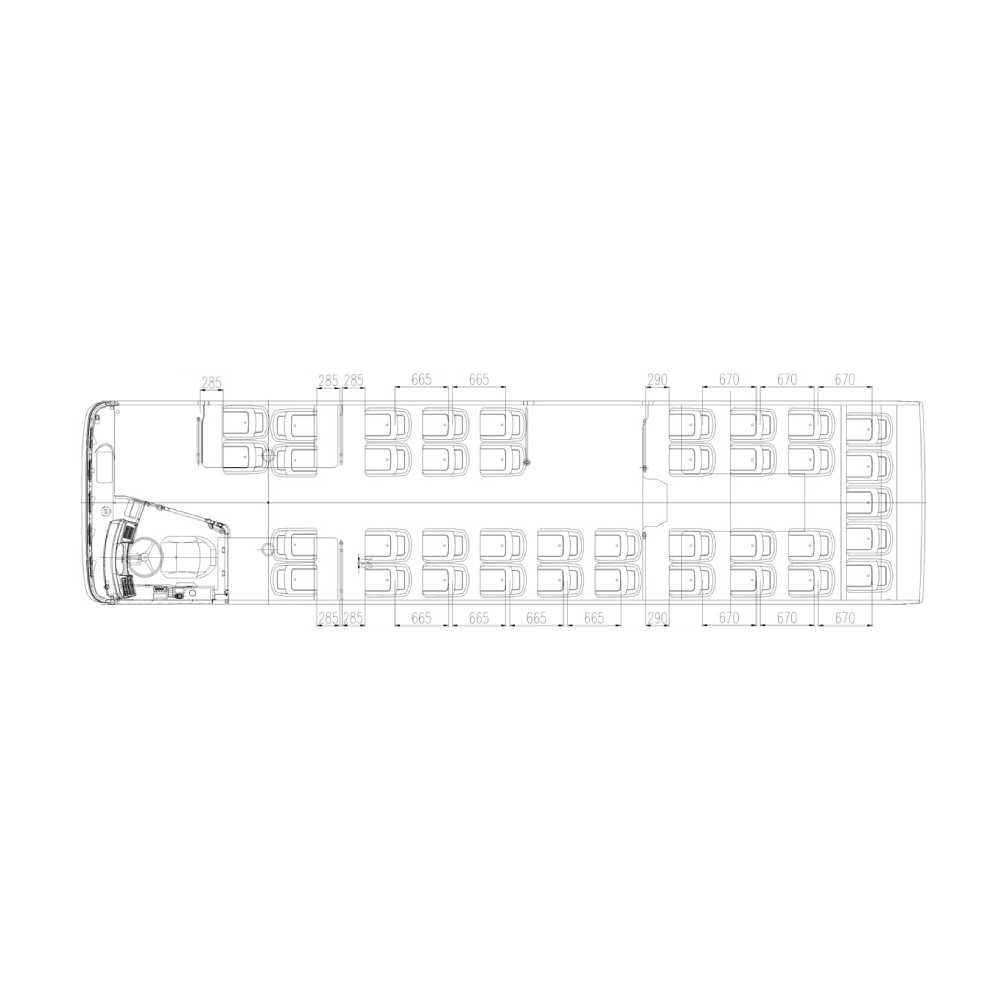

Seating Configuration: 19-40 seats (flexible layout)

Standing Room: Optimized for peak-hour transit

Key Features

Accessibility:

Full low-entry design with kneeling function

Wheelchair area with securement points

Energy Efficiency:

Regenerative braking system

Intelligent power management

Safety Systems:

Electronic stability control (ESC)

360° camera system

Automatic fire suppression

Comfort Features:

Automatic climate control

USB charging ports

LCD passenger information system

Operational Parameters

Charging Standard: GB/T 20234 (China)

Gradeability: ≥15%

Minimum Turning Radius: ≤11m

Certification & Compliance

Meets China GB7258-2017 safety standards

Certified for new energy vehicle subsidies

Complies with urban bus accessibility requirements

Huanghai Auto 10.5m Pure Electric Low-Entry Bus DD6109EV51

$180,525.00 USD

Model	DD6109EV51	Dimensions (L×W×H, mm)	10500×2550×3350, 3470
Wheelbase (mm)	5750	Suspension	Air Suspension
Tires	275/70R22.5	Floor Type	Low Entry
Curb Weight (kg)	10600 / 11200 / 11800	Gross Weight (kg)	18000
Body Structure	Full Monocoque	Anti-corrosion	Cathodic Electrocoating
Battery Position	Rear Bottom + Roof	Passenger Capacity	90 / 80 persons
Seating Capacity	19–40 seats	Motor	TZ380XS25HH
Peak Power (kW)	240	Max Torque (N·m)	2500
Battery	CATL	Battery Capacity (kWh)	310.66 (BC5)
Range (km)	330

Huanghai Auto 10.5m Pure Electric Low-Entry Bus DD6109EV51

Huanghai Auto 10.5m Pure Electric Low-Entry Bus DD6109EV51
