Basic Information

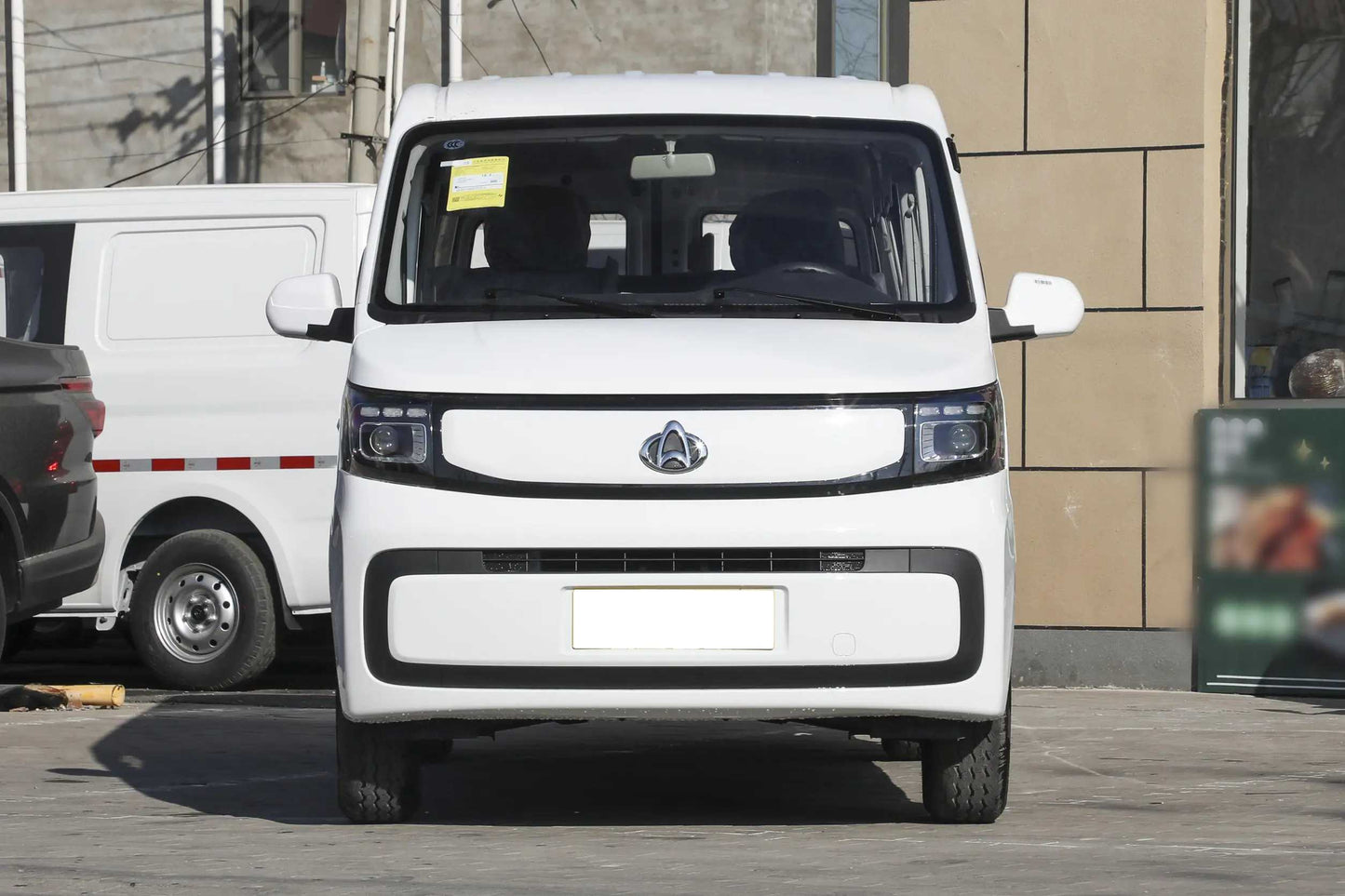

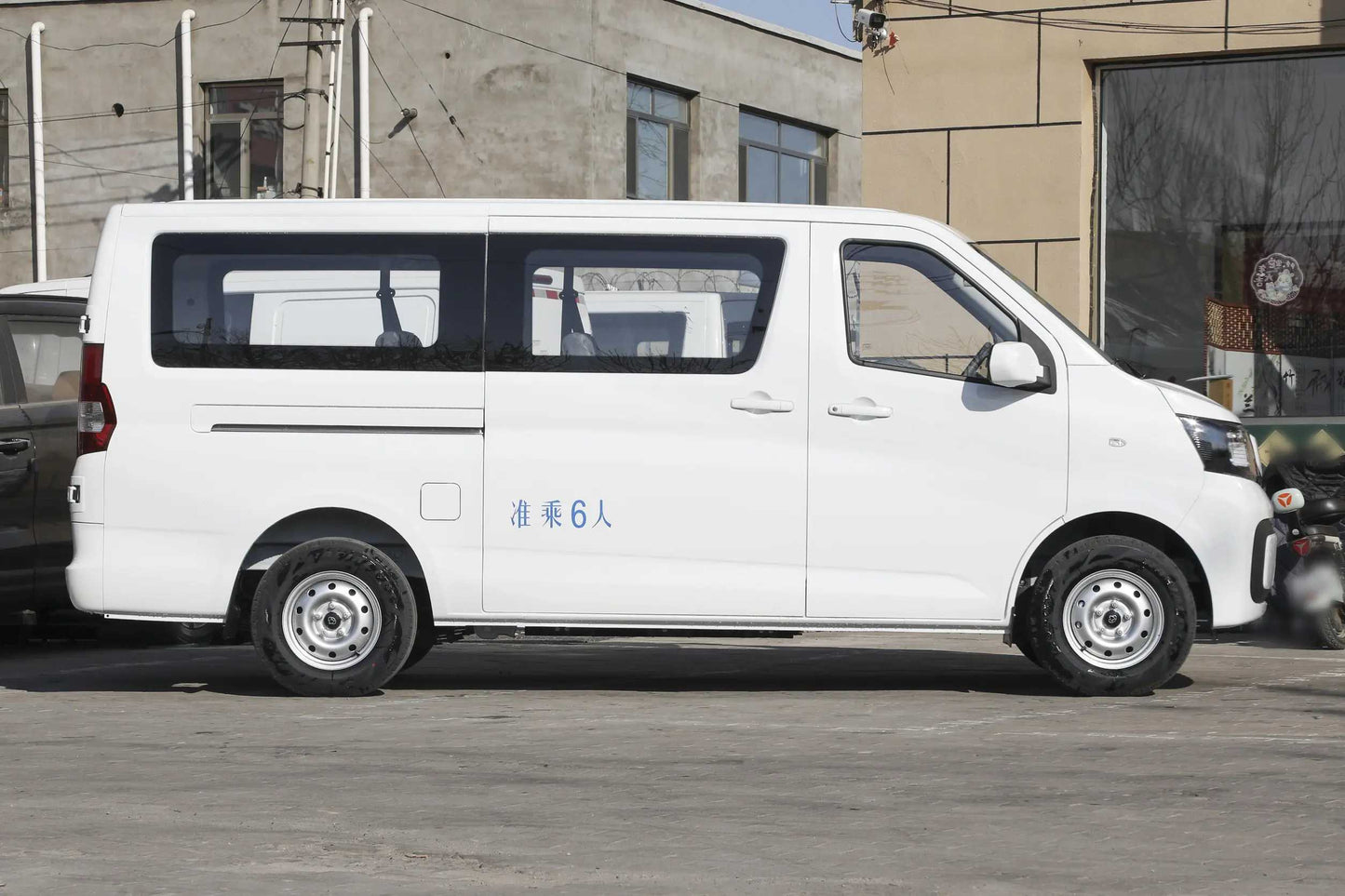

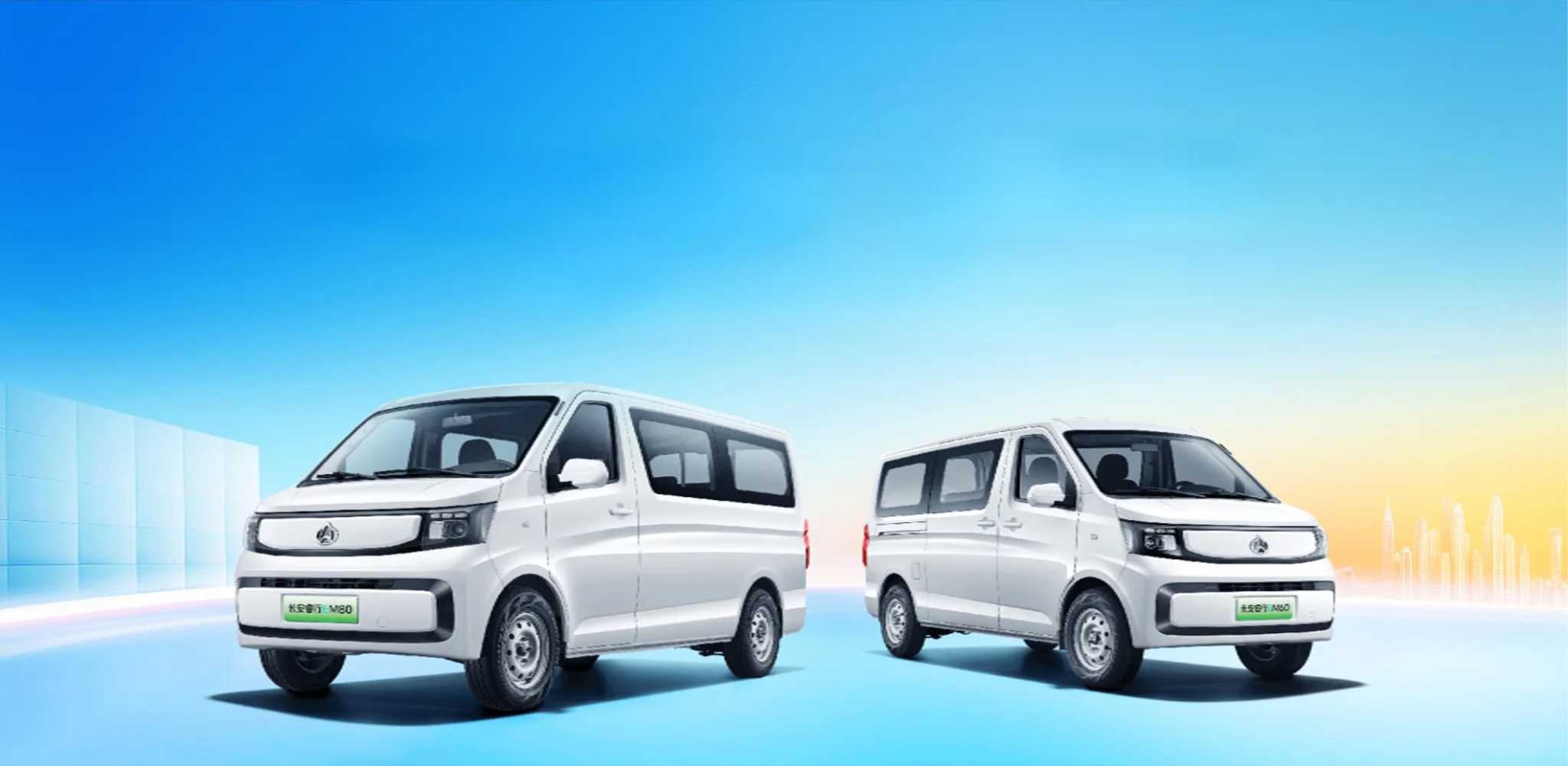

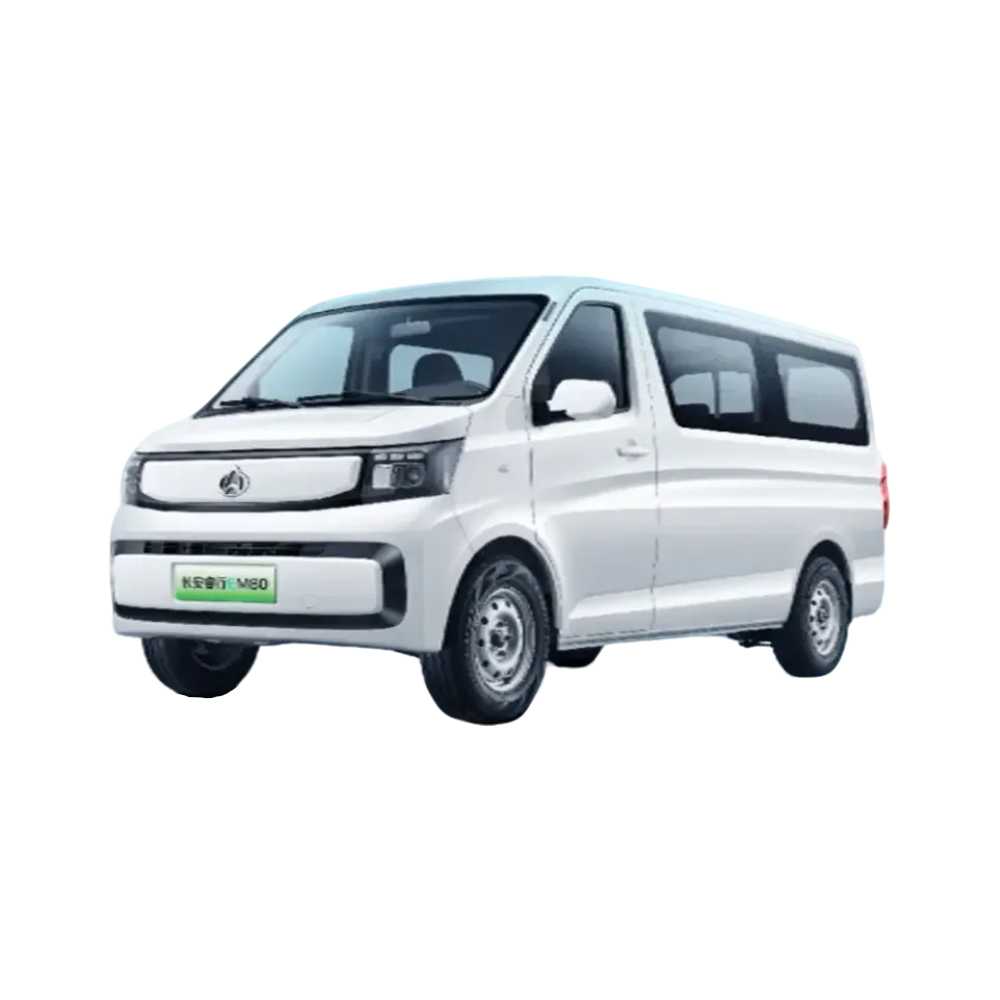

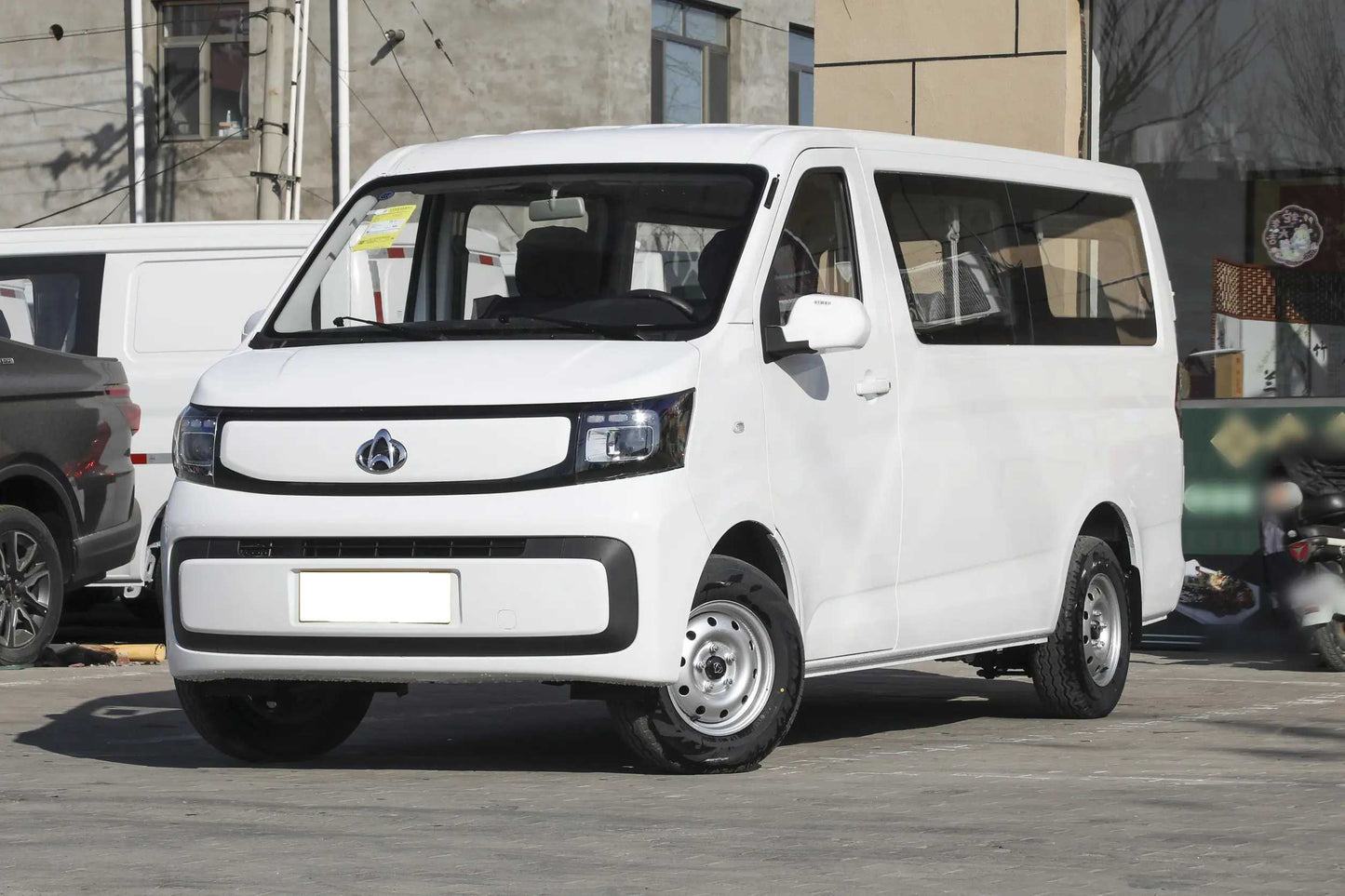

Model: Changan Kaicheng Ruixing EM80 (长安凯程睿行EM80)
Category: All-Electric Light Commercial Van
Manufacturer: Changan Automobile
Market Position: Urban last-mile delivery solution
Launch Year: 2023
Dimensions & Weight
Length × Width × Height: 4805×1715×2200 mm
Wheelbase: 3050 mm
Front/Rear Track: 1445/1435 mm
Curb Weight: 1680 kg
Gross Vehicle Weight: 2800 kg
Max Payload: 1120 kg
Ground Clearance: 160 mm
Electric Powertrain
Motor Type: Permanent Magnet Synchronous Motor
Max Power: 90 kW
Peak Torque: 230 N·m
Transmission: Single-speed reduction gear
Drive Type: Front-wheel drive
Battery & Charging
Battery Type: Lithium Iron Phosphate (LFP)
Battery Capacity: 50.3 kWh
Range (CLTC): 300 km
Energy Consumption: 16.5 kWh/100 km
Charging Time:
DC Fast Charge: 0-80% in 45 minutes
AC Slow Charge: 0-100% in 8 hours
Battery Warranty: 8 years/400,000 km
Performance
Max Speed: 100 km/h (electronically limited)
0-50 km/h Acceleration: 6.5 seconds
Gradeability: 25%
Recuperation: Regenerative braking with 3 levels
Chassis & Suspension
Suspension:
Front: MacPherson independent
Rear: Leaf spring with shock absorbers
Braking System:
Front: Ventilated discs
Rear: Drum brakes
Regenerative braking system
Steering: Electric power steering
Tire Size: 185 R14 LT (reinforced)

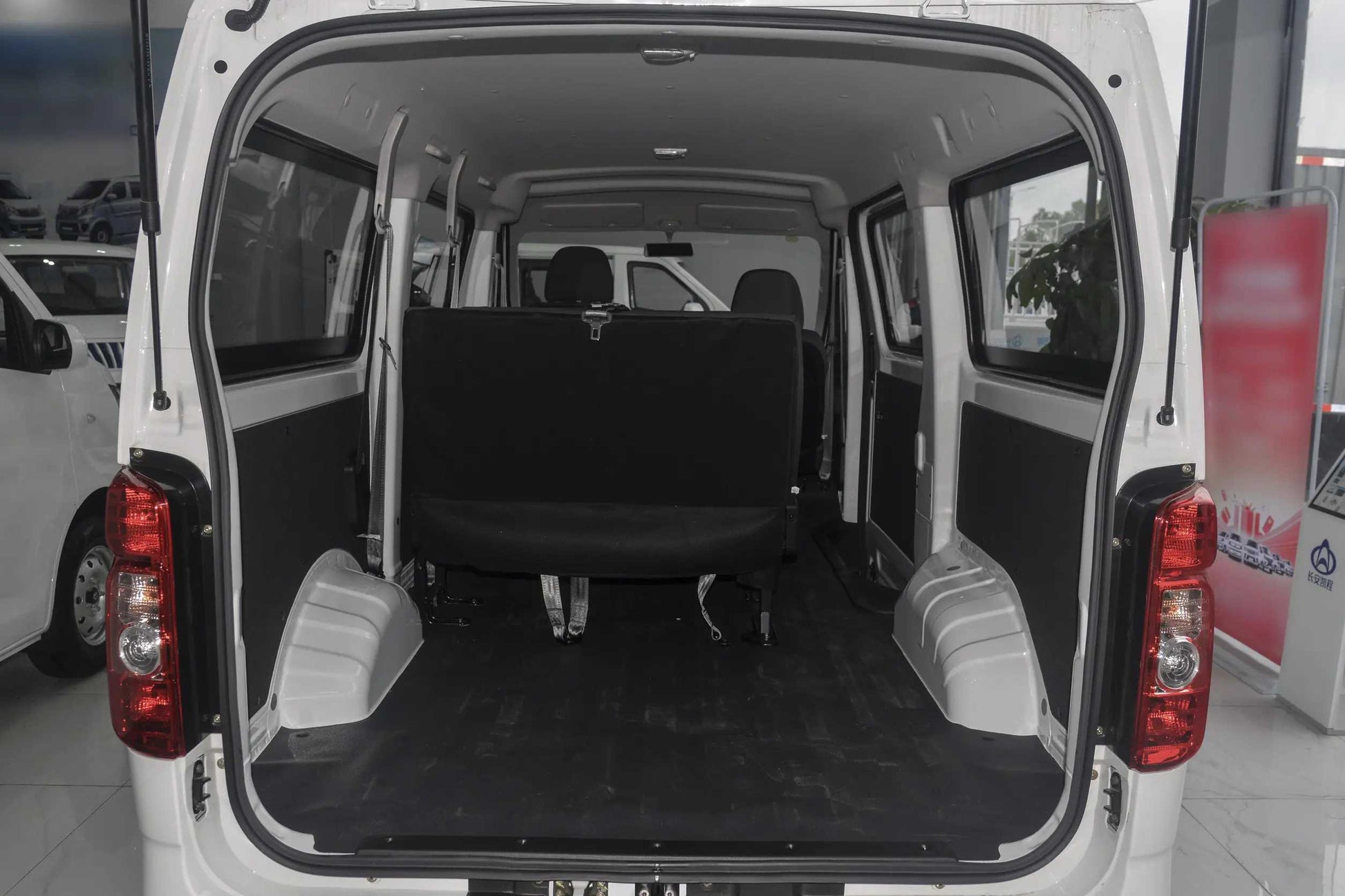

Cargo Capacity
Cargo Volume: 6.5 m³
Cargo Dimensions: 2800×1550×1350 mm
Load Compartment Height: 1350 mm
Rear Door Opening:
Width: 1260 mm
Height: 1320 mm
Loading Height: 580 mm
Payload Distribution: 700 kg (rear), 420 kg (front)

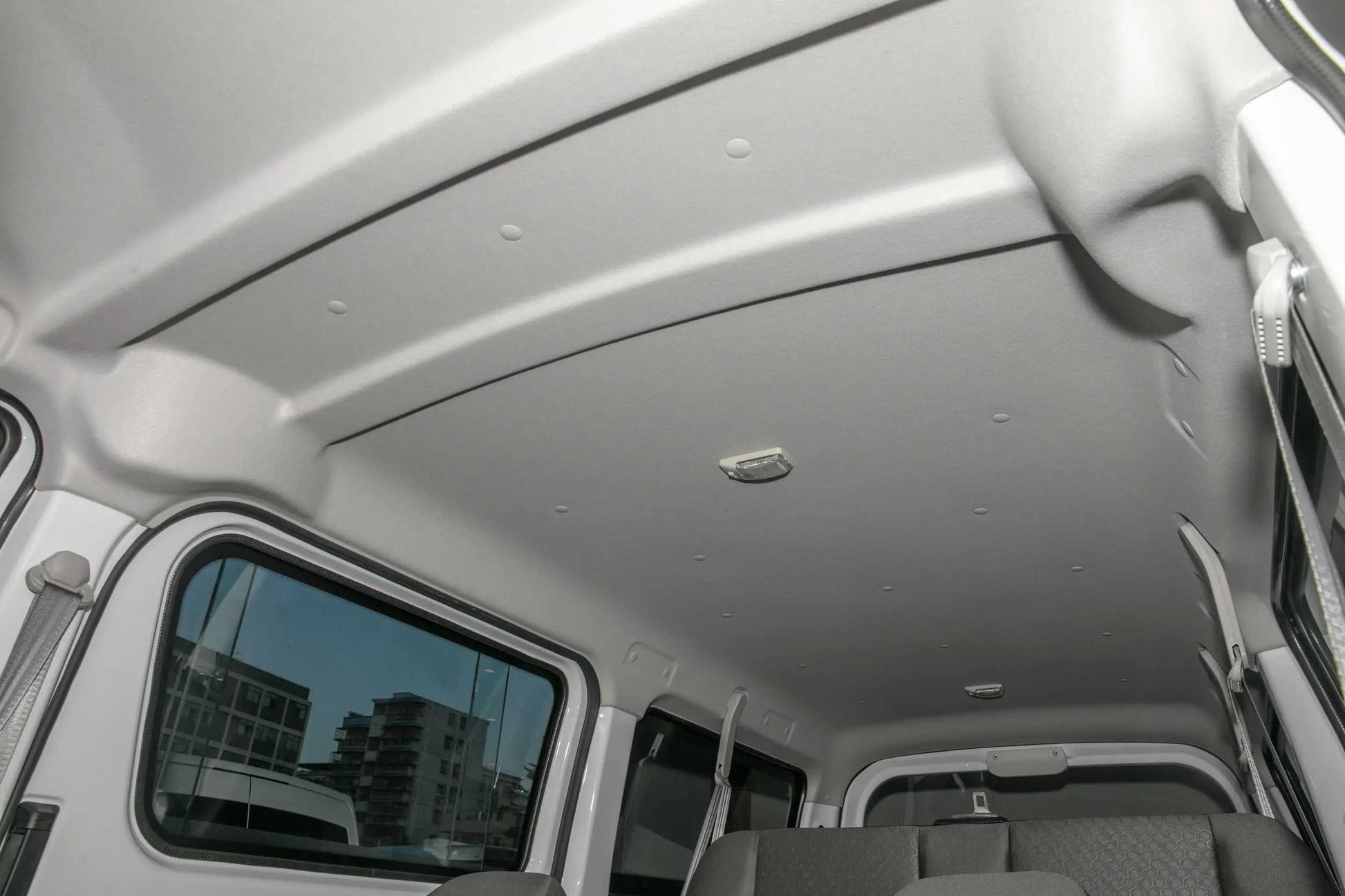

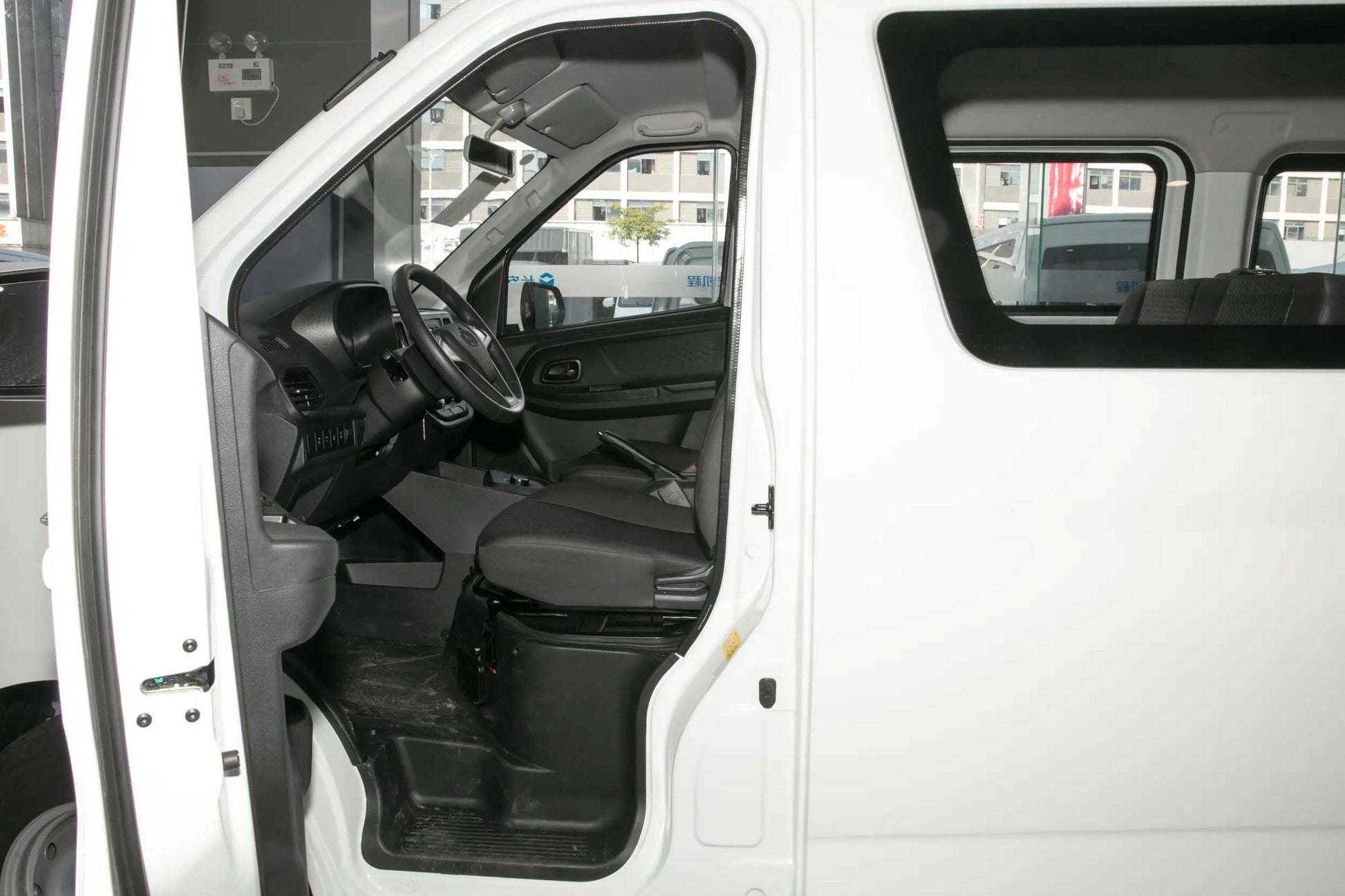

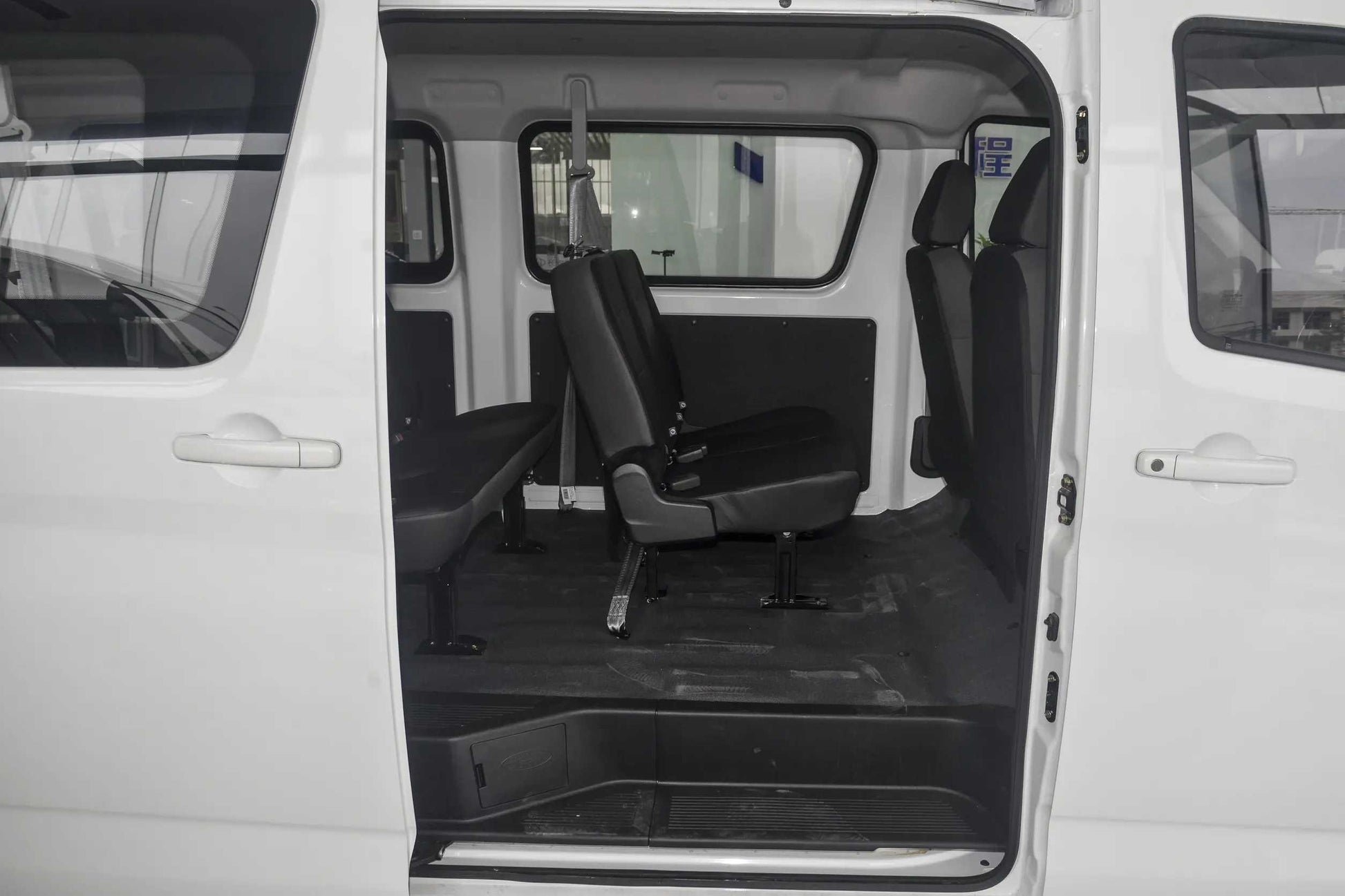

Interior Features
Seating Configuration: 2-seater (standard)

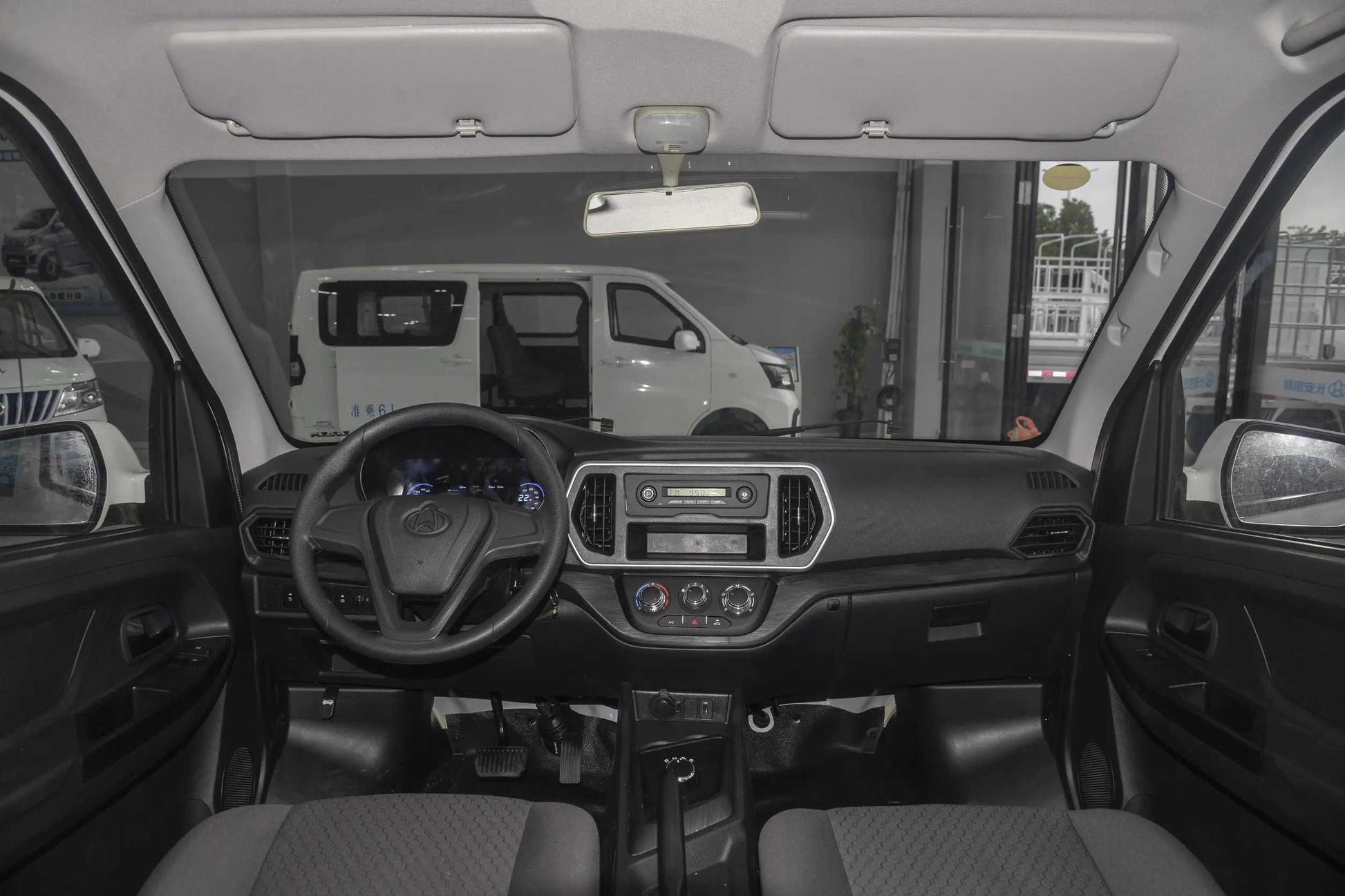

Instrument Cluster: 7-inch digital display
Infotainment:
8-inch touchscreen
Bluetooth connectivity
Smartphone mirroring
Comfort Features:
Manual air conditioning
Height-adjustable driver seat
Multiple storage compartments
Connectivity:
4G connectivity
Remote vehicle monitoring
OTA update capability
Safety Features
Active Safety:
ABS + EBD
Electronic Stability Control (ESC)
Hill Start Assist
Passive Safety:
Reinforced safety cage
High-strength steel structure
Battery protection system
Battery Safety:
IP67 protection rating
Battery management system
Thermal runaway protection
Technical Specifications
Charging Interface: GB/T (China standard)
Turning Radius: 5.8 m
Wading Depth: 300 mm
Service Brake: Hydraulic with vacuum booster
Smart Features
Driver Assistance:
Reverse camera
Parking sensors (rear)
Speed limit warning
Convenience Features:
Remote climate control
Battery pre-conditioning
Charge scheduling
Certification & Compliance
Emissions: Zero emissions
Safety Rating: 4-star C-NCAP commercial vehicle
Noise Level: 65 dB @ 60 km/h
Homologation: China new energy vehicle certification
Target Applications
Urban parcel delivery
E-commerce logistics
Service and maintenance
Food and beverage distribution
Municipal services
Warranty Coverage
Vehicle: 3 years/120,000 km
Battery: 8 years/400,000 km
Motor: 5 years/200,000 km
Charger: 3 years/100,000 km
