Basic Information

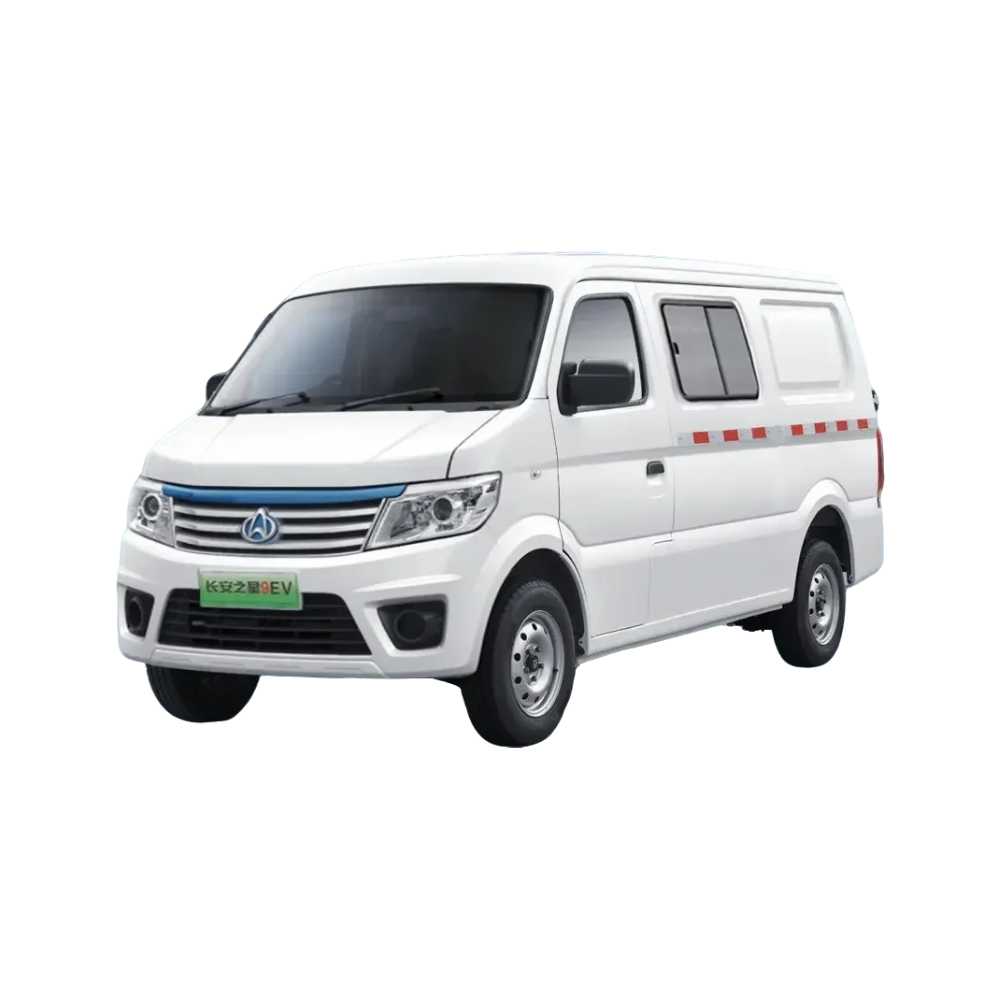

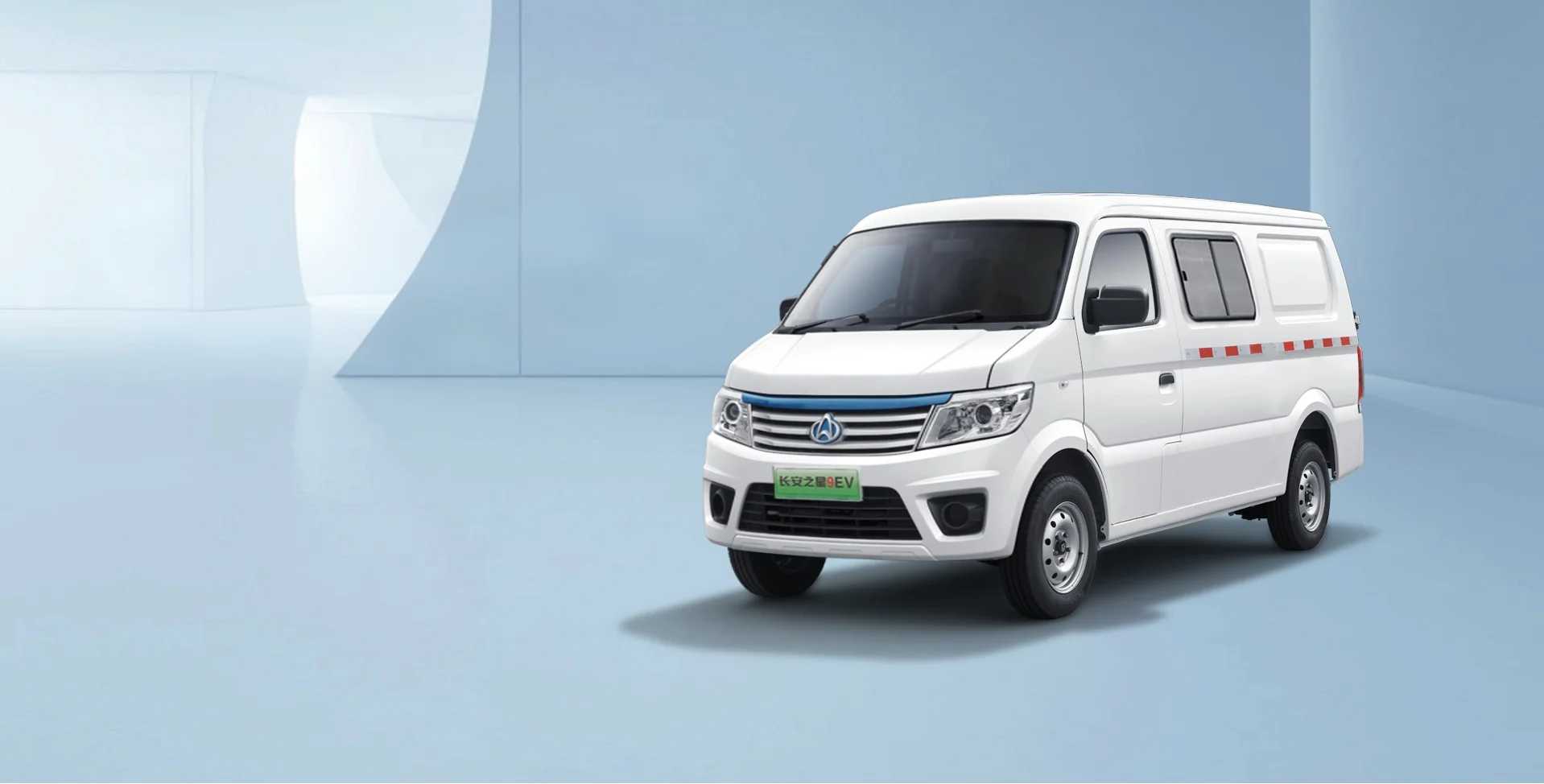

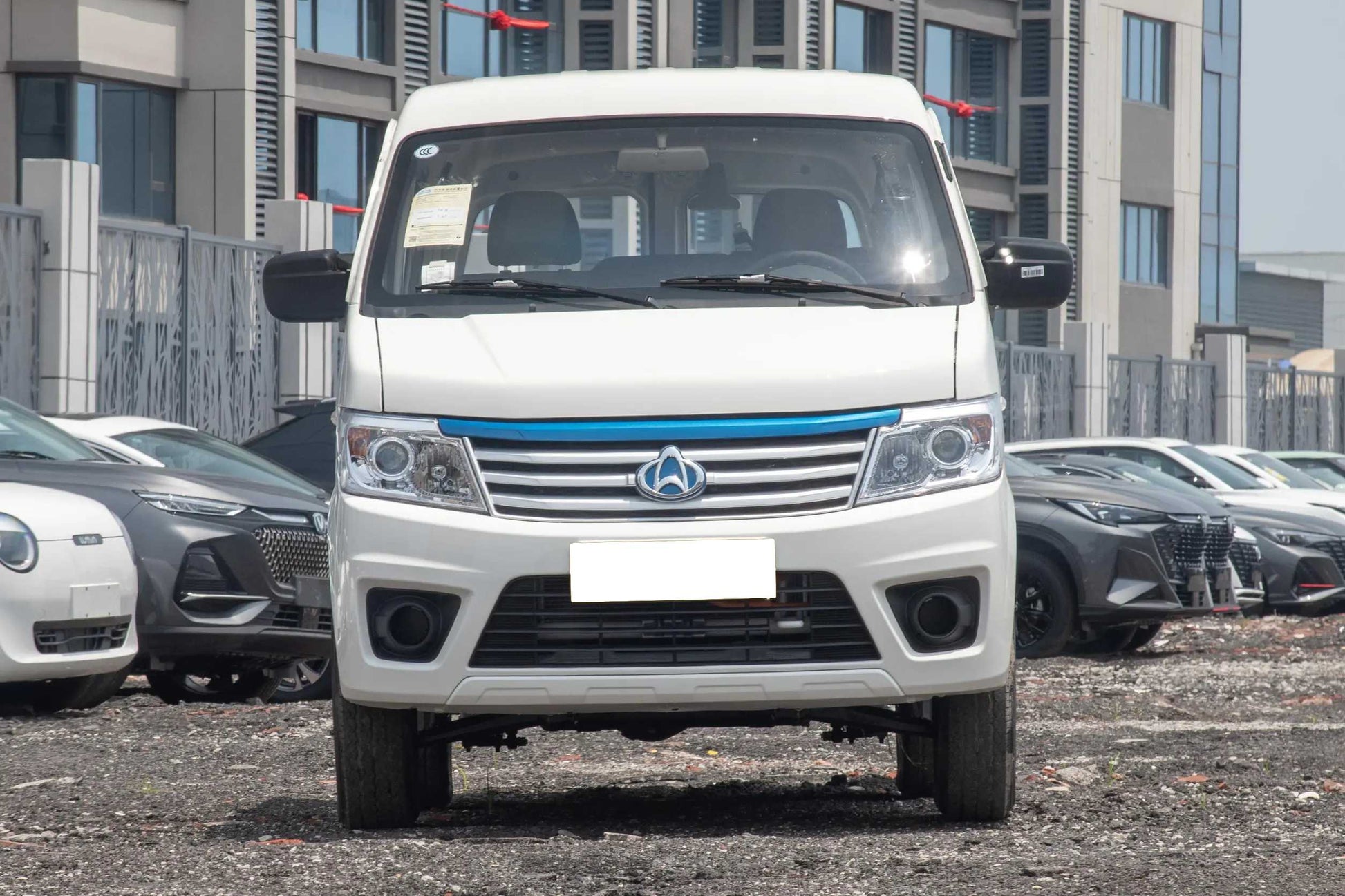

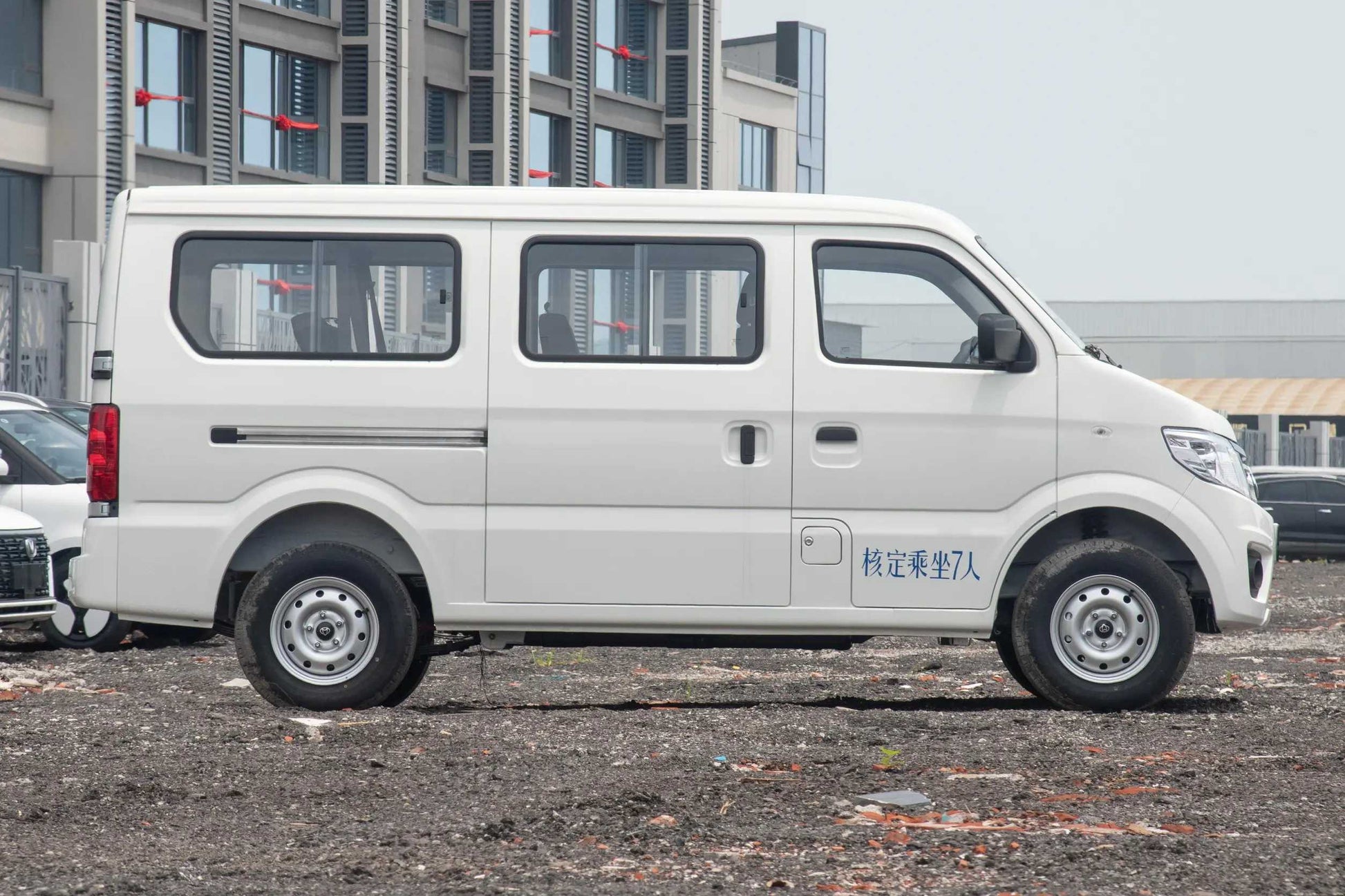

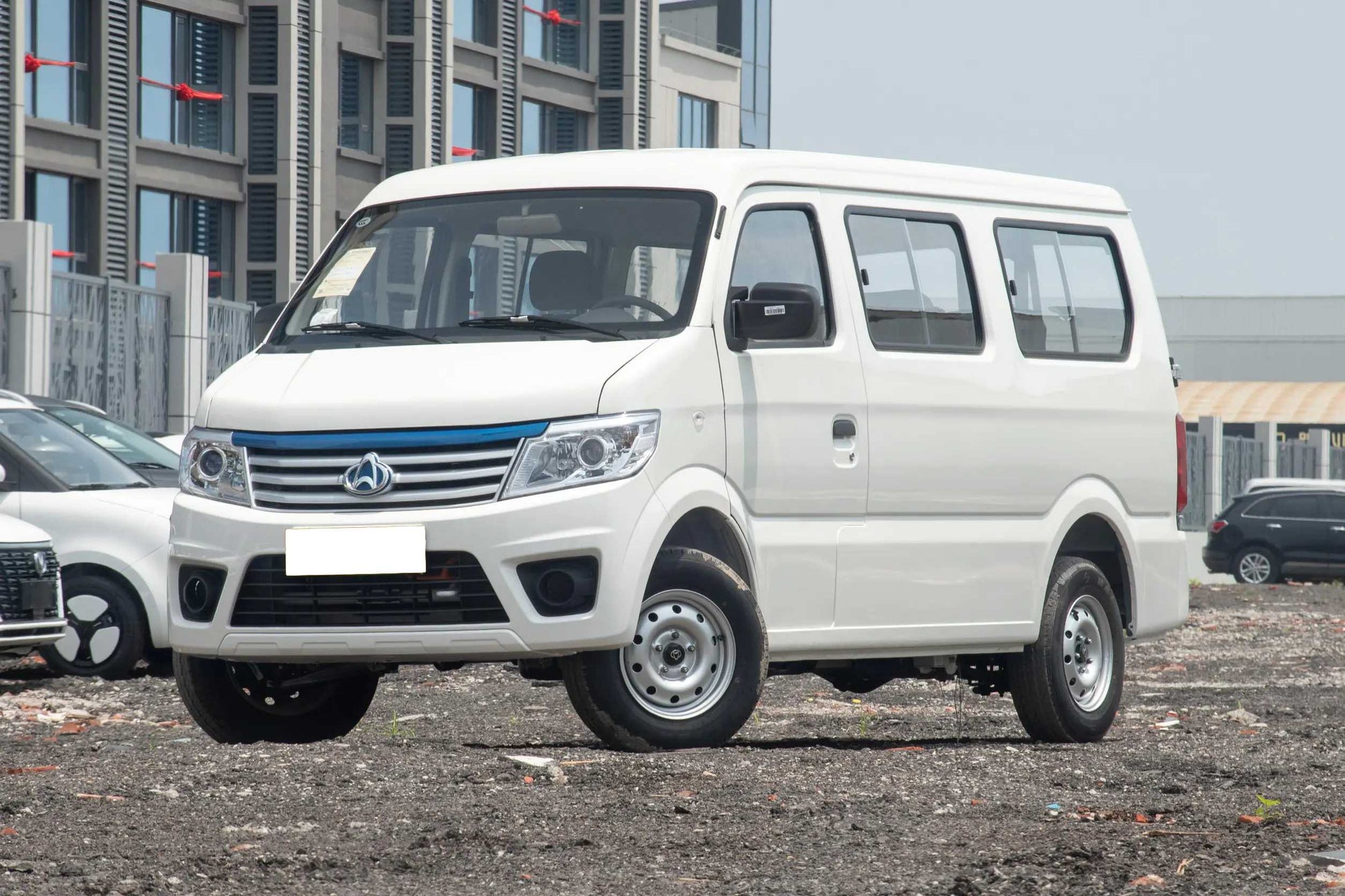

Model: Changan Star 9EV (长安之星9EV)
Category: All-Electric Mini Commercial Van
Manufacturer: Changan Automobile
Market Position: Compact urban electric delivery vehicle
Launch Year: 2023
Dimensions & Weight
Length × Width × Height: 4430×1685×1850 mm
Wheelbase: 2800 mm
Front/Rear Track: 1420/1430 mm
Curb Weight: 1450 kg
Gross Vehicle Weight: 2400 kg
Max Payload: 950 kg
Ground Clearance: 150 mm
Electric Powertrain
Motor Type: Permanent Magnet Synchronous Motor
Max Power: 60 kW
Peak Torque: 200 N·m
Transmission: Single-speed fixed ratio
Drive Type: Rear-wheel drive
Battery & Charging
Battery Type: Lithium Iron Phosphate (LFP)
Battery Capacity: 41.86 kWh
Range (CLTC): 260 km
Energy Consumption: 15.2 kWh/100 km
Charging Time:
DC Fast Charge: 30%-80% in 40 minutes
AC Slow Charge: 0-100% in 7 hours
Battery Warranty: 8 years/300,000 km
Performance
Max Speed: 100 km/h (electronically limited)
0-50 km/h Acceleration: 8.0 seconds
Gradeability: 20%
Recuperation: Regenerative braking system
Chassis & Suspension
Suspension:
Front: MacPherson strut
Rear: Leaf spring with hydraulic shock absorbers
Braking System:
Front: Ventilated discs
Rear: Drum brakes
Steering: Electric power steering
Tire Size: 175/70 R14

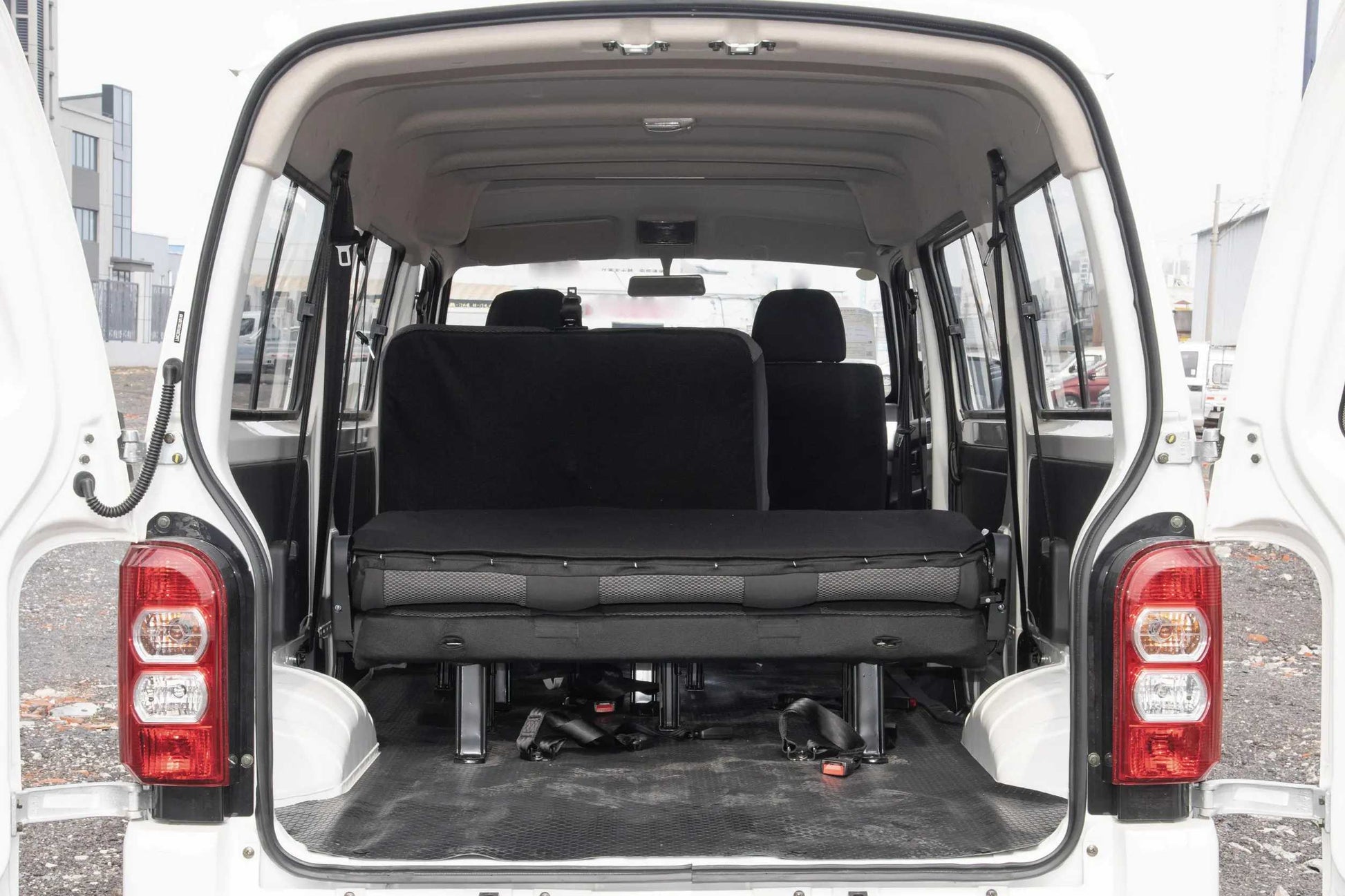

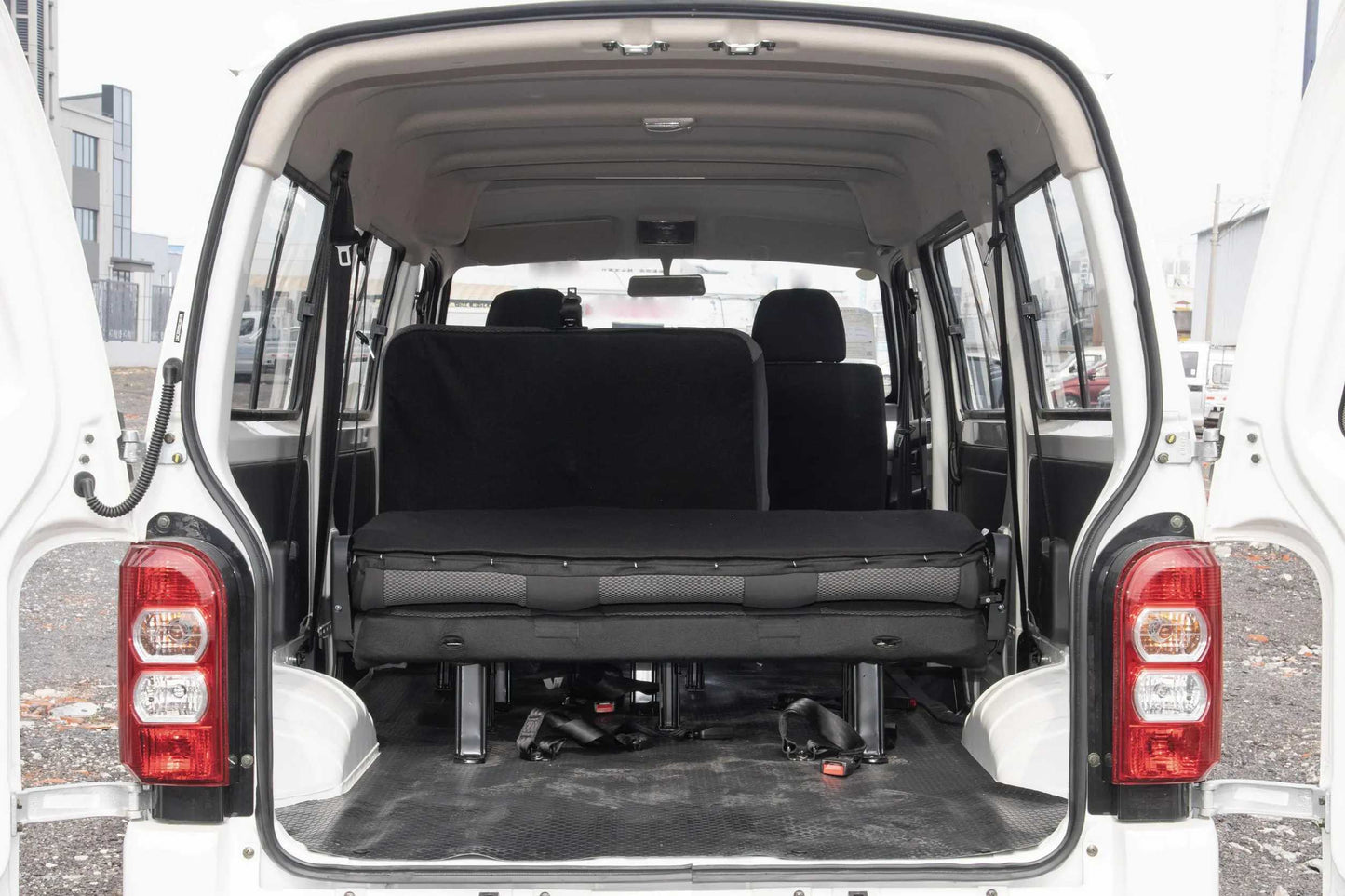

Cargo Capacity
Cargo Volume: 4.8 m³
Cargo Dimensions: 2500×1450×1280 mm

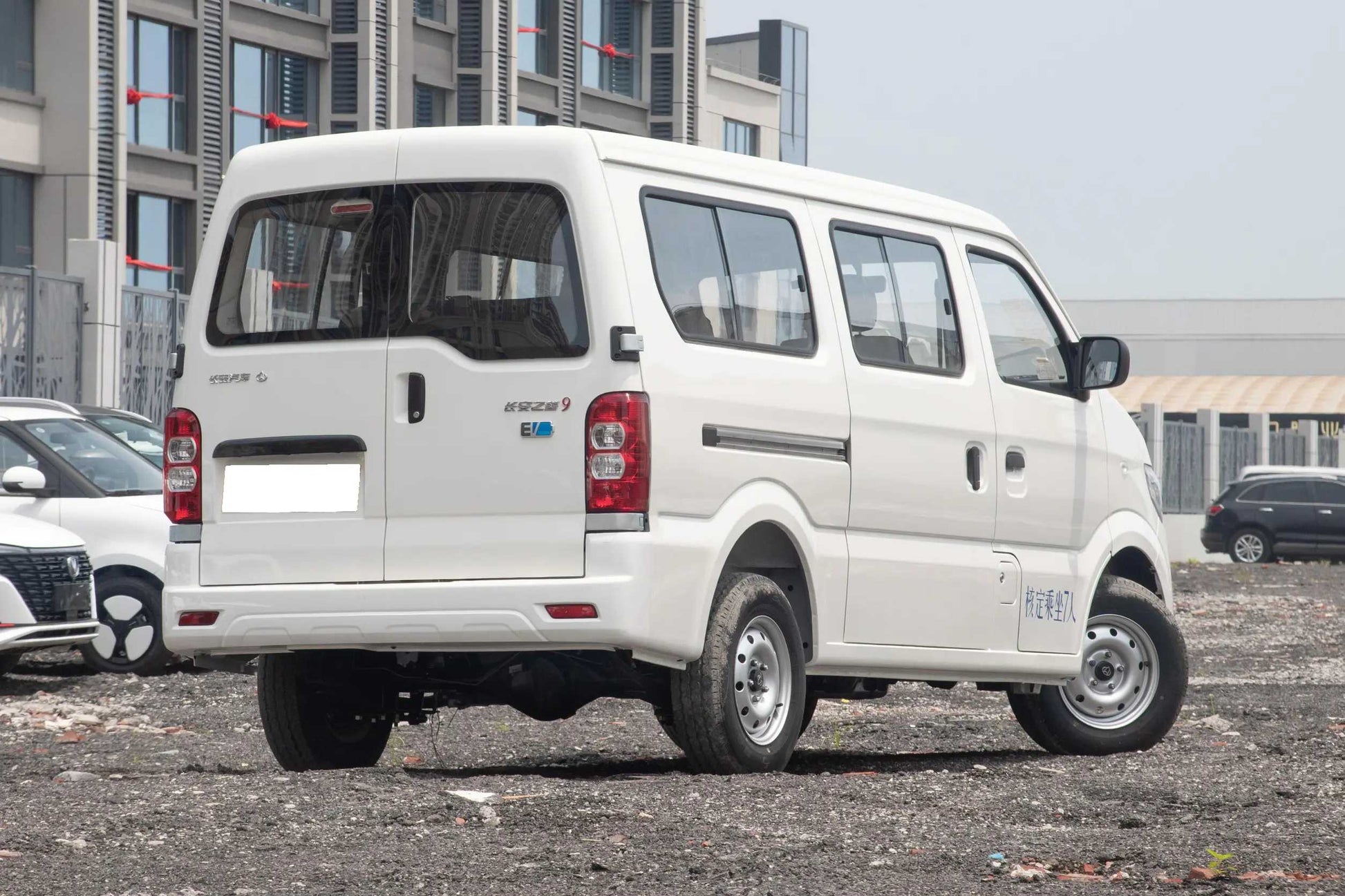

Rear Door Opening:
Width: 1150 mm
Height: 1200 mm
Loading Height: 560 mm
Payload Distribution: Optimized for urban delivery

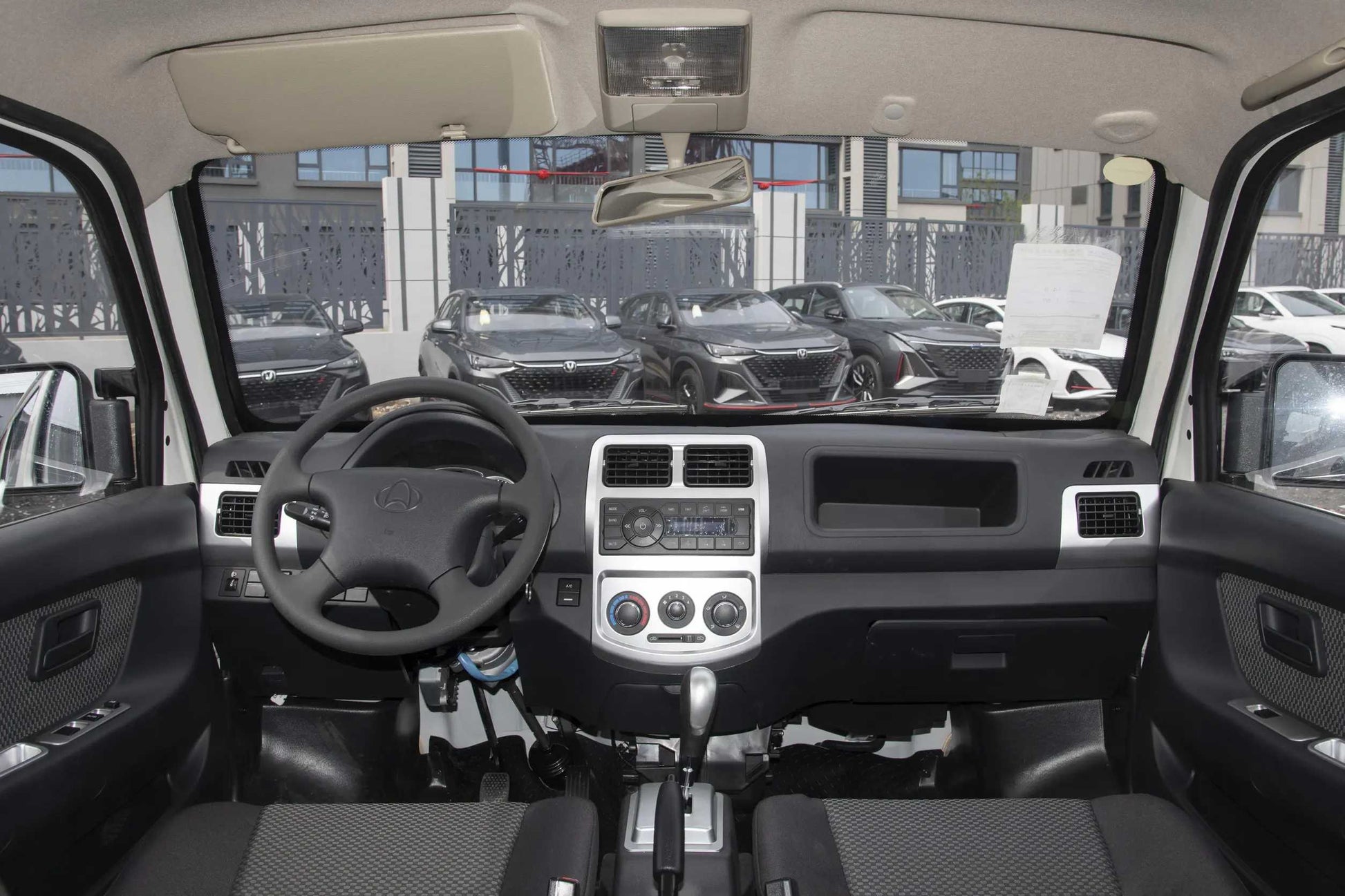

Interior Features

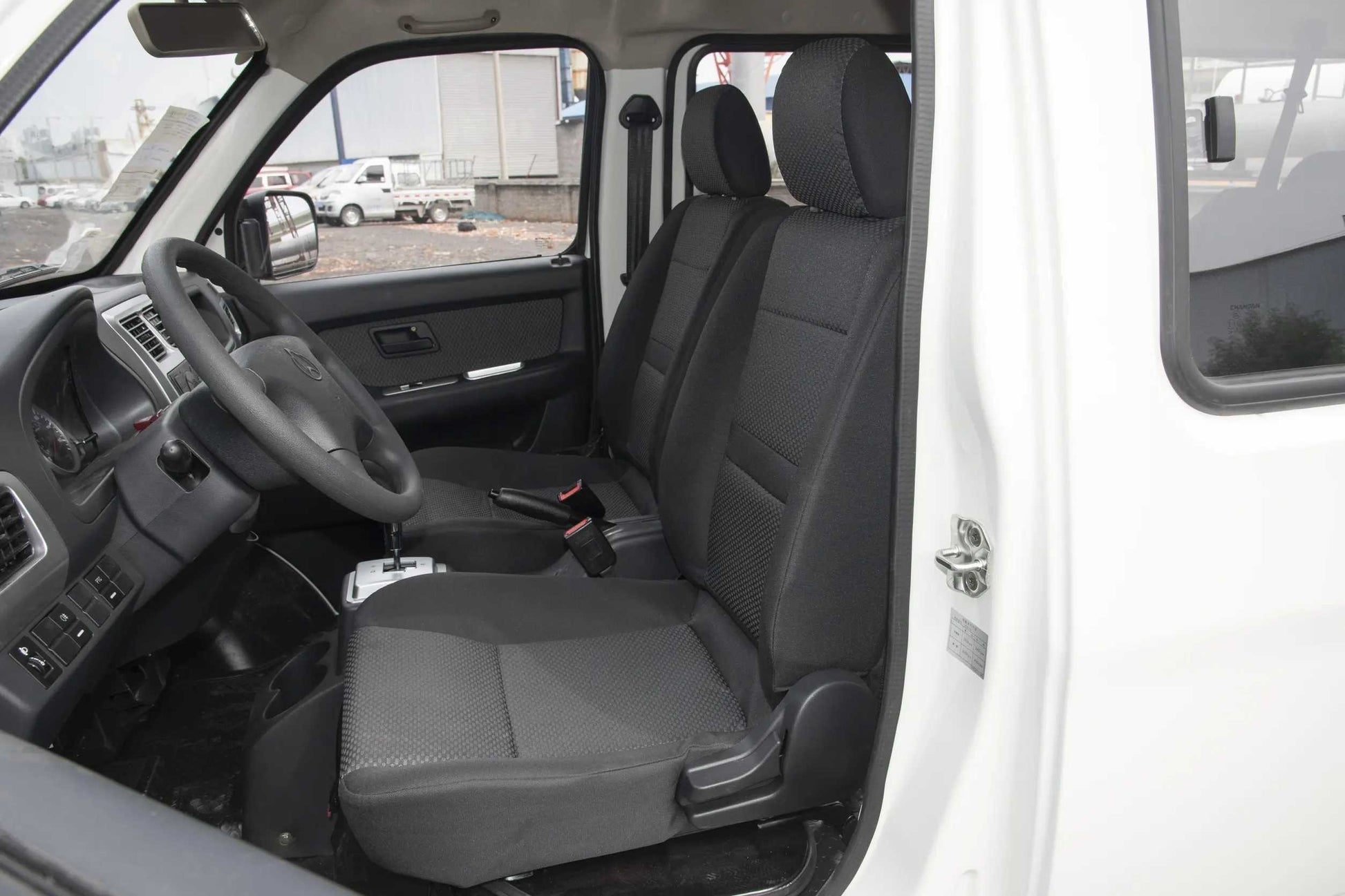

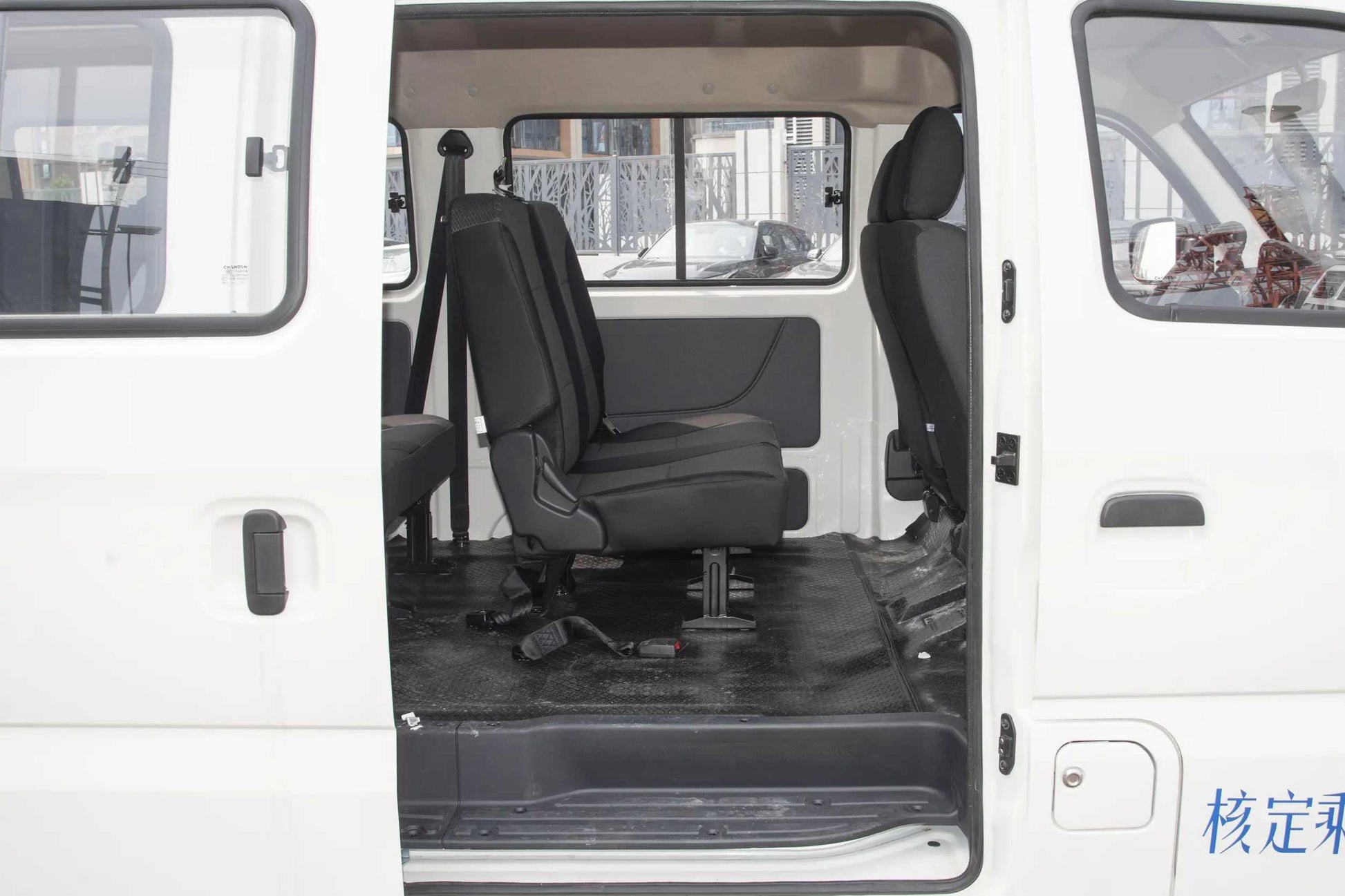

Seating Configuration: 2-seater (standard), 5-seater (optional)
Instrument Cluster: Digital LCD display
Basic Features:
Manual air conditioning
AM/FM radio with USB
12V power outlet
Storage: Practical storage compartments
Safety Features
Standard Safety:
ABS + EBD
Driver airbag
Reinforced safety structure
Battery Safety:
IP67 battery protection
Battery management system
Overcharge protection
Additional Safety:
High-voltage system protection
Emergency cut-off switch
Technical Specifications
Charging Standard: GB/T 20234
Turning Radius: 5.2 m
Wading Depth: 250 mm
Service Brake: Hydraulic dual-circuit
Smart Features
Basic Connectivity:
Battery status monitoring
Charging status display
Convenience Features:
Remote door locking
Battery pre-heating (cold weather)
Certification & Compliance
Emissions: Zero emissions
Safety Standards: Meets China EV safety regulations
Noise Level: 62 dB @ 60 km/h
Certification: New energy vehicle approved
Operational Economy
Electricity Cost: Approximately ¥0.13/km
Maintenance Cost: 50% lower than fuel version
Service Interval: 15,000 km
Target Applications
Urban small package delivery
Food and beverage transport
Service and repair vehicles
Retail goods distribution
Municipal utility services
Warranty Coverage
Whole Vehicle: 3 years/100,000 km
Battery System: 8 years/300,000 km
Electric Motor: 5 years/150,000 km
