Basic Information
Model: Changan Star 5 (长安之星5)
Category: Mini Commercial Van
Manufacturer: Changan Automobile
Market Positioning: Entry-level commercial transport and utility vehicle
Dimensions & Weight
Length × Width × Height: 3980×1600×1890 mm
Wheelbase: 2560 mm
Front Track: 1385 mm
Rear Track: 1405 mm
Curb Weight: 1010 kg
Gross Vehicle Weight: 1835 kg
Max Payload: 825 kg
Powertrain & Performance
Engine:
Type: 1.4L 4-cylinder gasoline (JL473Q)
Displacement: 1398 cc
Max Power: 76 kW @ 6000 rpm
Max Torque: 135 N·m @ 3500-4500 rpm
Transmission: 5-speed manual
Fuel Consumption: 6.8 L/100 km (combined)
Top Speed: 145 km/h
Chassis & Suspension
Suspension:
Front: MacPherson independent suspension
Rear: Leaf spring suspension
Braking System:
Front: Ventilated discs
Rear: Drum brakes
Steering: Hydraulic power steering
Tire Size: 175/70 R14

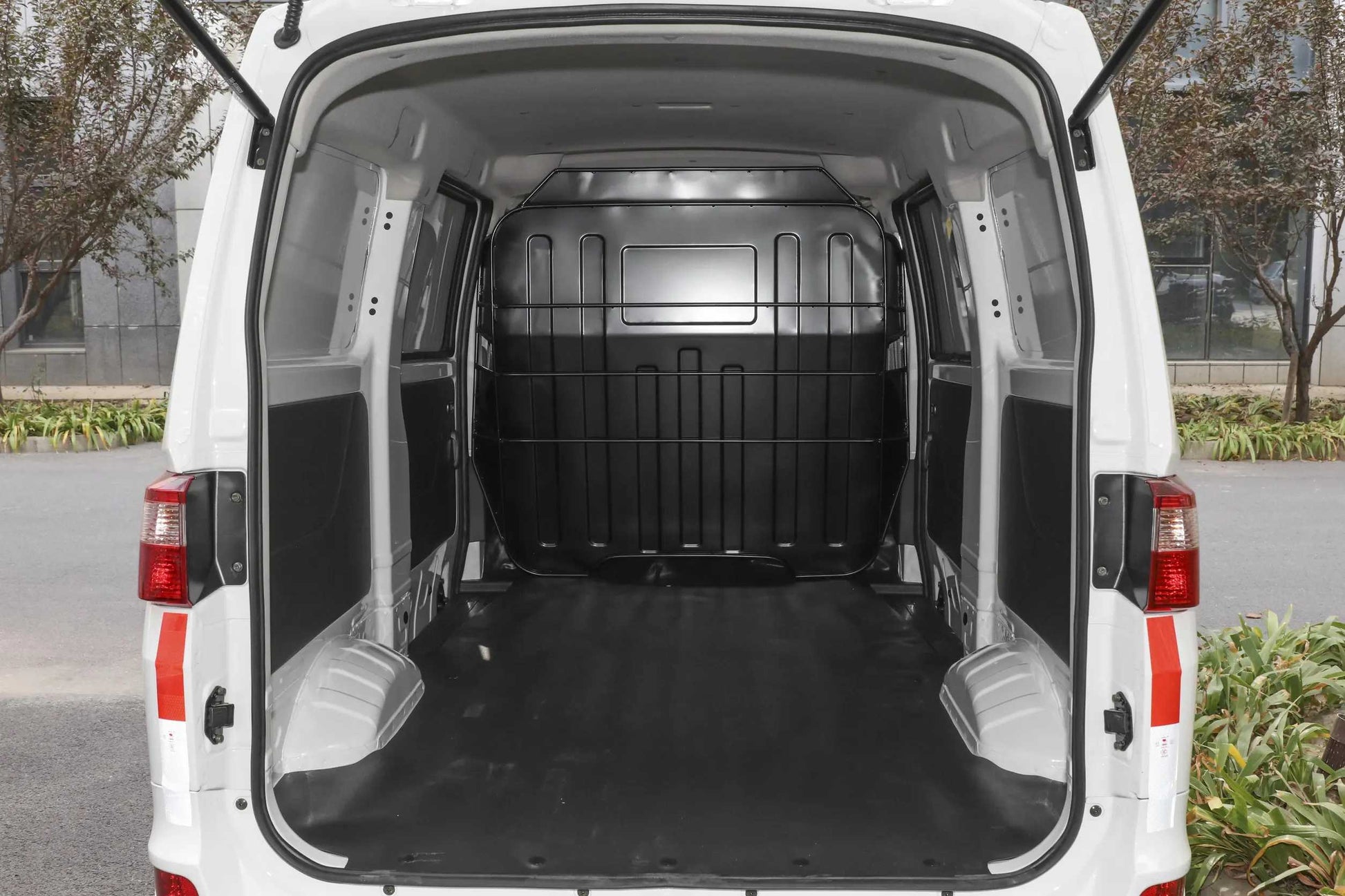

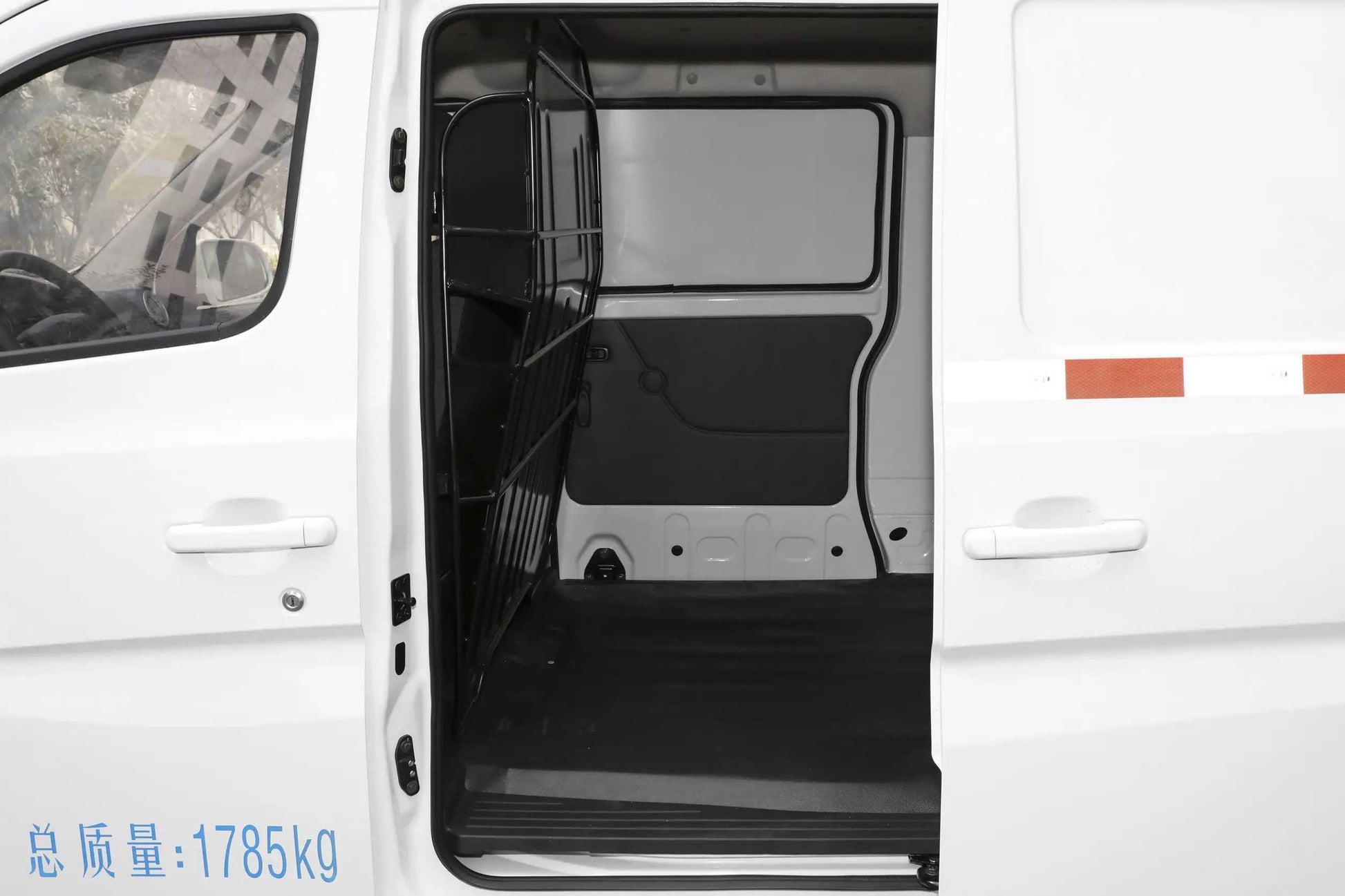

Cargo Capacity
Cargo Volume: 3.8 m³
Cargo Dimensions (L×W×H): 2300×1410×1250 mm

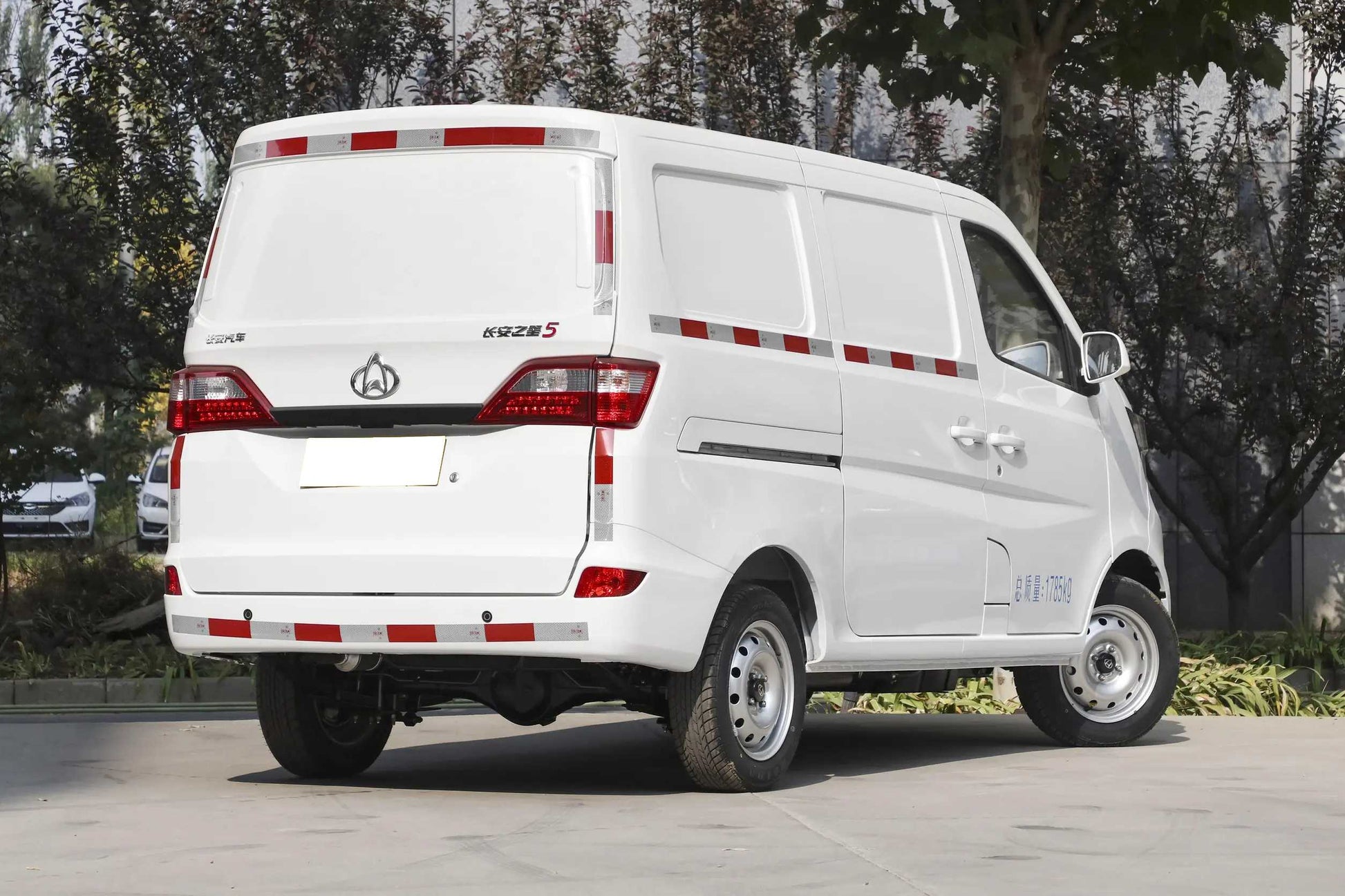

Rear Door Opening:
Width: 1180 mm
Height: 1180 mm
Loading Height: 540 mm

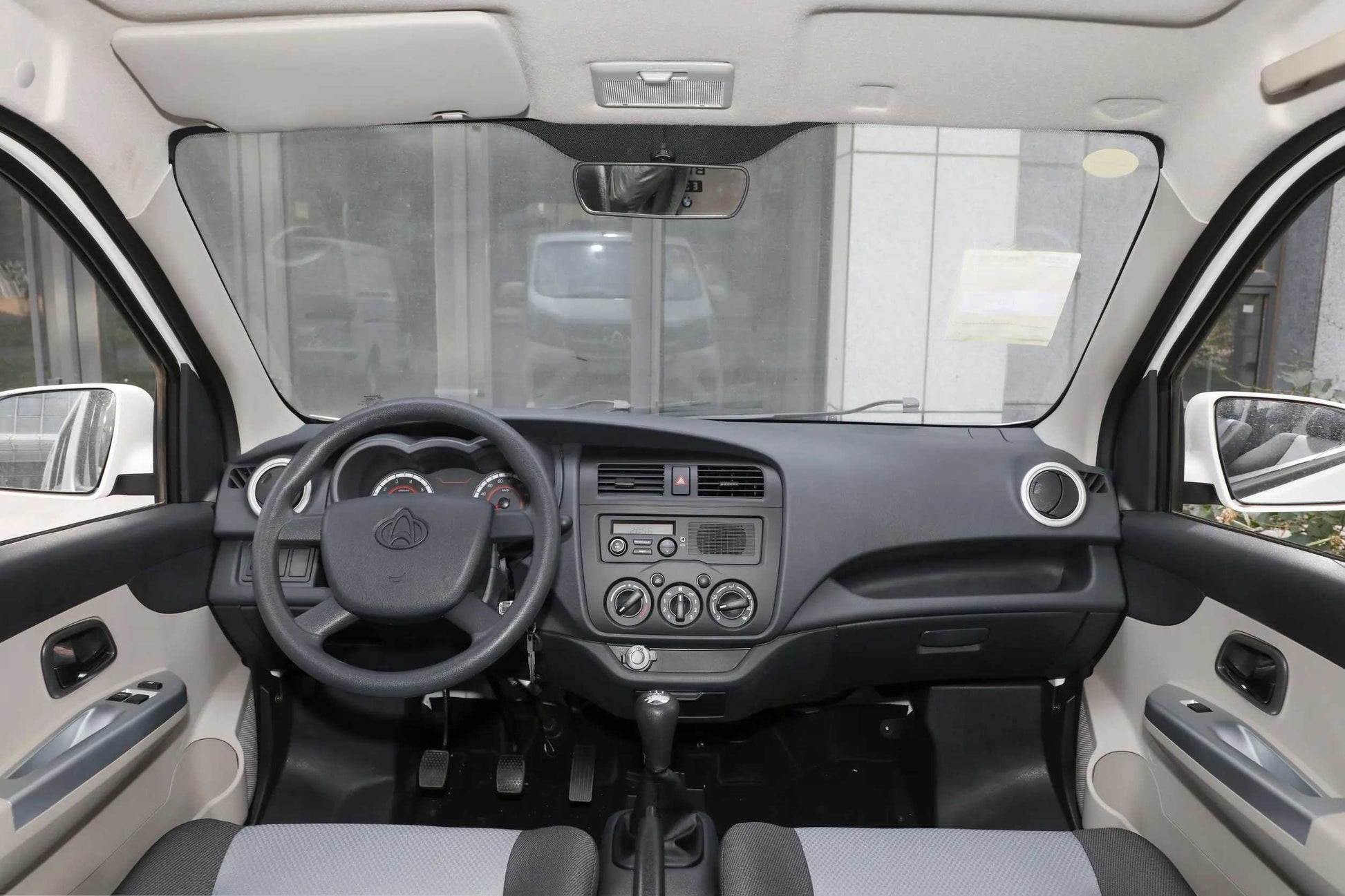

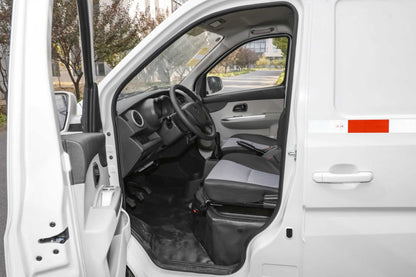

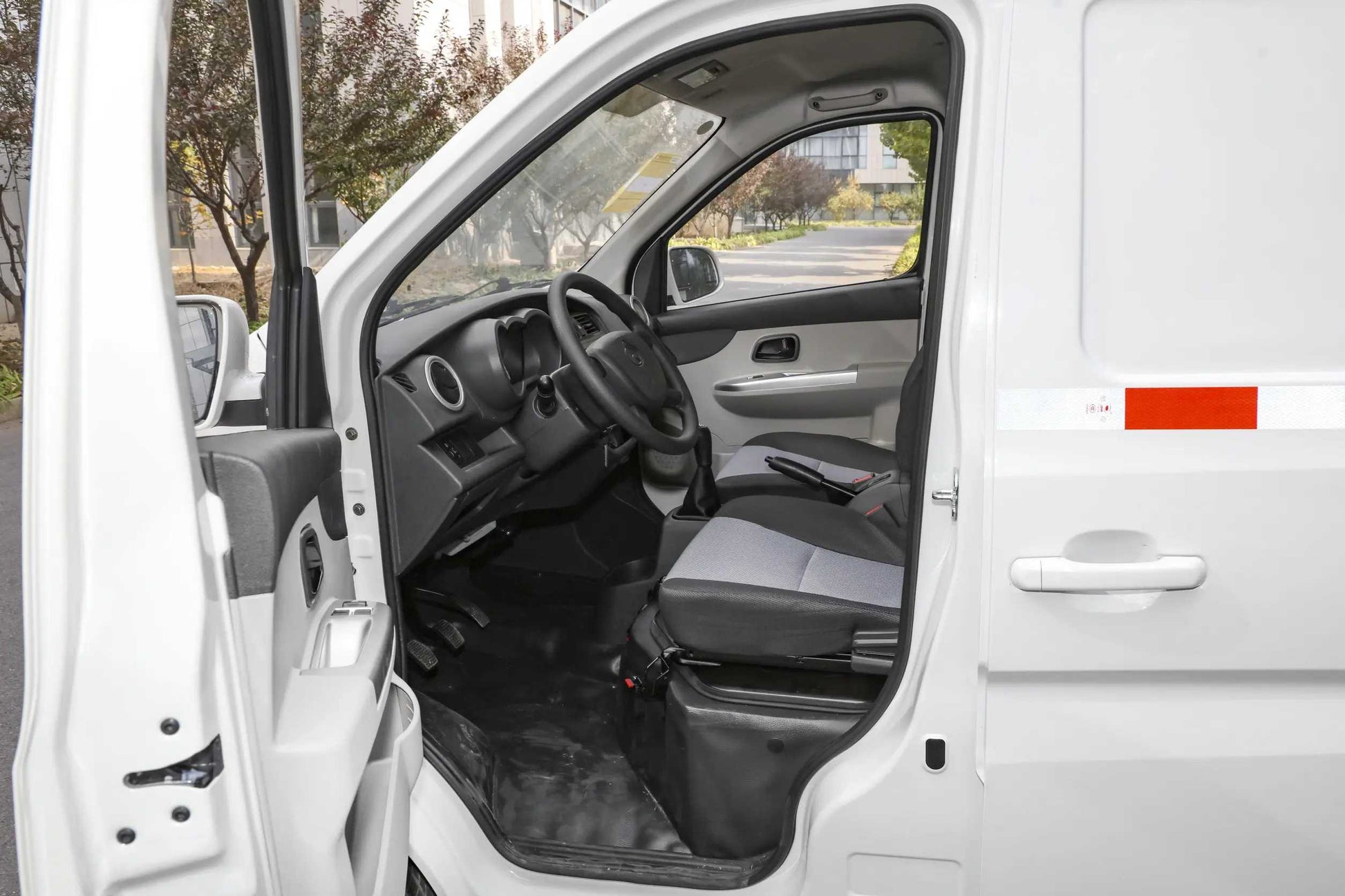

Interior Features
Seating: 2/5/7/8 seat configurations
Instrument Panel: Analog gauges with digital odometer
Basic Features:
Manual air conditioning
AM/FM radio with USB
12V power outlet
Storage: Basic door pockets and glove box
Safety Features
Standard Safety:
Driver airbag (optional passenger airbag)
ABS + EBD
Front seatbelt pretensioners
Structural Safety:
Reinforced front crumple zone
Side impact protection
Technical Specifications
Fuel Tank Capacity: 40 L
Minimum Turning Radius: 4.8 m
Max Gradient: 28%
Warranty: 3 years/80,000 km
Standard Equipment
Black plastic bumpers
Steel wheels with full wheel covers
Manual windows
Black door handles
Halogen headlights
Optional Features
Passenger airbag
Central locking
Power windows (front)
Rear parking sensors
Roof rack
Certification & Compliance
China National VI Emission Standard
Mini Commercial Vehicle Certification
Meets basic safety standards
Key Features
Economical operation and maintenance
Compact size for urban maneuverability
Reliable 1.4L engine
Basic but functional interior
Target Applications
Small business deliveries
Urban logistics
Service and maintenance vehicles
Rural area transport
Entry-level commercial use
Service Intervals
Oil change: 5,000 km
Regular maintenance: 10,000 km
Air filter: 20,000 km
Spark plugs: 30,000 km
